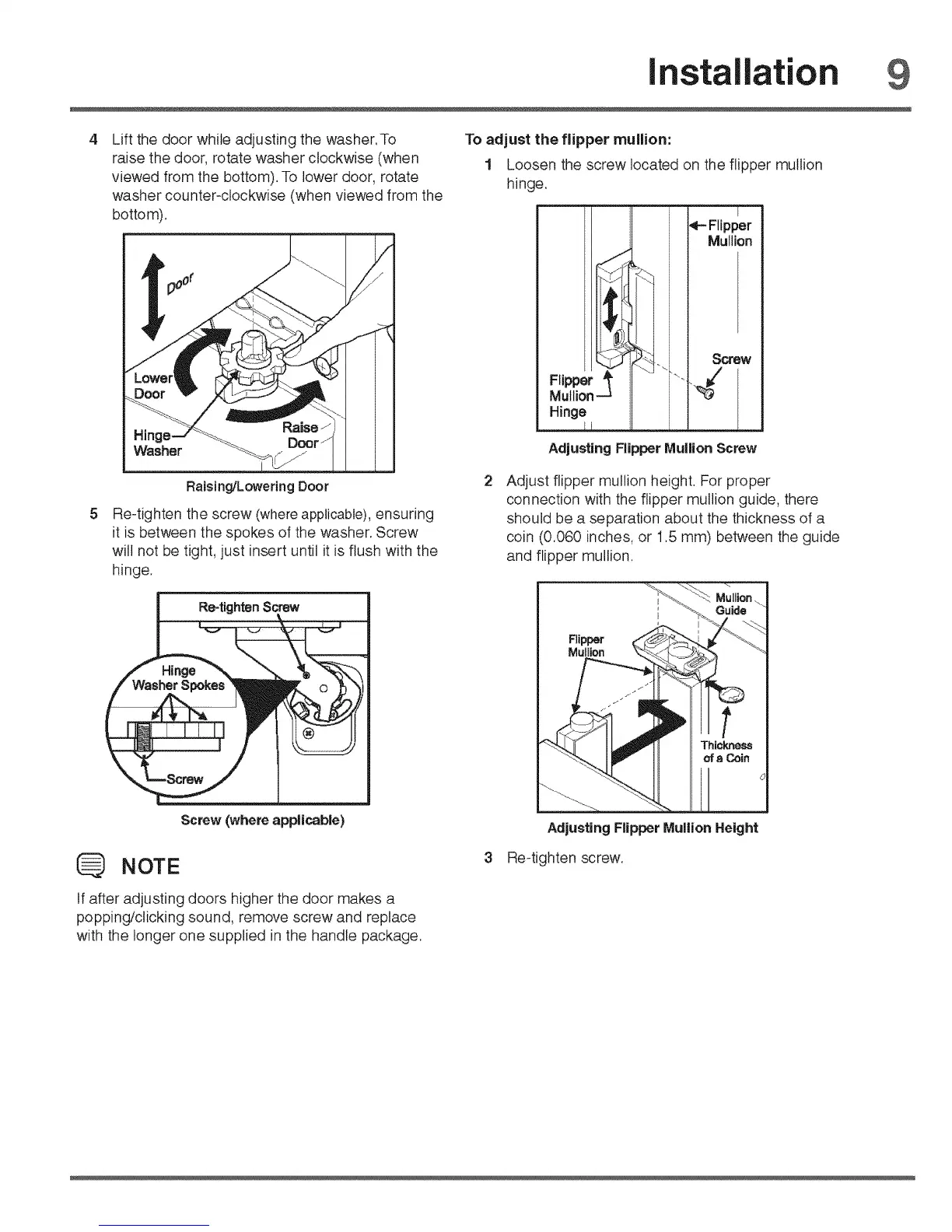

installation 9
Lift the door while adjusting the washer.To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from the
bottom).
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mullion
hinge.
m m _
J
Flipper '
Mullion-
Hinge
F_ .....
T
,_- Flipper
Mullion
Screw
Adjusting Flipper Mullion Screw
Raising/Lowering Door
Re-tighten the screw (where applicable), ensuring
it is between the spokes of the washer. Screw
will not be tight, just insert until it is flush with the
hinge.
2
Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Re-tighten Screw
Flipper
Mullion
Thickness
of a Coin
Screw (where applicable)
NOTE
tf after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
3
AdjustingFlipper MullionHeight
Re-tighten screw.
