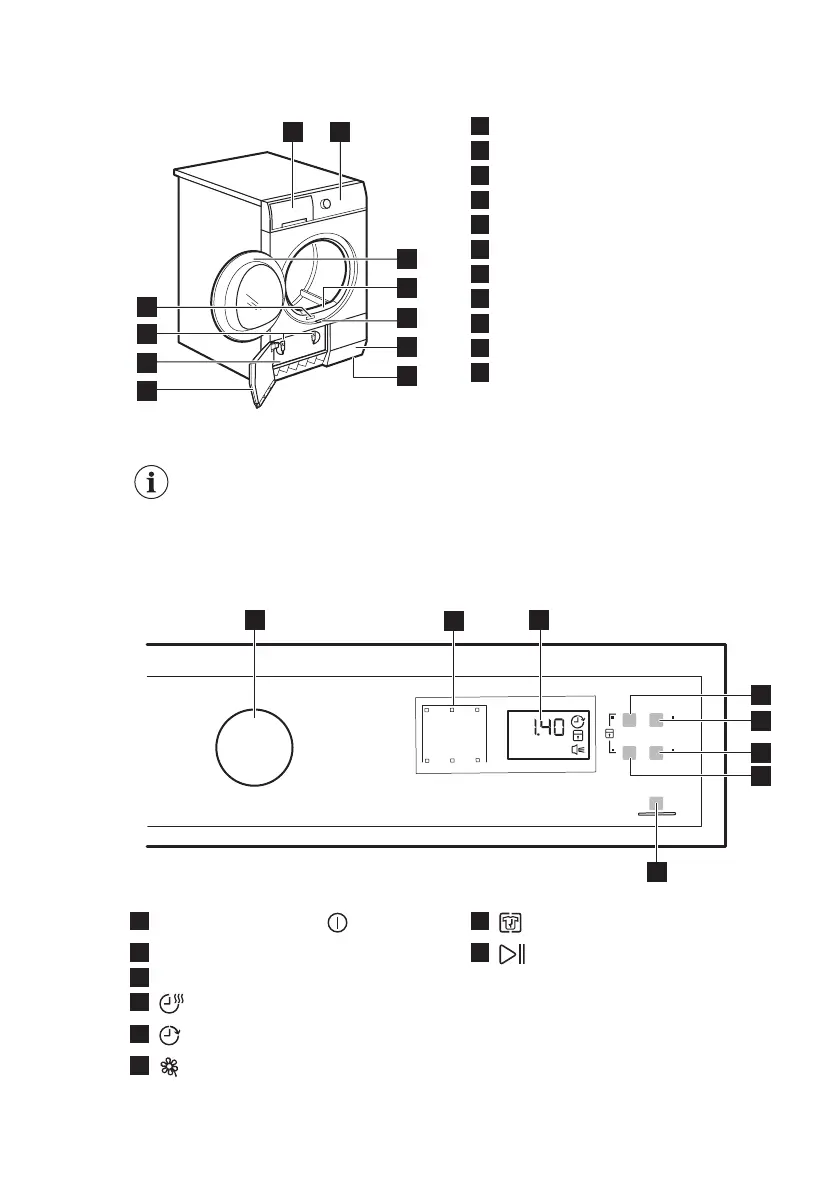

3. PRODUCT DESCRIPTION
1 2
6
3
4
5
8
9
10
11
7
1
Water container
2
Control panel
3
Appliance door
4
Primary Filter
5
Button for condenser door
6
Airflow slots
7
Adjustable feet
8
Condenser door
9
Condenser cover
10
Locks for condenser lid
11
Rating plate
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
4. CONTROL PANEL
1
8
4
7
6
5
3
2
1
Programme knob and OFF switch
2
Indicators
3
Display
4
Time Dry touchpad
5
Delay Start touchpad
6
Delicates touchpad
7
Extra Anticrease touchpad
8
Start/Pause touchpad
ENGLISH 7
