d) Counter-magnet (6)
The appliance is pre-arranged for a magnetic closure
of the door. To enable a correct operation of this
device, it is necessary to screw the counter-magnet
(6) (steel disk + rubber ring) into the inner side of the
door.

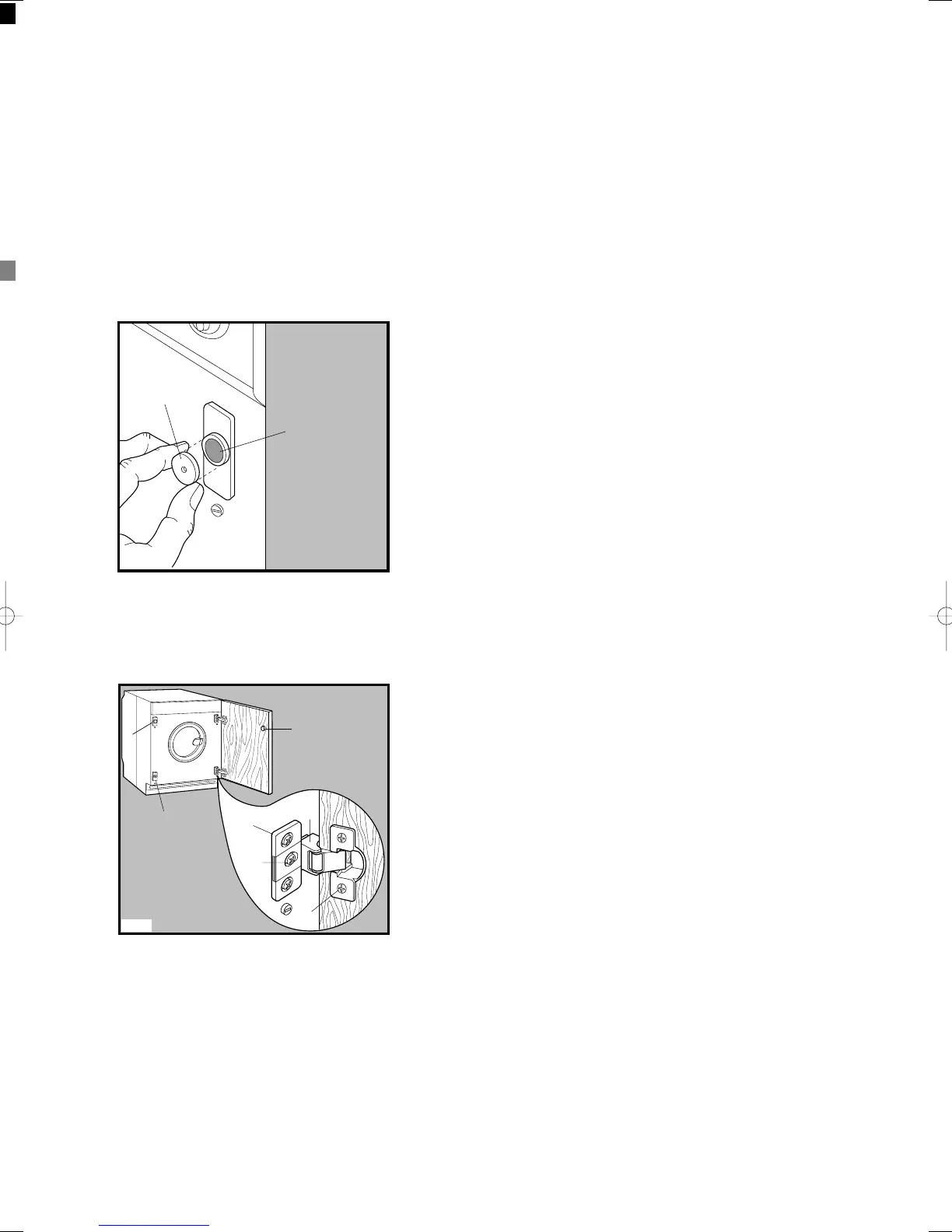

Its position must correspond to the magnet (4) on the
appliance (see picture D).
If the door has to be opened from left to right, invert
the position of the plates (5 and 7) and the magnet
(4) (Fig. B and E). Mount the countermagnet (6) and
the hinges (1) as previously described.
When the appliance is installed the power supply
cable must be easily accessible.
