2. INSTALLATION
2.

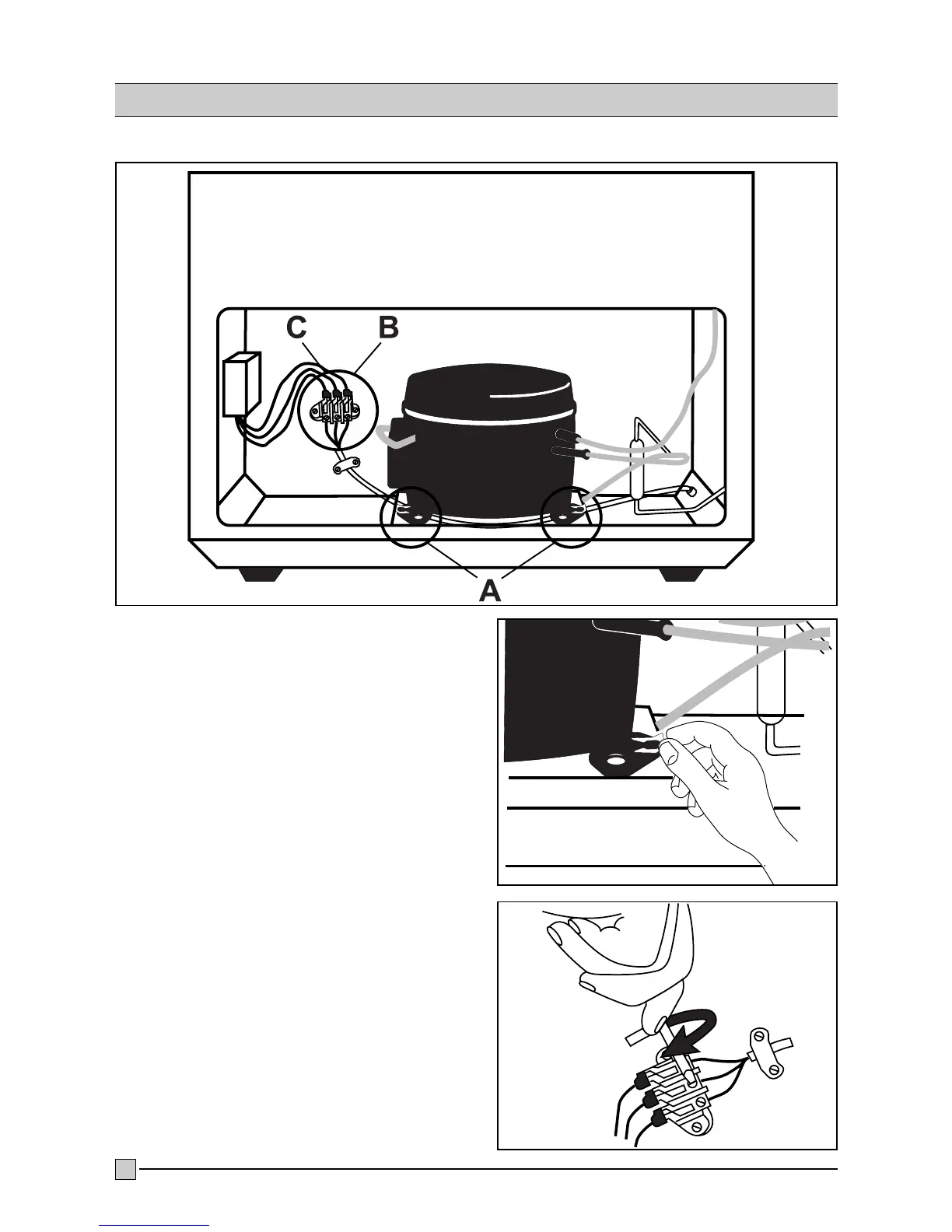

EXAMINE the compressor compartment (fig. 3).
Check carefully for any damage, dislocation or
looseness etc. of the components, specially at
locations A, B and C as below and rectify if necessary.
LOCATION A (fig. 4)
Check that all 4 mounting brackets of the compressor
are in place and secured.
LOCATION B (fig 5)
Check that the incoming electrical connections of the
power supply cord to the terminal strip are tight.
Fig 3.
Fig 4.
Fig 5.
