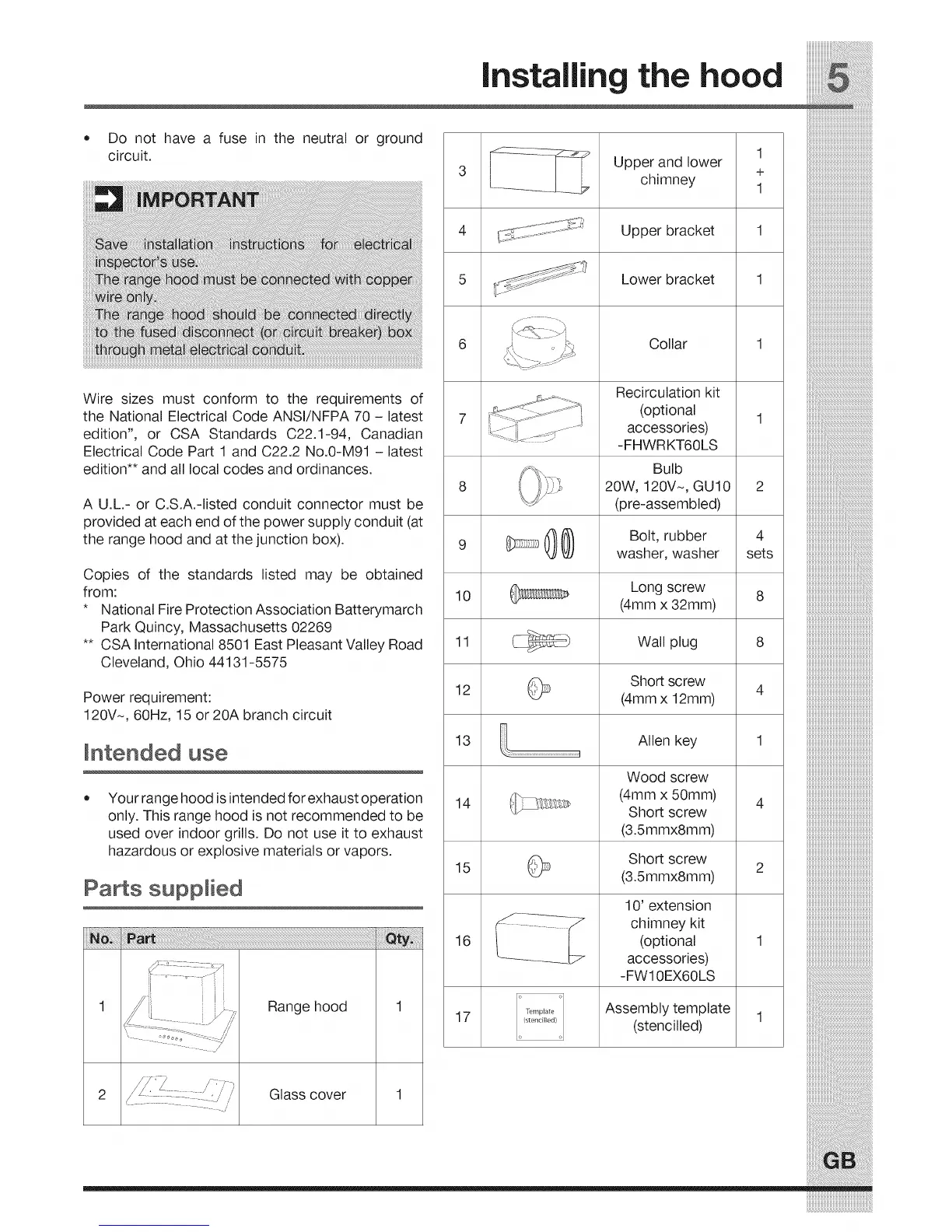

Installing the hood
• Do not have a fuse in the neutral or ground
circuit.
Wire sizes must conform to the requirements of
the National Electrical Code ANSI/NFPA 70 - latest
edition", or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No.0-M91 -latest
edition** and all local codes and ordinances.
A U.L- or C.S.A.-listed conduit connector must be
provided at each end of the power supply conduit (at
the range hood and at the junction box).
Copies of the standards listed may be obtained
from:
* National Fire Protection Association Batterymarch
Park Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
Power requirement:
120V-, 60Hz, 15 or 20A branch circuit
Intended use
Your range hood isintended for exhaust operation
only. This range hood is not recommended to be
used over indoor grills. Do not use it to exhaust
hazardous or explosive materials or vapors.
Parts supplied
Range hood
3
4
5
6
7
1
Upper and lower
+
chimney 1
Upper bracket 1
Lower bracket 1
Collar
Recirculation kit
(optional
accessories)
-FHWRKT60LS
Bulb
8 20W, 120Vm GU10 2
(pre-assembled)
__ Bolt, rubber 4
9
washer, washer sets
10 Long screw 8
(4mm x 32mm)
11 Wall plug 8
12
Short
screw
(4mm x 12mm) 4
13 Allen key 1
14
15 ®
16
o
I_rnplate
(stencilled)
17
Wood screw
(4mm x 50mm)
Short screw
(3.5mmx8mm)
Short screw
(3.5mmx8mm)
10' extension
chimney kit
(optional
accessories)
-FW10EX60LS
Assembly template
(stencilled)
4
2
2 Glass cover
.............. ..... _j
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
