Flipper
Mullion
Screw
Flipper
Mullion
Hinge

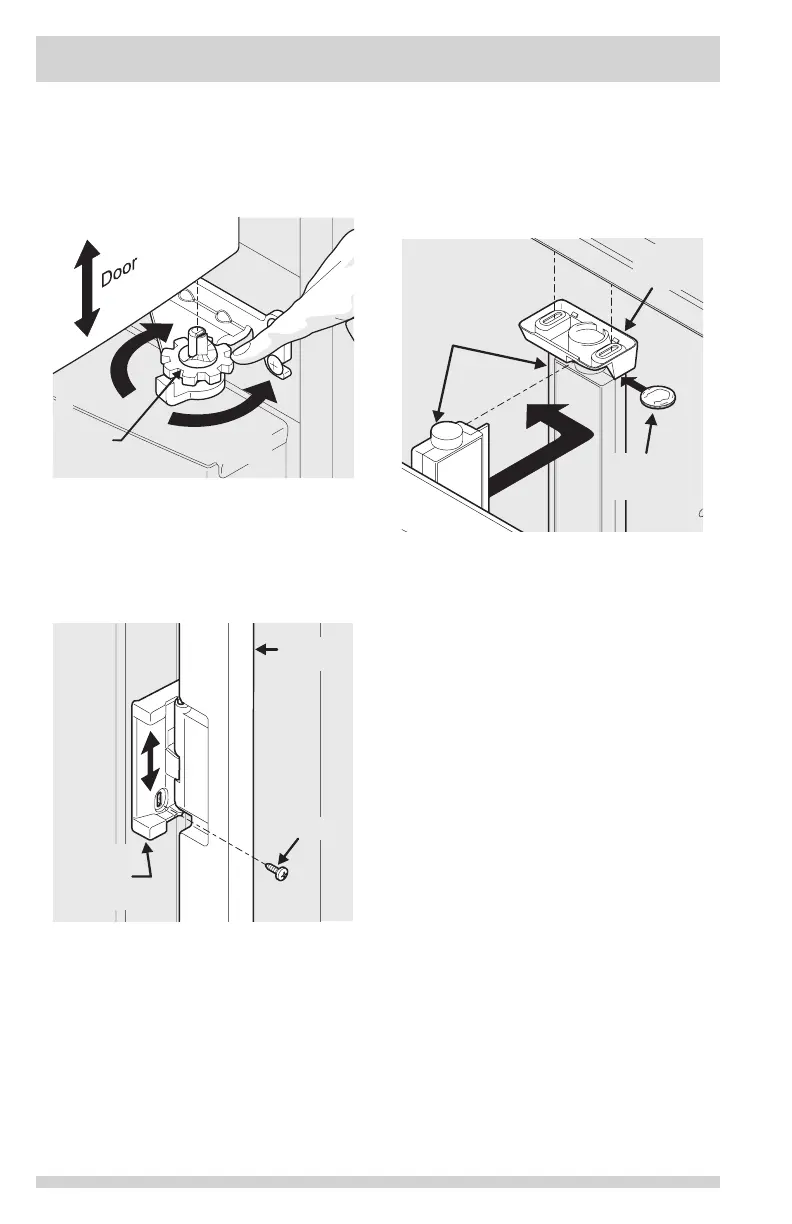

Adjusting Flipper Mullion Screw
To adjust the ipper mullion:
1 Loosen the screw located on the ipper
mullion hinge.
2 Adjust ipper mullion height. For proper
connection with the ipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5 mm) between the guide and ipper
mullion.
3 Re-tighten screw.
3 Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counter-clockwise
(when viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Hinge
Washer
Raise
Door
Lower
Door
Raising/Lowering Door
INSTALLATION
