Notice Date Page
01405013
INSTRUCTION
HANDBOOK

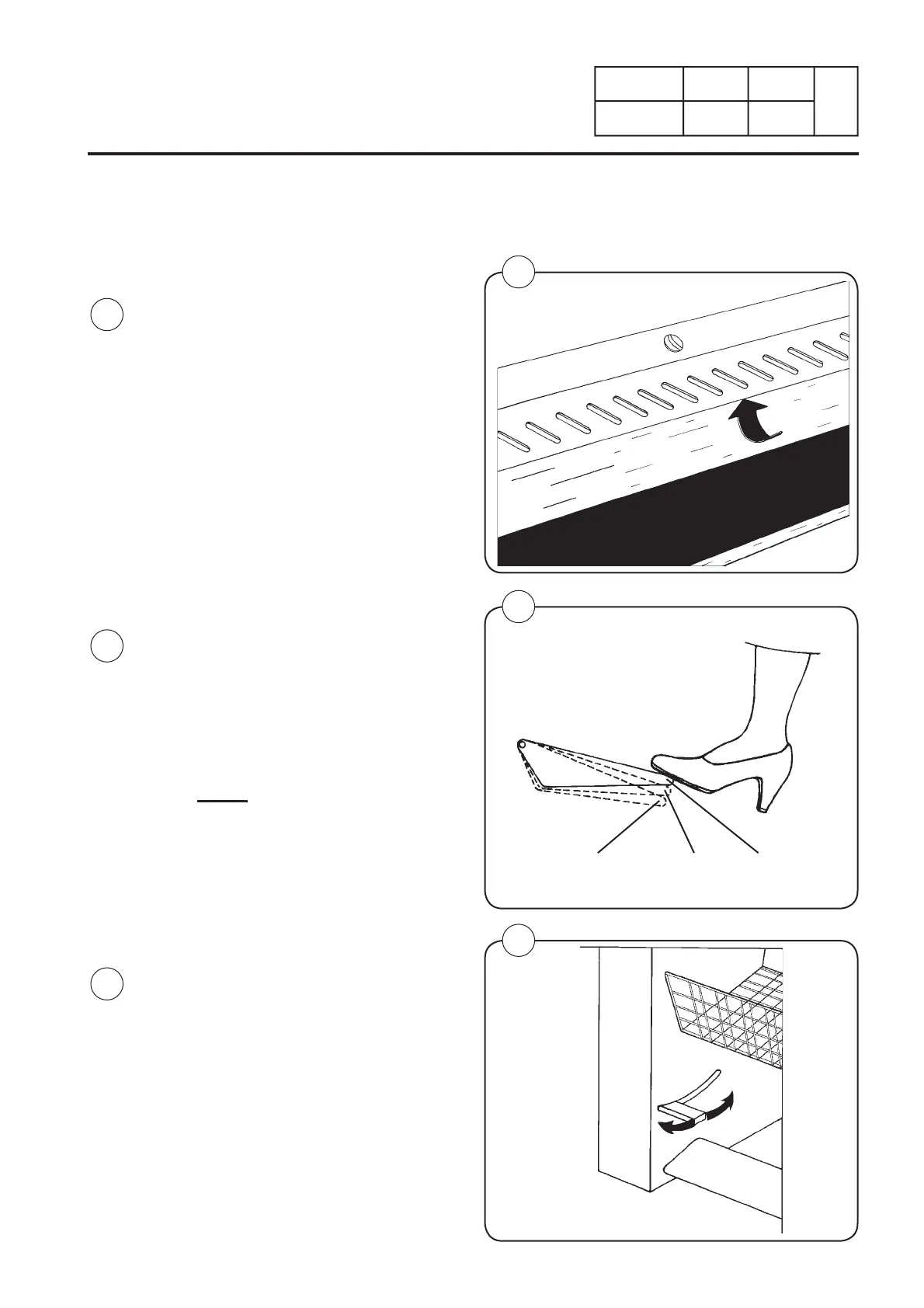

3. Method of use
Check that the fi nger protection
device is operating prior to each use.
When this device is activated, the
ironing machine stops, the cylinder
stops turning and the tray moves back.
Press down on the control pedal to
continue ironing.
Finger protection device
Fig.
4
3 - position control pedal
Position 1 up (rest position)
Position 2 intermediary (cylinder stop
for pressing function)
Position 3 down (ironing function or
moving away of bed)
NOTE : Push gently on the control pedal with
your foot.
•
•
•
Control pedal
Fig.
5
In the event of power failure, any
garment in the machine can be removed
by activating and then releasing with
your foot this lever which separates the
bed from the cylinder.
Release device
Fig.
6
