IInnssttaallllaattiioonn IInnffoorrmmaattiioonn
2-8
IInnssttaalllliinngg tthhee CCaabbiinneett GGlliiddeess
The cabinet glides mount to the inside of the cabinet.
The glides on the coffee maker slide into the cabinet
glides. The guide system allows the coffee maker to
slide in and out of the cabinet for loading the coffee
bins and for maintenance.
To install the cabinet glides:
1. Determine the number of metal shims required to
mount the cabinet glide assemblies according to
the chart and diagrams below. The appliance is
supplied with six 1/16” (1mm) metal shims. Use the
shims to position the fixing angles so that they are
properly spaced. The appliance will not slide in and
out of the cabinet properly if the fixing angles are
not properly spaced. (See Figure 2-6)
2. Put the two (2) cabinet glide assemblies, and shims
if necessary, as shown on the inside surfaces of the
cabinet. Position them 3 1/2” (9.0cm) from the
front edge of the cutout opening. (See Figure 2-7)
3. Insert the screws in the holes of the glides without
tightening them completely.
4. Make sure the outside distance between the fixing
angles is 22-1/8” (56.2cm) and that the glides are
level. Change the number of shims or adjust the
fixing angles as necessary. (See Figure 2-6)
NNOOTTEE::
Make sure that the glides are level.
NNOOTTEE::
Make sure that the power cord and water feed
line can be fed freely through the back wall.
NNOOTTEE::
In order to avoid overheating the coffee maker,
make an opening of at least 3-15/16” (10.0cm) at the
back of the cabinet to allow air to circulate.

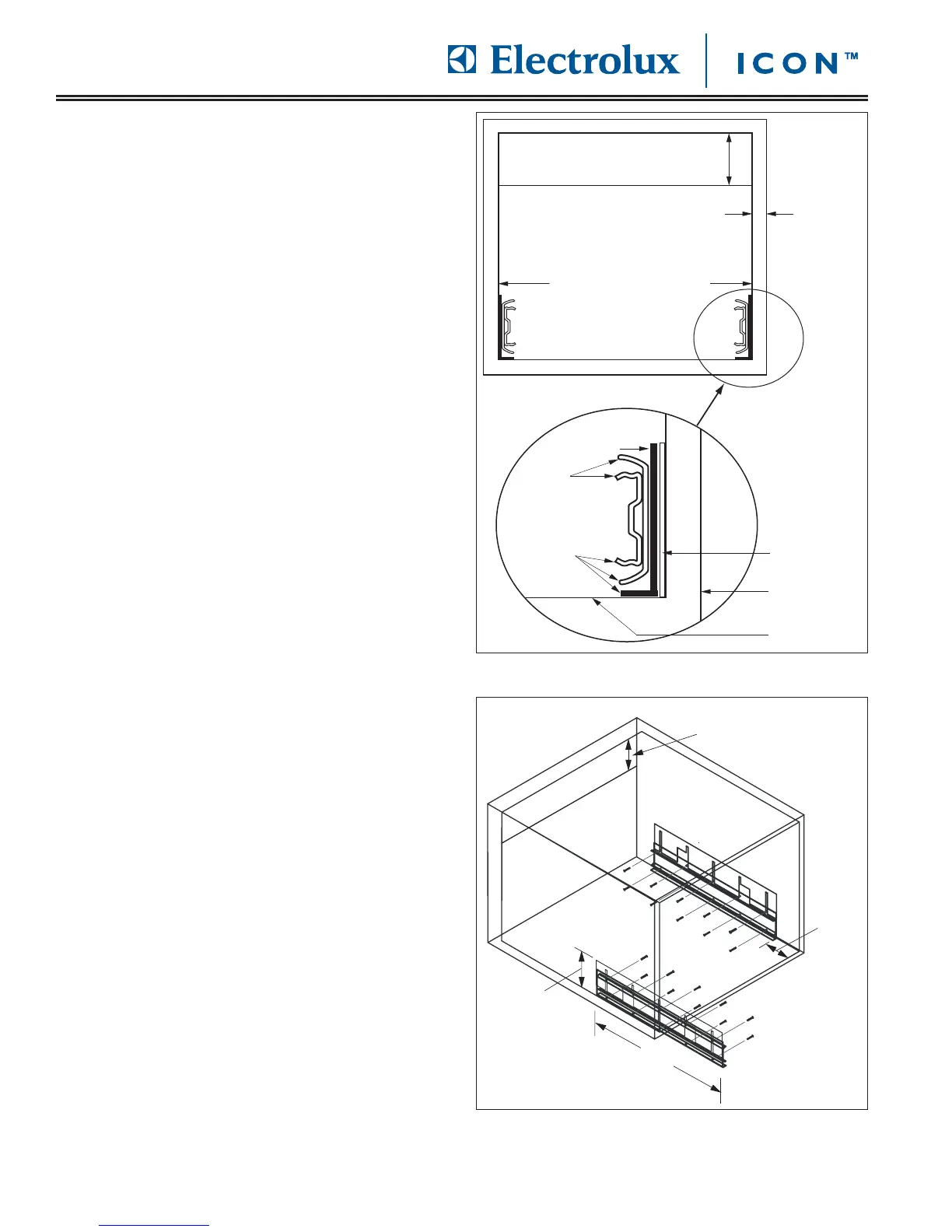

FFiigguurree 22--66 .. CCaabbiinneett GGlliiddee IInnssttaallllaattiioonn ((FFiixxiinngg AAnnggllee))
22-1/8” (562mm) Nom.
Min. Side Walls
4” X 12” (100mm X 300mm) Min.
