Electrolux ICON E24CM75GSS - Left and Right Side Inner Door Panel; Door Hinge Removal

CCoommppoonneenntt TTeeaarrddoowwnn
4-8

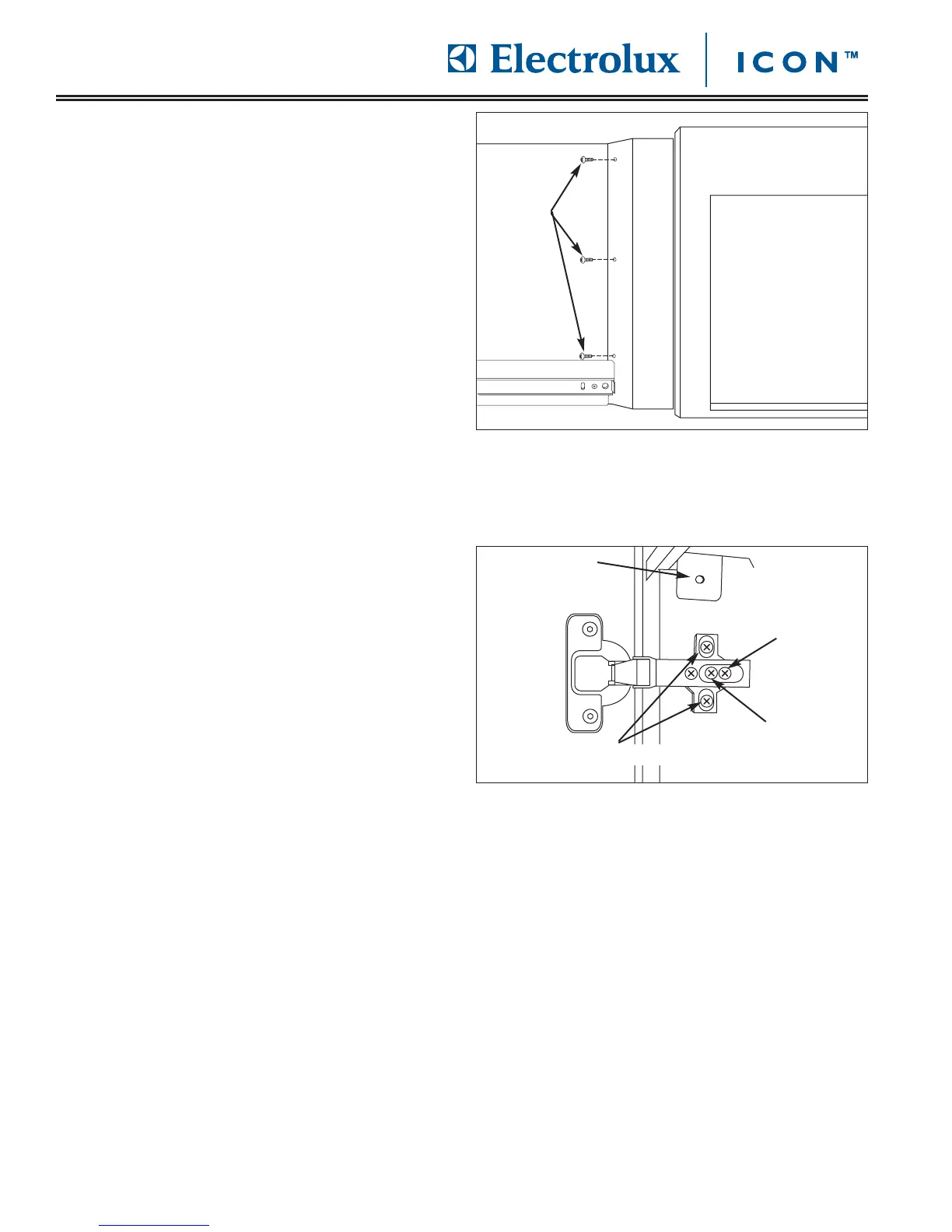

FFiigguurree 44--1155.. DDoooorr HHiinnggee RReemmoovvaall
FFiigguurree 44--1144.. LLeefftt aanndd RRiigghhtt SSiiddee IInnnneerr DDoooorr PPaanneell
LLeefftt EExxtteerriioorr SShho
owwnn AAbboovvee
LLeefftt aanndd RRiigghhtt SSiiddee IInnnneerr DDoooorr PPaanneell
Each side panel is secured with three screws that pass
through the exterior frame and fasten into the side
panel. The left side panel also has a screw at the top
of the panel in the brewing compartment that fastens
into an “L” bracket.
To remove the left side inner panel (See Figure 4-14):
1. Remove drip tray and open door.
2. With phillips head screwdriver, extract screw from
inside brewing compartment.
3. Extract the screws from left exterior sidewall of unit
that secure the left inner side panel to unit frame.
Remove left inner side panel. (See Figure 4-15)
To remove the right side panel:
1. Open door and remove drip tray.
2. Extract the screws from right exterior sidewall of
unit that secure the left inner side panel to unit
frame. Remove left inner side panel.
DDoooorr HHiinnggee RReemmoovvaall
The door hinges are a two part hinge assembly consist-
ing of the hinge and hinge holder. The hinge is secured
with allen screws to door frame, and the hinge holder is
secured to the unit frame with phillips head screws. A
cam in the hinge holder allows for door adjustment.
To remove the door hinges (See Figure 4-15):
1. Remove drip tray, open door and remove control
panel cover.
2. Disconnect wire harness from door assembly.
3. With phillips head screwdriver, extract screw from
inside brewing compartment.
4. Extract screws from the left exterior sidewall of unit
that secure the left inner side panel to unit frame.
Remove left inner side panel.
5. Using a phillips head screwdriver, loosen the screw
from each hinge securing door hinge to hinge hold-
er on unit frame. Pull door straight out until head of
screw clears the keyhole slot of hinge and remove
from unit.
6. Using a phillips head screwdriver, extract screws
from hinge holders and remove from unit.
Cam
Adjustment
Screw
Step 5 Screw
Step 6 Screws
Exterior
Screws
Door Frame
Left Side Inner
Panel Screw
Location
