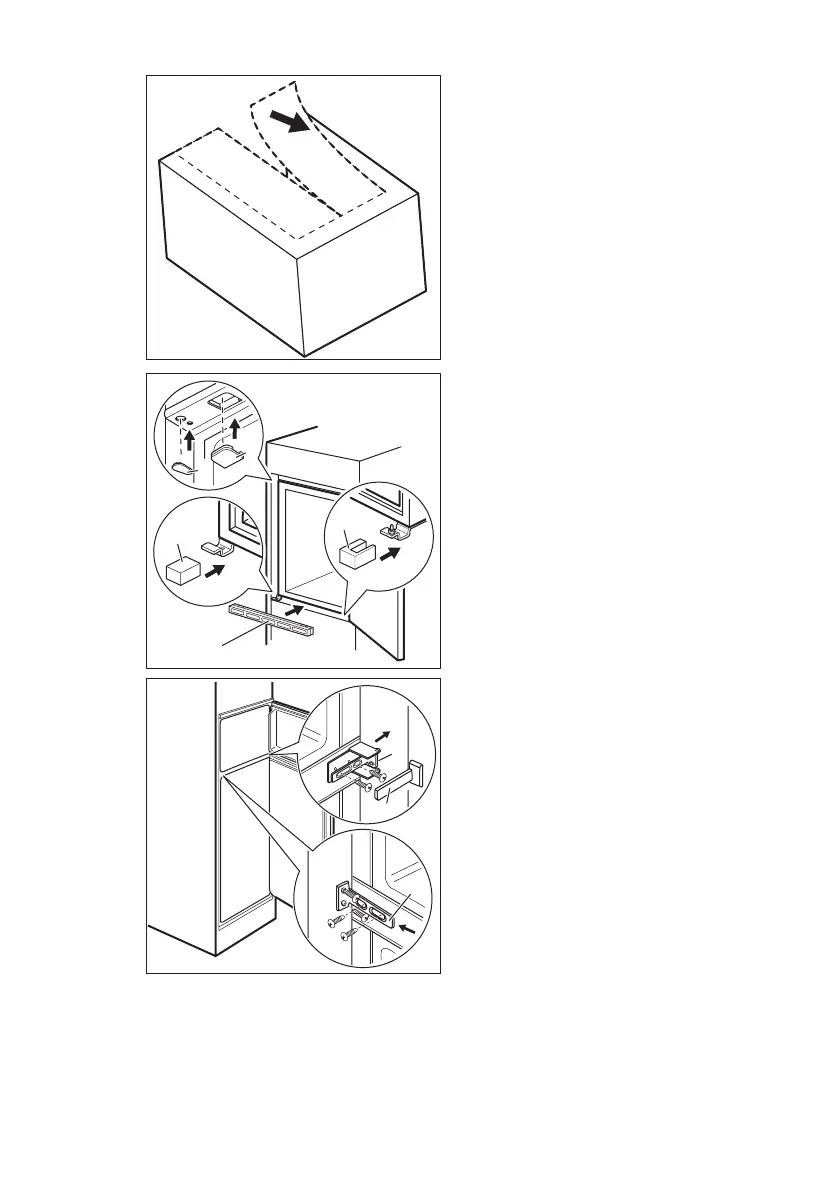

Remove the correct part from the hinge
cover (E). Make sure to remove the part DX,
in the case of right hinge, SX in opposite
case.
E
E
B
D
C
Attach the covers (C, D) to the lugs and the
hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
G
G
H
1.
Loosen the screws of the part (G) and
move the part (G).
2.
Tighten the screws of the part (G)
again.
3.
Attach the part (H) to the part (G).
