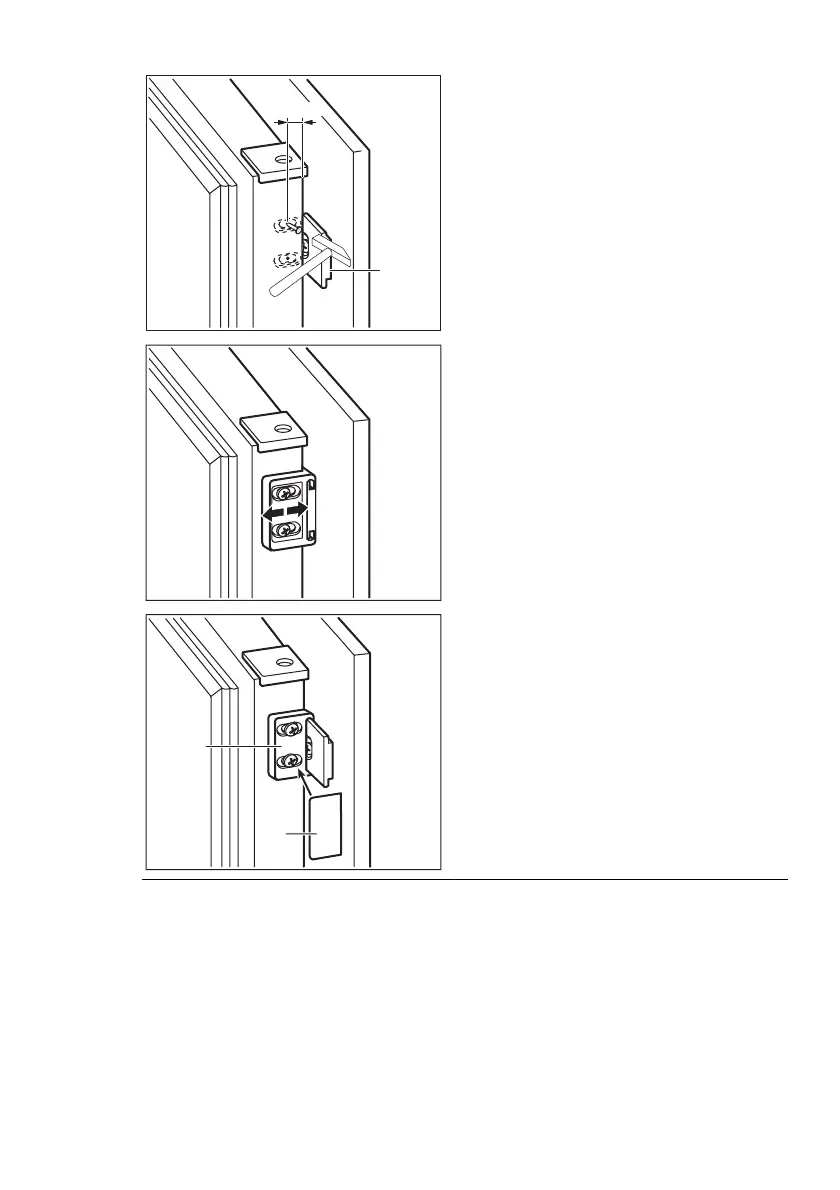

Ha
K
8 mm
Remove the brackets and mark a distance
of 8 mm from the outer edge of the door
where the nail must be fitted (K).
Hb
Place the small square on the guide again
and fix it with the screws supplied.
Align the kitchen furniture door and the ap-
pliance door by adjusting the part (Hb).
Hb
Hd
Press the part (Hd) on the part (Hb).
8. NOISES
There are some sounds during normal
running (compressor, refrigerant circula-
tion).
74
