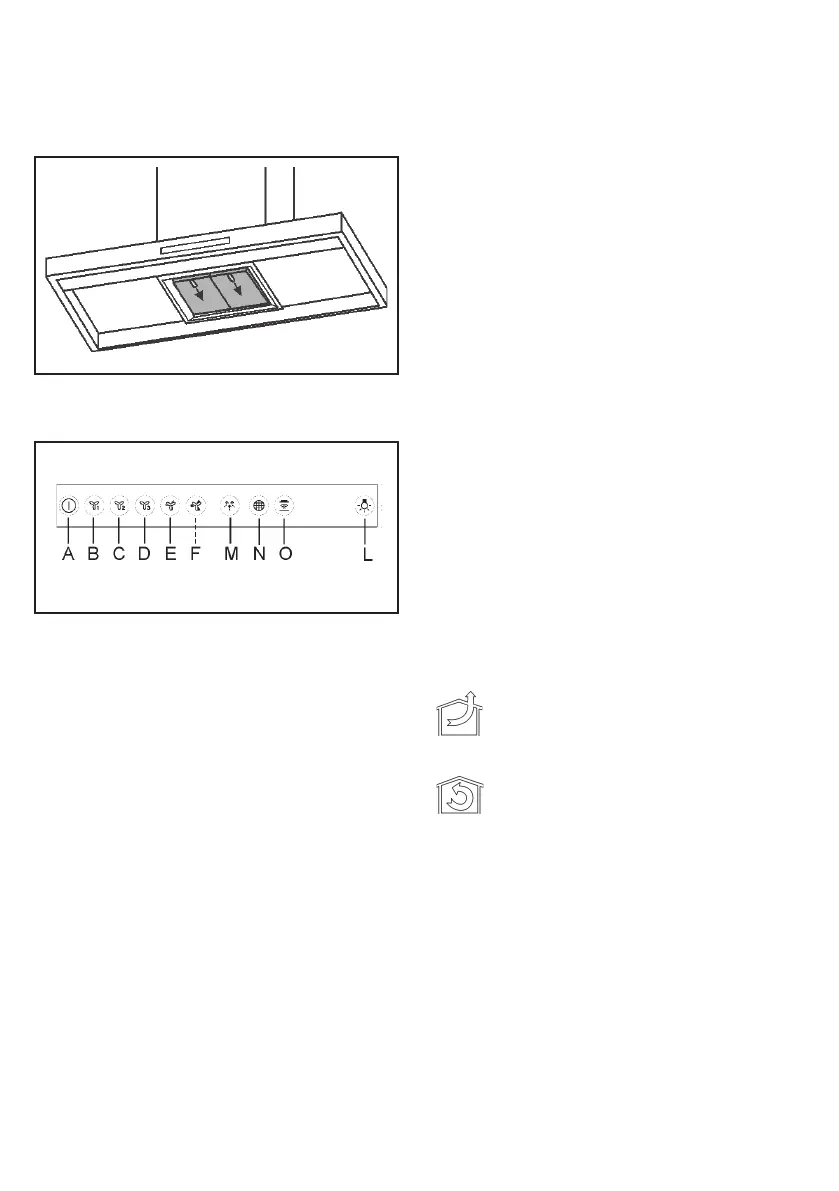

4. CONTROLS
A: Motor ON/OFF
B: fi rst speed motor
C: second speed motor
D: third speed motor
E: Intensive speed. This speed is timed to
runs for 8 minutes. At the end of this time, the
hood turns back automatically to the speed
that was set before using this function. To
switch off the speed, push key “Motor On/Off”
(A).
F: Model KFIB19X. Intensive speed. This spe-
ed is timed to runs for 5 minutes. At the end
of this time, the hood turns back automatically
to the speed that was set before using this
function. To switch off the speed, push key
“Motor On/Off” (A).
M: Breeze function. This function can work
for a maximum time of 1 hour. At the end of
the time, the motor switch off. To deactivate
breeze function, touch key “Motor On/Off” (A)
or another speed key.
N: Filters alarm indicator/Reset. When the
indicator is on, the grease fi lters must be
cleaned (40 hours of operation). When the
indicator fl ashing, the charcoal fi lters must
be replaced (160 hours of operation) and the
grease fi lters must be cleaned. Obviously, if
the hood is not a fi ltering model and does not
have a charcoal fi lters, clean only the grease
fi lters. The fi lter alarm can be seen for about
30 seconds, when the hood is in Stand By. To
RESET the hour counter, press for 3 seconds
the indicator, when the hood is in off state.
O: H2H indicator. The indicator is on when the
hood is working controlled by the hob. In case
of no connection between hob&hood, the
indicator is not backlighted.
L: Model EFI739X. Light ON/OFF
L: Model KFIB19X. Light. Short press turns
the light On/Off, long press dims it.
5. INSTALLATION
METHODS
FILTERING OR DUCTING VERSION ?
The hood may be in fi ltering or in ducting
version. Decide from the outset which type is
to be installed.
For better effi ciency, we recommend installing
the hood in the ducting version (if possible).
Ducting version
The hood purifi es the air and evacuates it to
the outside through an exhaust duct.
Filtering version
The hood purifi es the air and recycles the
clean air back into the room.
6. LIGHTING
If the light spot is damaged, it must be re-
placed only by the manufacturer, its service
agent or similarly qualifi ed persons in order to
avoid a hazard.
The activated charcoal fi lter is not washable
and cannot be regenerated, and must be
replaced approximately every 4 months of
operation, or more frequently for particularly
heavy usage.
