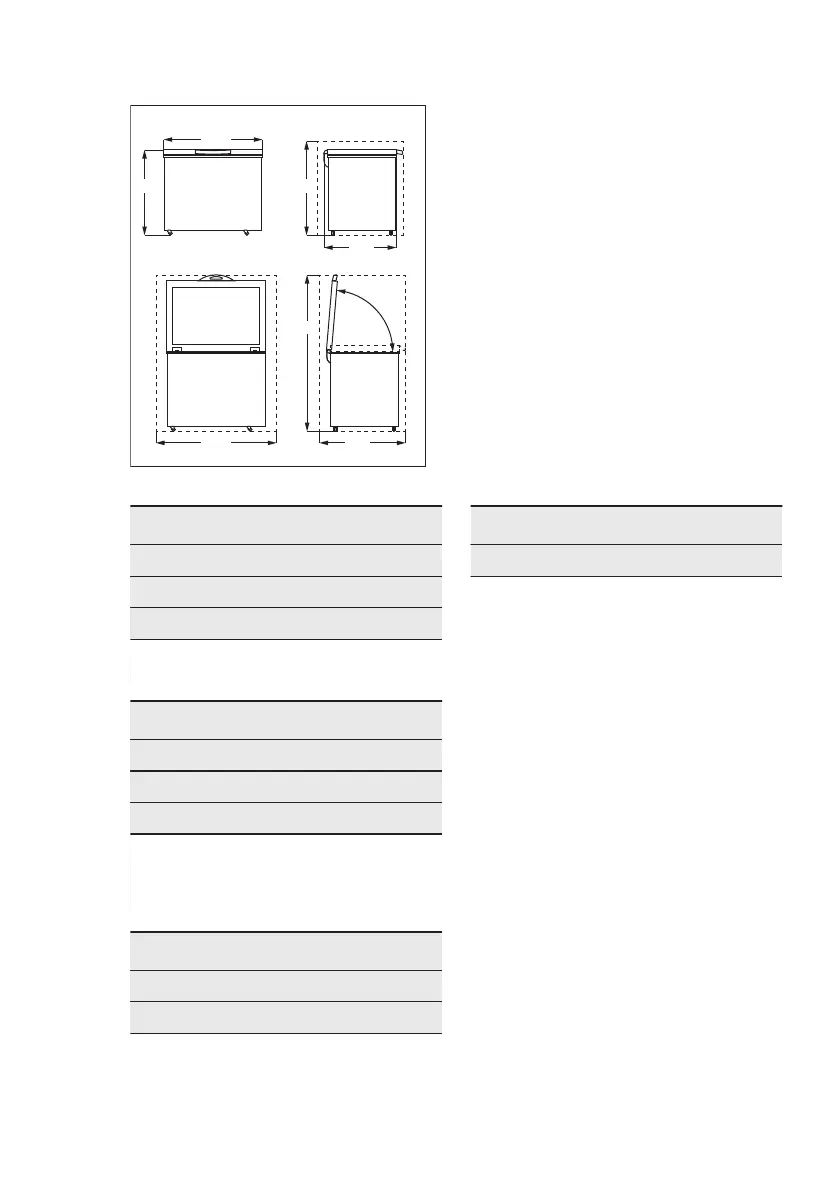

3.1 Dimensions
H1 H2
85°
W2 D2
D1
H3
W1
Overall dimensions
1)
H1 mm 845
W1 mm 1300
D1 mm 700
1)
the width, height and depth of the appli‐
ance without the handle
Space required in use
1)
H2 mm 945
W2 mm 1500
D2 mm 865
1)
the height, width and depth of the appli‐
ance including the handle, plus the space
necessary for free circulation of the cooling
air
Overall space required in use
1)
H3 mm 1544
W2 mm 1500
Overall space required in use
1)
D2 mm 865
1)
the height, width and depth of the appli‐
ance including the handle, plus the space
necessary for free circulation of the cooling
air, plus the space necessary to allow door
opening to the minimum angle permitting
removal of all internal equipment
3.2 Location
The appliance should be installed well
away from any sources of heat, such as
radiators, boilers, direct sunlight, etc.
• Place the appliance in a horizontal
position on a solid surface.
• Make sure that the appliance stands
level.
• To achieve the best performance, do
not place the appliance below
overhanging wall units.
• Make sure the air can circulate freely
around the appliance.
If, due to different installation, proper
ventilation requirements are not
respected, the appliance will function
correctly but energy consumption
might increase slightly.
