Electrolux RM 4185 - Power Module Connections

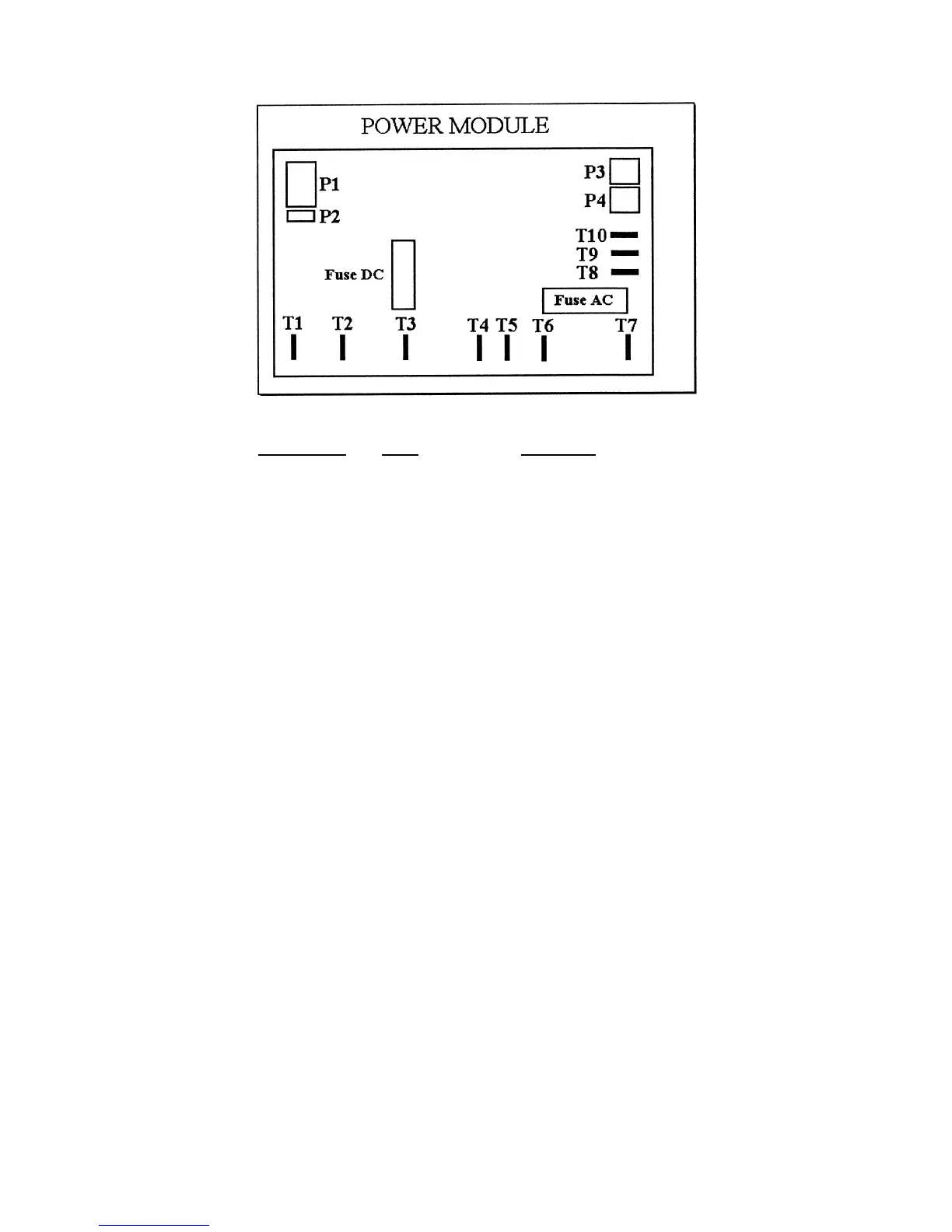

3.2 Power Module Connections
6
Connection Type Definition
P1 I/ O Connection cable display/ power module
P2 I Temperature sensor
P3 I/ O Reigniter
P4 O Lifting magnet
T1 O 12V DC lighting
T2 O 12V DC heating element
T3 I 12V DC power supply (+)
T4 I 230V AC
T5 O 230V AC heating element
T6 O 230V AC heating element
T7 I 230V AC
T8 I Ground
T9 I Generator (D+)
T10 I Solar system
