Electrolux TRMKTEZ2FL75 - Dual Trim Kit Components (84 Tall Cabinet Cutouts)

INSTRUCTION SHEET
©2021 Electrolux Home Products, Inc. Instruction Sheet A00343905 7.23.21

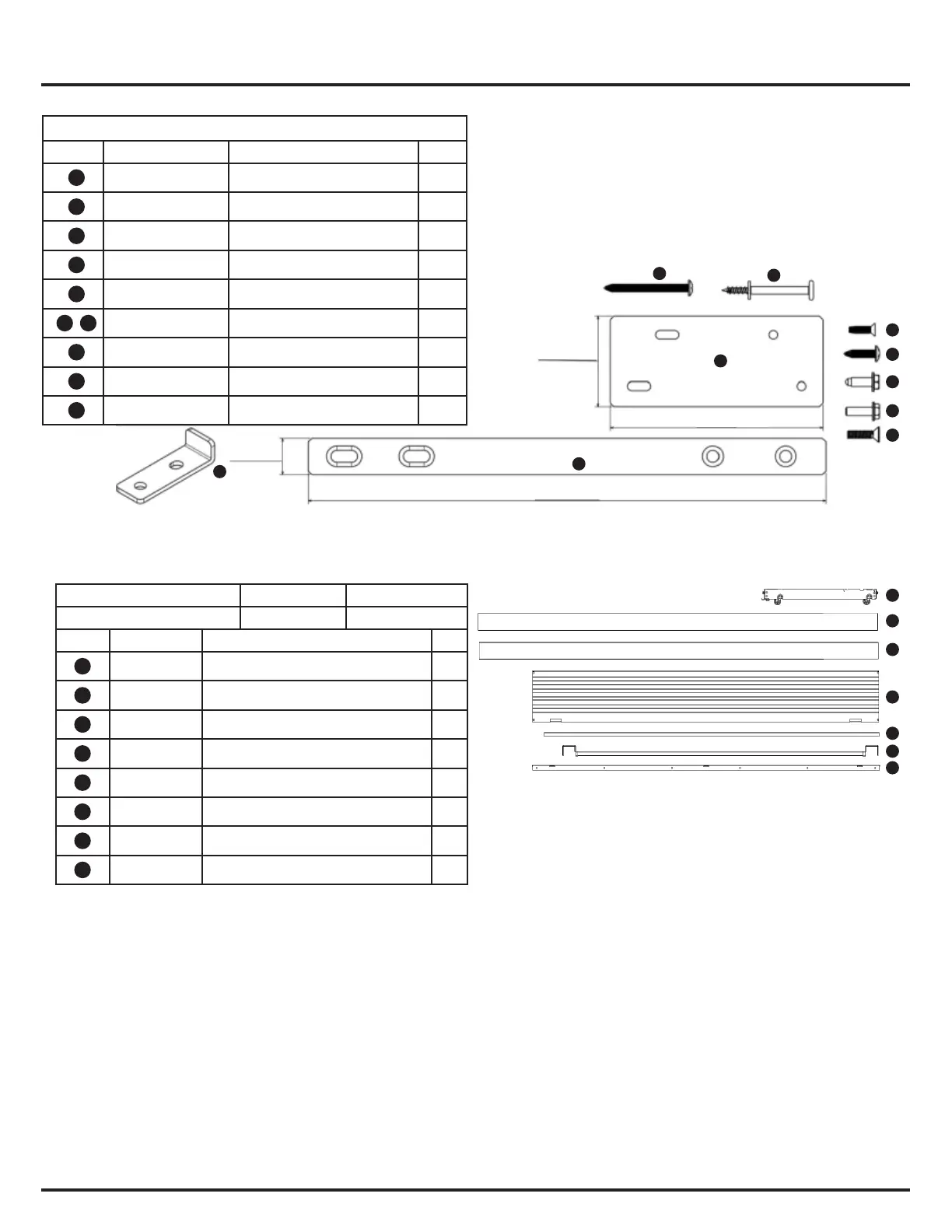

Dual Trim Kit Components (84˝ Tall Cabinet Cutouts)
Brand Kit # Dual Trim Kit #
Electrolux TRMKTSS2LV84 A16405301
Item # Part Number Description Qty
1A
A19036501
Side Trim, RH
1
2A
A19036502
Side Trim, LH
1
3A
A19036401
Top Trim, Louver
1
4
A18685102
Center Trim
1
5
A18684502
Toe Kick
1
6
A17111301
Leveler Assembly
4
7
A20841302
Hardware Pack U19, Double
1
8
A19036701
Side Trim Attachment
2
5
1A
2A
3A
4
6
8
2H
3H
4H
5H
8H
9H
6H
7H
1H
10H
2.12" Ref
5" Ref
12.21" Ref
0.87" Ref
Hardware Pack A20841301
ITEM PART NUMBER DESCRIPTION QTY
1H
A18695801 Tie-Bar, Top 1
2H
297142600 Screw, Flathead, #8-32 2
3H
050149 Screw, Round, #8-18 4
4H
A16955502 Bolt, M5 x 16 6
5H
A21188301 Bolt, ¼-20 2
6H
,
7H
A20706101 Trim Base Screw 1
8H
A20632701 Screw, 10-24 x  8
9H
A16770801 Tie Bar, Bottom 2
10H
A18685301 Center Trim Support 1
