Electrophysics AstroScope 9350 - Assembly

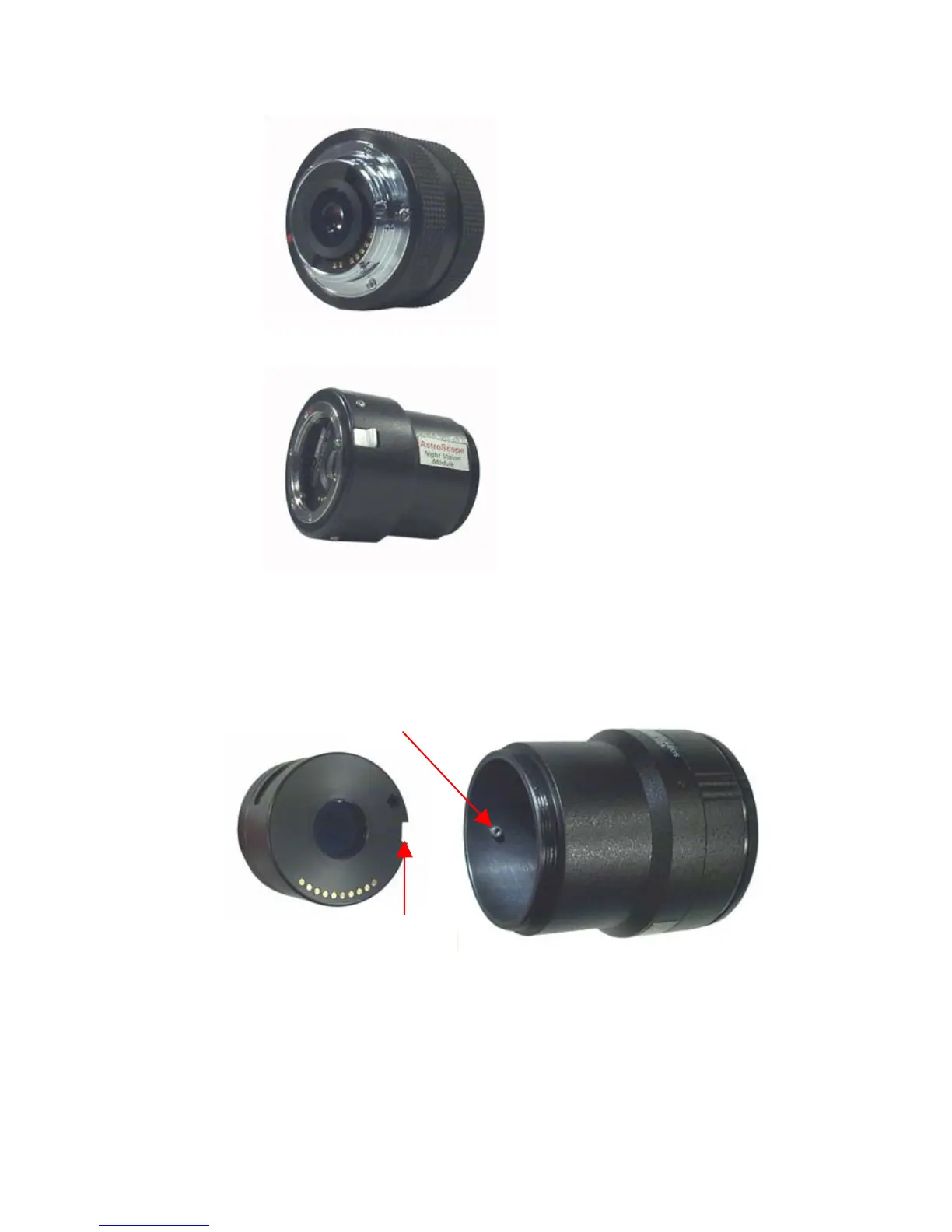

2.1.1.3 Canon XL Components
9350XL BBA for Canon XL
Camcorders
9350XL FLA for Canon XL
Camcorders
2.1.2 Assembly
The Front Lens Adapter (FLA) has an alignment pin on the inside
wall. Align the pin with the groove on the side of the CIU and slide
the CIU into the FLA.
Groove in CIU
Alignment Pin
2-5
