2.3.1 Required Components

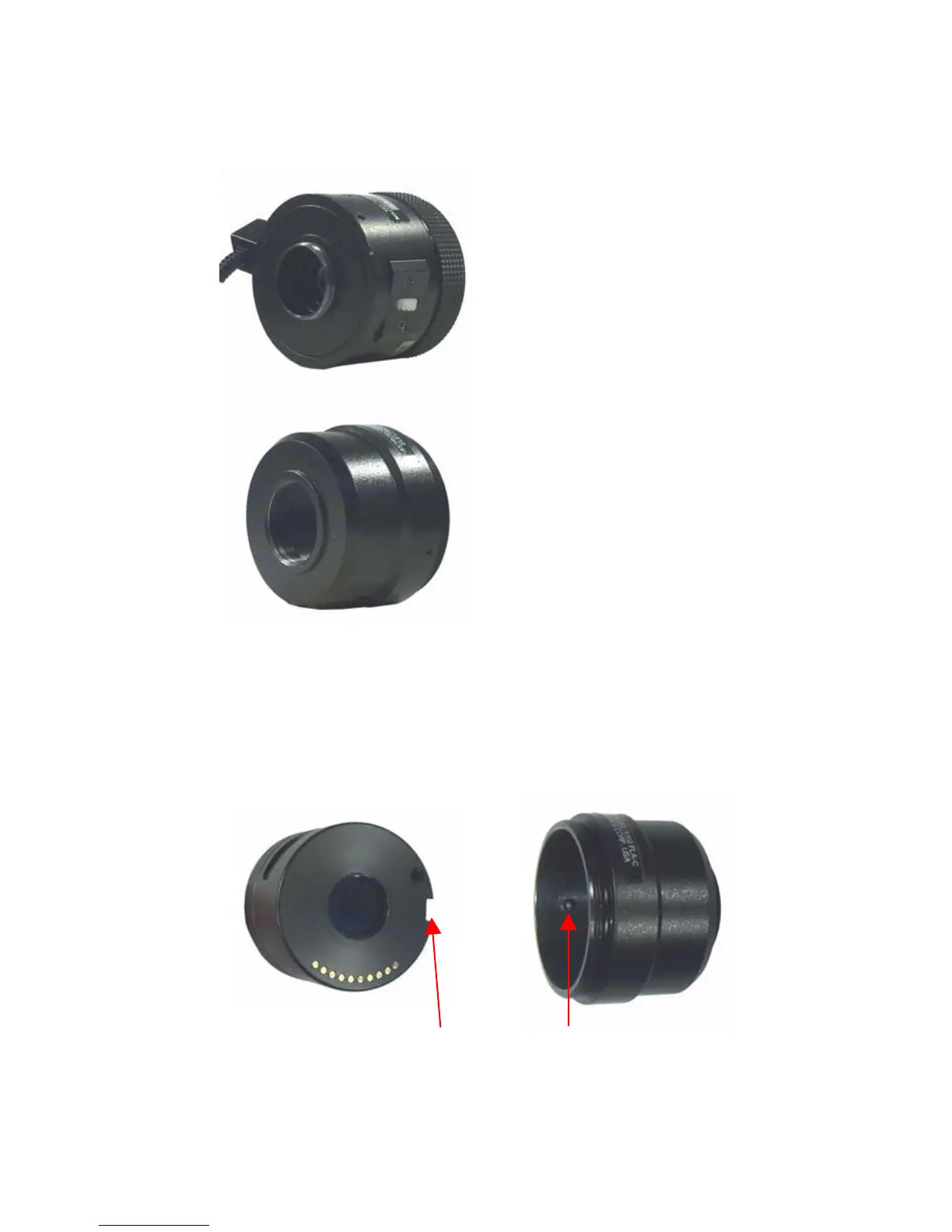

The adapter pair for C-Mount Cameras is pictured below. Handle
each part carefully. If any of the optics becomes dirty, refer to the
Maintenance section of this manual for cleaning instructions.
9350BBA-C - The rear
module consisting of a 1” C-
Mount thread, detachable
power cable and plug cap.
2-18
e
ded to.
9350FLA-C - This is the C-
Mount device into which th
objective lens is threa
2.3.2 Assembly
1. The FLA-C has an alignment pin on the inside wall.
Align the pin with the groove on the side of the CIU and
slide the CIU into the FLA-C.
Groove in CIU Alignment Pin
