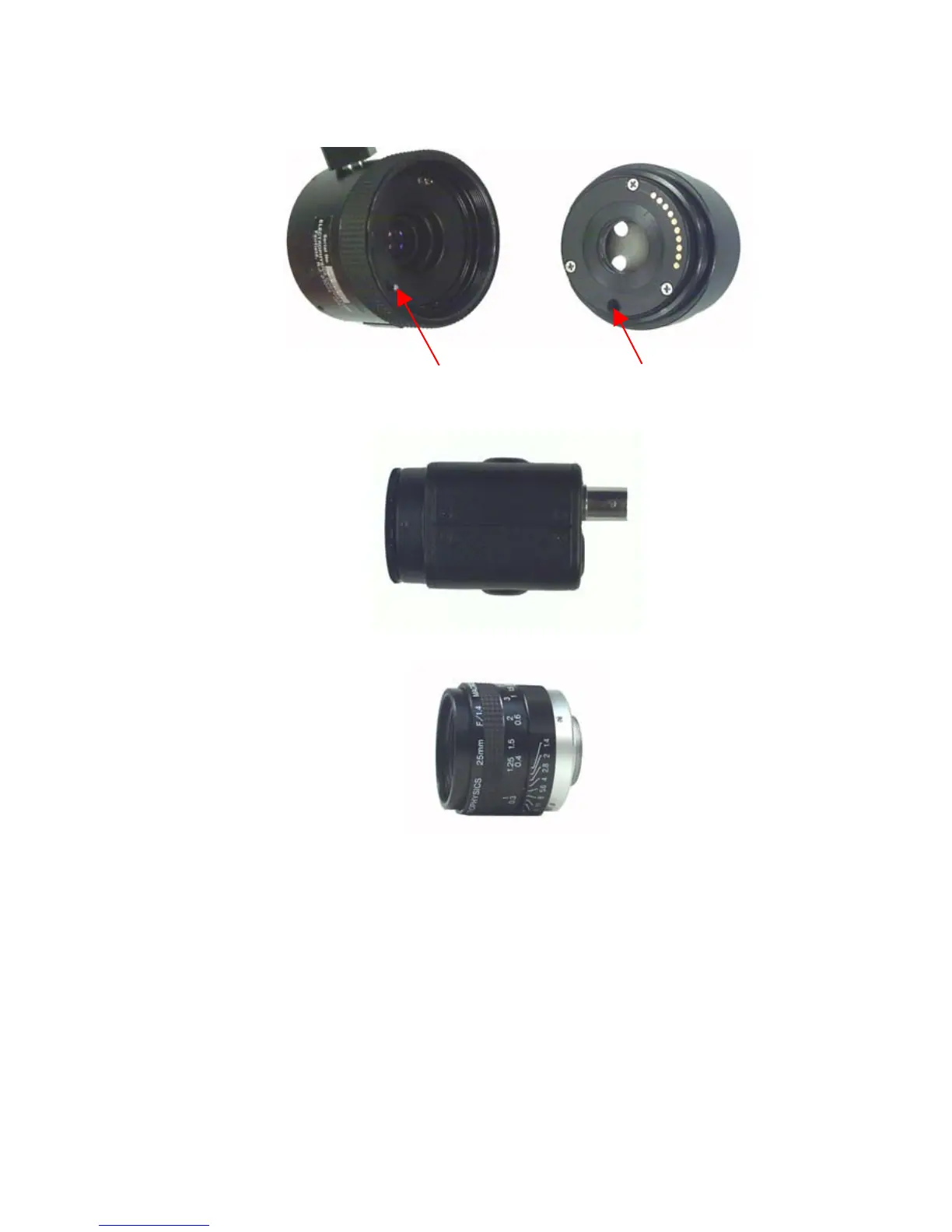

2. There is a silver alignment pin on the inside of the BBA-
C. Align this pin with the hole in the CIU and thread the
BBA-C to the FLA-C.
Silver Alignment Pin Hole in CIU
3. Attach the assembly to your c-mount camera.
4. Attach an objective lens to the front of the assembly.
5. Power the unit through the cable provided with 3 to 15
volts DC. The wire with the white stripe is positive.
6. Set the focus on the objective lens to a subject 15 feet (5
meters) away. While looking at a monitor, loosen the
back focus lens locking screw to adjust the white plastic
focus wheel on the BBA-C housing until the best image
is obtained. This operation may need to be repeated to
get the best image. Re-tighten the lens locking screw
after satisfactory focus is obtained
7. Thereafter, only the objective lens needs refocusing to
accommodate objects at different distances.
2-19
