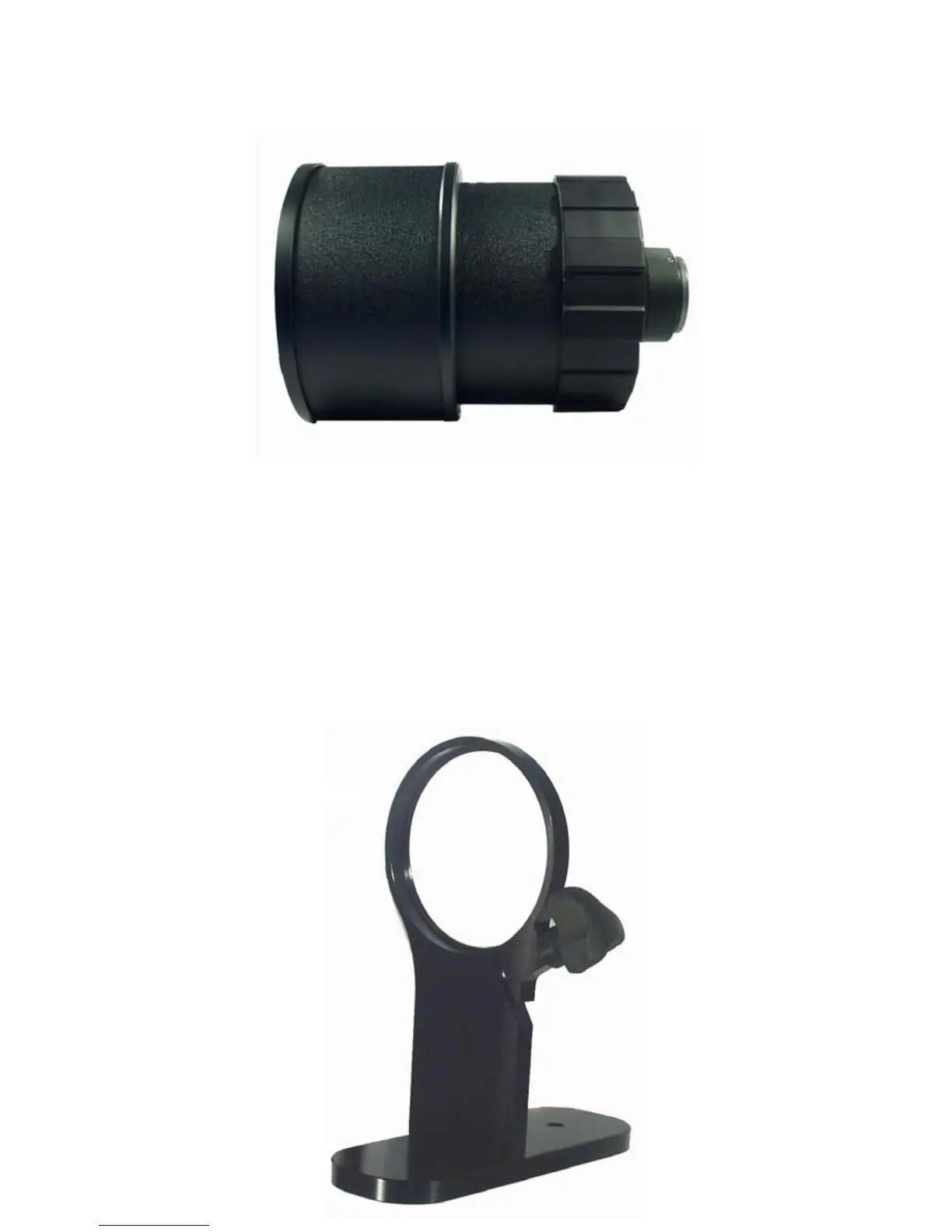

3. Reverse the hood and align the pins with the slots in the
lens. Twist clockwise to lock in place.
3.1.2.1 Using the Tripod Mount
Note: The Tripod Mount is only required when using a tripod. The
tripod mount is not used on units that include the 9350EPA, which
already have an integral tripod mount.
1. The Tripod Mount has a flange on the inner part of the
Clamping mount.
3-6
