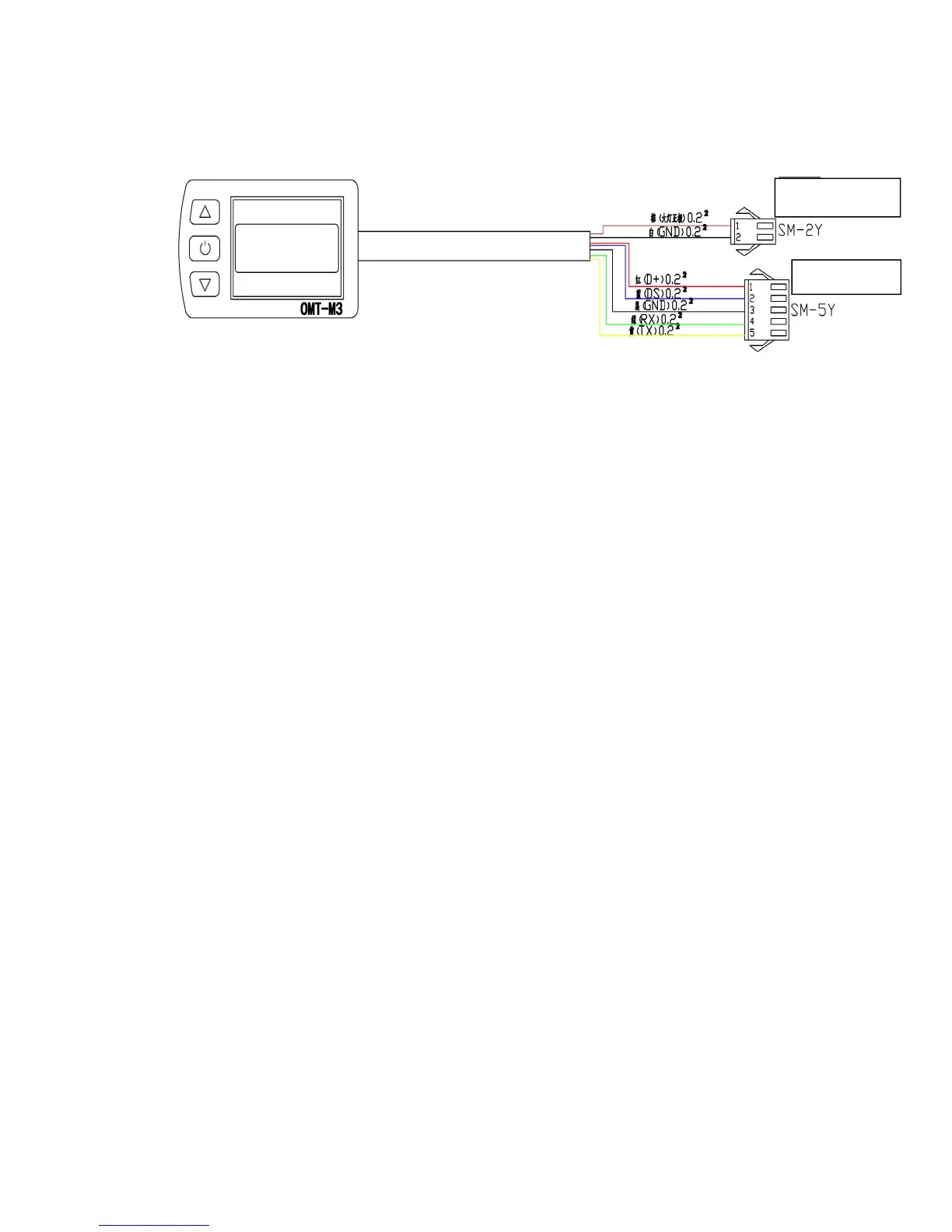

3) Connection diagram:
Wire definition:
Red
：
Power supply-VCC
Blue
：
Electronic lock-DS
Black
：
GND
Green
：
Data RXD
Yellow
：
Data TXD
BROWN
：
Head light(+) -DD
White
：
Head light(-)-GND
Remark
：
Connectors and Wire colors could be customized
5) Installation
●
Install the display in the middle of handlebar, then adjust
to suitable angle, install the press button to left side ofhandlebar.
●
Power off the device, connect the device to controller.
●
Power on
To Head Light
To Controller
