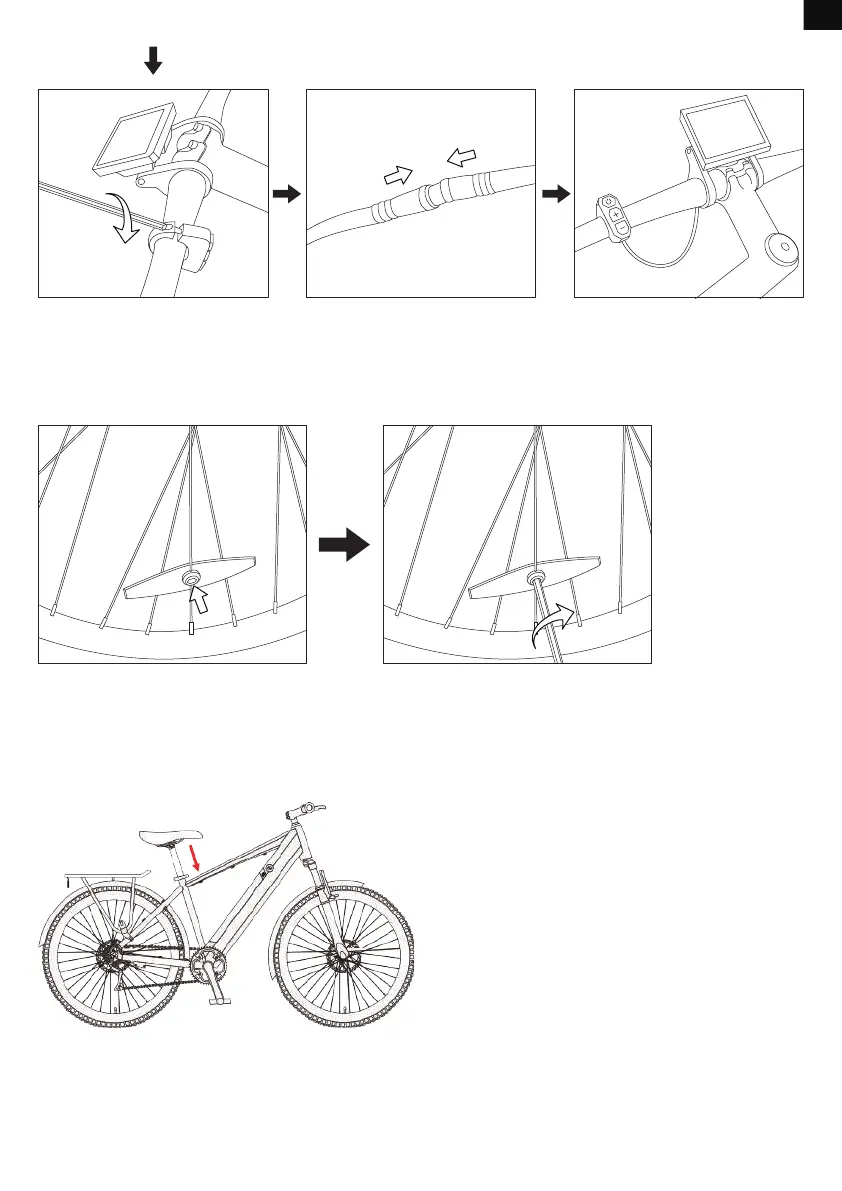

Note: don’t overtighten screws when you install the display. Or it will cause permanent damage to it. The
display can be mounted firmly with 0.2N.m torque.
Step 10 Install Spoke Reflectors
Step 11 Install The Seat
A) Slide the seat post into the support frame.
B) Adjust the seat to a suitable height and fix it by tightening and locking the quick-release clip.
Step 12 Turn The Power on
A) Lock the battery and turn the display on. Then it’s ready to go!
