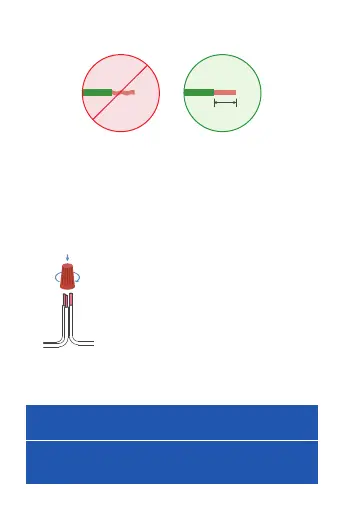

Make sure that the ends of the disconnected wires from the wall
box are straight (cut if necessary).
Remove 0.6" (15mm) of insulation from each wire in the wall box.
For non-standard wiring applications, refer to the following
Wire Connector Size Chart:
STRIP WIRES
HOW TO USE WIRE CONNECTORS
1. Insert wire into wire connectors.
2. Turn wire connectors clockwise.
3. Pull gently on wires to test connection.
0.6 inches(15mm)
Actual Size
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
1-#14 w/ 1 to 2 #16 or #18
1-#16 w/ 1 to 2 #16 or #18
1-#18 w/ 1 to 3 #18
