Disconnect the switch from the wall box to Load (Fixture).

Do not remove the original switch from the wall box connected

to Power Source.

If the Neutral wire exists in the wall box to

Power Source only, and the wiring in the

wall box does not resemble any of these

conﬁgurations, check this wiring diagram

and consult a qualiﬁed electrician.

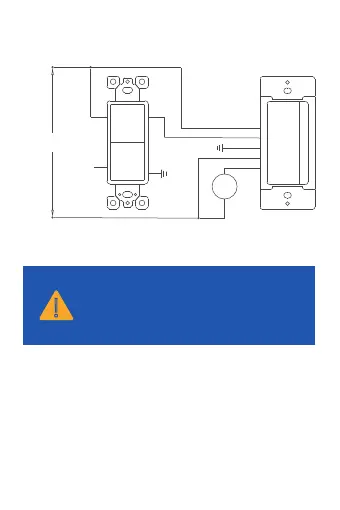

WIRING DIAGRAM FOR PRO

DISCONNECT THE SWITCH TO LOAD

120VAC 60Hz

Hot(Black)

Neutral(White)

COMMON

NOT

USED

Load

Neutral

Ground

3-Way

LineTraveler 1

Traveler 2
