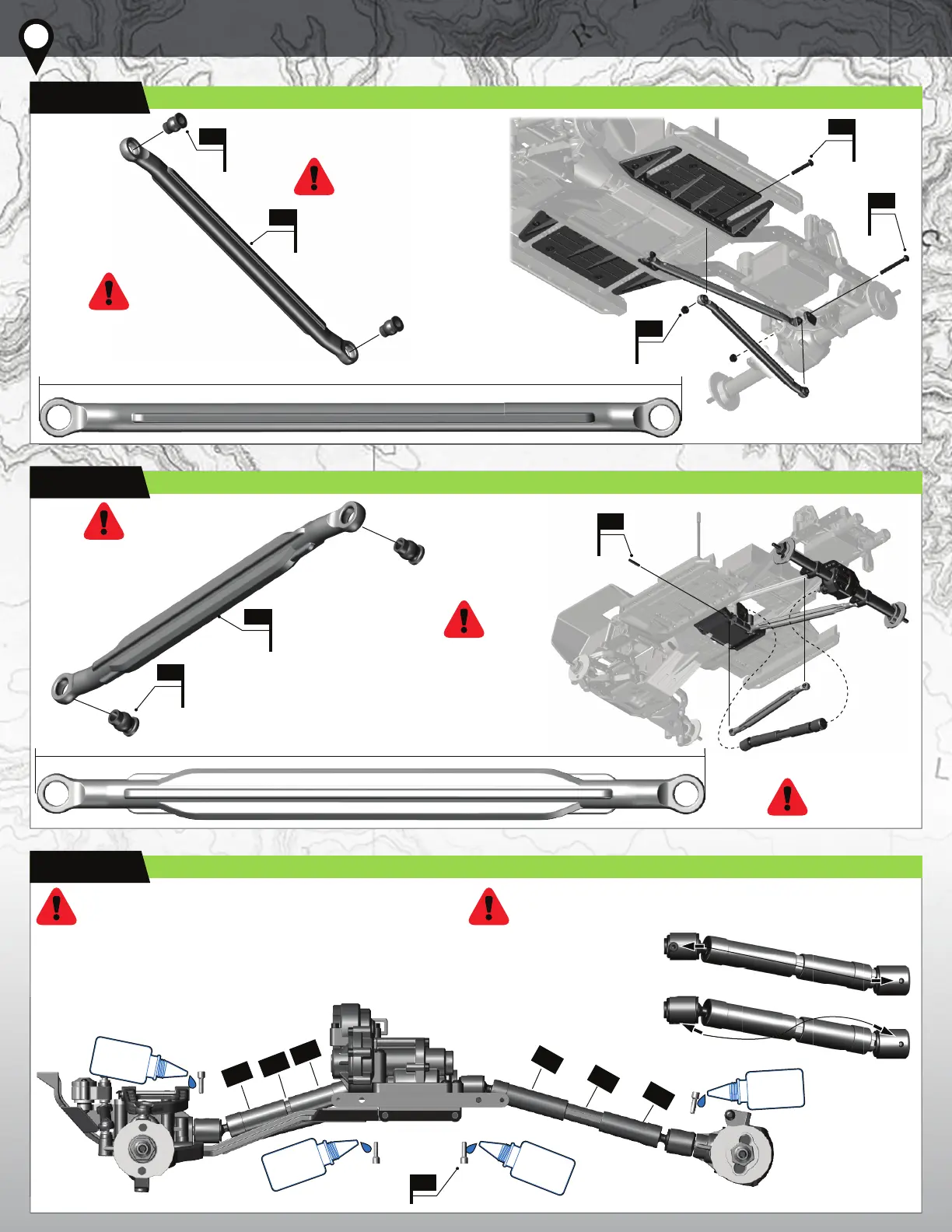

Element RC Utron SE - Suspension Links and Rear Driveshaft; Upper and Lower Link Assembly; Rear Driveshaft Phasing and Installation

12
LINKS BUILD:
GATE 01
REAR DRIVESHAFT BUILD:
LINKS BUILD:
GATE 01
GATE 02
x1
42344
Link,
152mm
NOTE: Check the rod end
angles before installation
x2
42041
Pivot Ball,
6mm
152.00mm
NOTE: Build and install
two rear lower links
NOTE: Make sure the screw
pins are aligned with each
female CVA during assembly
NOTE: Make sure the phasing of the drive shafts is correct when installing
them to the axles and gearbox.
Correct Phasing
Incorrect Phasing
x4
42022
Screw Pin
33
42
46
60
33
33
FRONT
REAR
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
x1
4689
3x16mm
Set Screw
NOTE: Install the
rear drive shaft
x1
42344
Link,
146mm
NOTE: Check the rod end
angles before installation
x2
42041
Pivot Ball,
6mm
146.00mm
NOTE: Build and install
two rear upper links
x1
25188
3x20mm,
BHCS
x2
x1
25215
M3 Locknut,
Black
41078
3x28mm
BHCS
