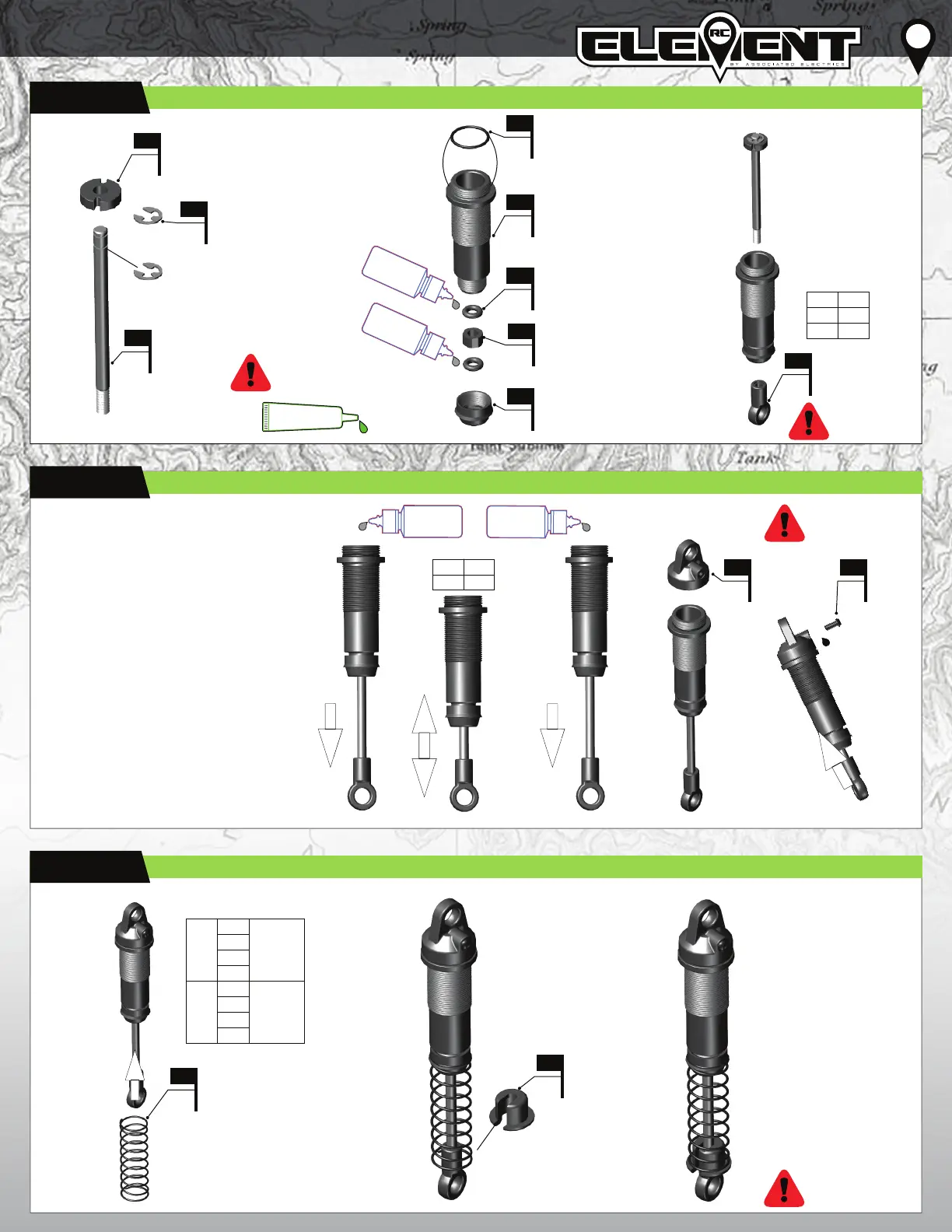

SHOCK BUILD:
GATE 01
SHOCK BUILD:
GATE 02
SHOCK BUILD:
GATE 03
13
33.657120, -117.701139
x1 x1
42311
Shock Cap,
Enduro
31510
2x5mm
BHCS
Shock Bleeding Steps:
1. Pull shock shaft down.
2. Fill shock body 3/4 full with silicone fluid.
3. Slowly move the shock shaft up and down to remove air from
under piston.
4. Wait for bubbles to come to surface.
5. Fill shock body to top with silicone fluid.
6. Place a drop of oil in the cap and on cap threads.
7. Install cap and tighten completely.
8. Slowly compress shaft all the way to the top. If there is
pressure at the top of the stroke, there is too much oil or air.
You must bleed it out.
9. Slowly pull shaft out.
10. Unscrew the cap 3/4 turn and tilt the shock at a slight angle.
11. Slowly compress the shaft to push out excess oil and air.
You should see bubbles coming out from under the cap.
12. With the shaft compressed, tighten the cap and re-check for
pressure at the top of the stroke. If there is still pressure,
repeat steps 9 thru11.
Step 8-12Step 1-3 Step 3-4 Step 5-6 Step 7
NOTE: Build 4
complete shocks
x2
x1
x1
x1
x1
x2
x1
x1
x1
x1
x1
2661
E-Clip
42311
Shock
Piston
42348
Enduro
Rod Ends
42083
Shock Shaft,
3x30mm
42312
Shock Body,
10x32mm
5407
O-Ring,
Red
42311
Shock O-Ring
Spacer
42311
Shock Bottom
Cap
31865
O-Ring, Small,
Shock Cap
42311
Shock Spring
Cup
42313
Shock Spring
NOTE: Build 4
complete shocks
NOTE: Build 4
complete shocks
Pro Tip:
Use #1105 Green
Slime on O-Rings
GREEN SLIME
#1105
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
Shock Fluid CST
Front
Rear
1,000
350
Shock Eyelet (mm)
Rear
Front
+0
+3
+6
Rear Spring
Front Spring
Green
White
Gray
Blue
Yellow
Red
Orange
Purple
Springs
#42313
Soft
#42347
Hard
