Chapter 2 Installing the LCD TV
HDMI IN
LRLR
PC/VGA IN
PC AUDIO IN
VIDEO IN S-VIDEO IN
COAXIAL
VHF/UHF IN
YPbPr
AUDIO IN
AUDIO IN
Rear of TV
Use a HDMI-to-DVI cable to connect the AV equipment’s DVI output jack to the LCD TV’s
HDMI IN jacks.
Use an audio cable to connect the AV equipment’s audio output jacks to LCD TV’s HDMI
AUDIO jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the Input button on the remote to select VIDEO4.

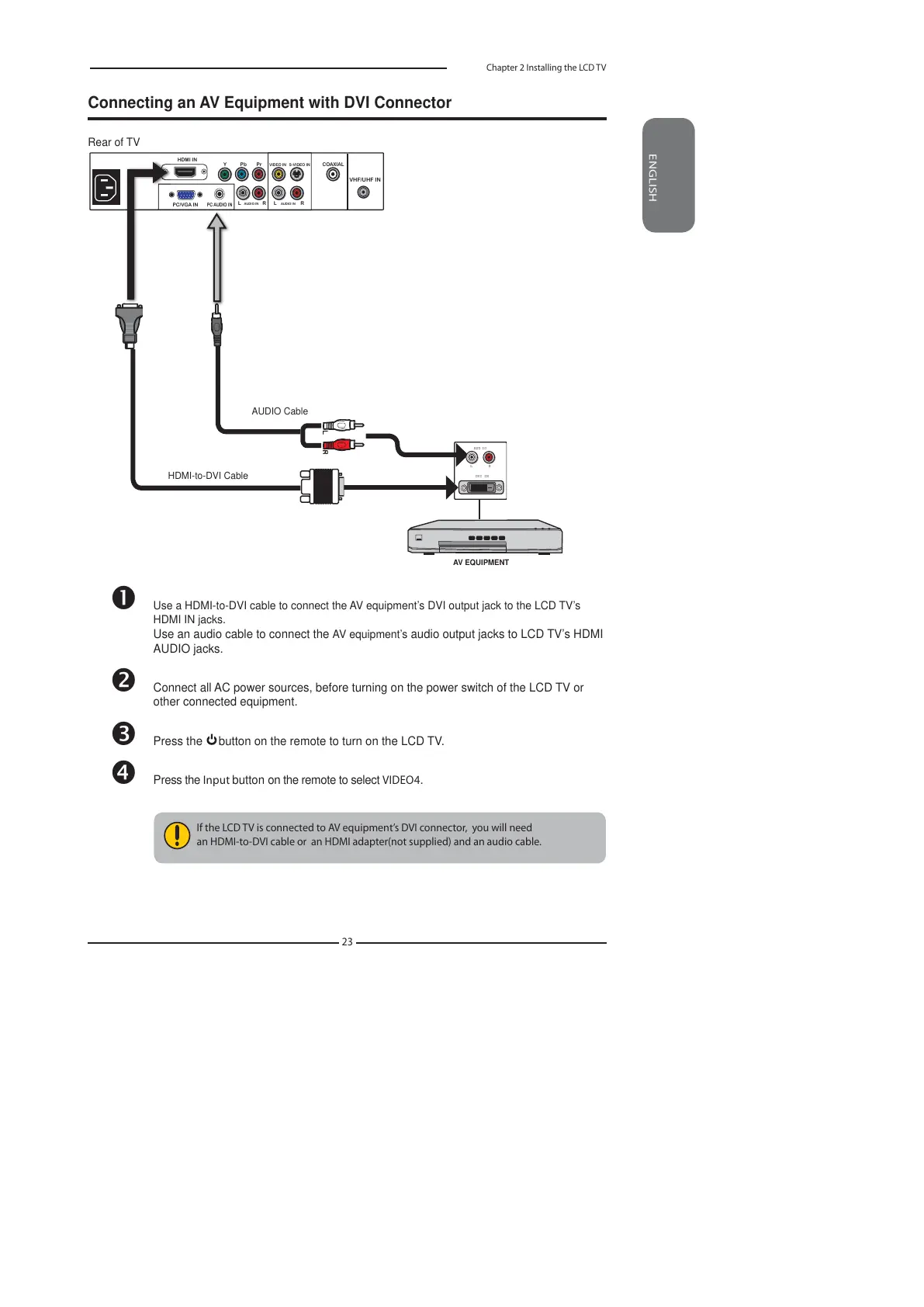

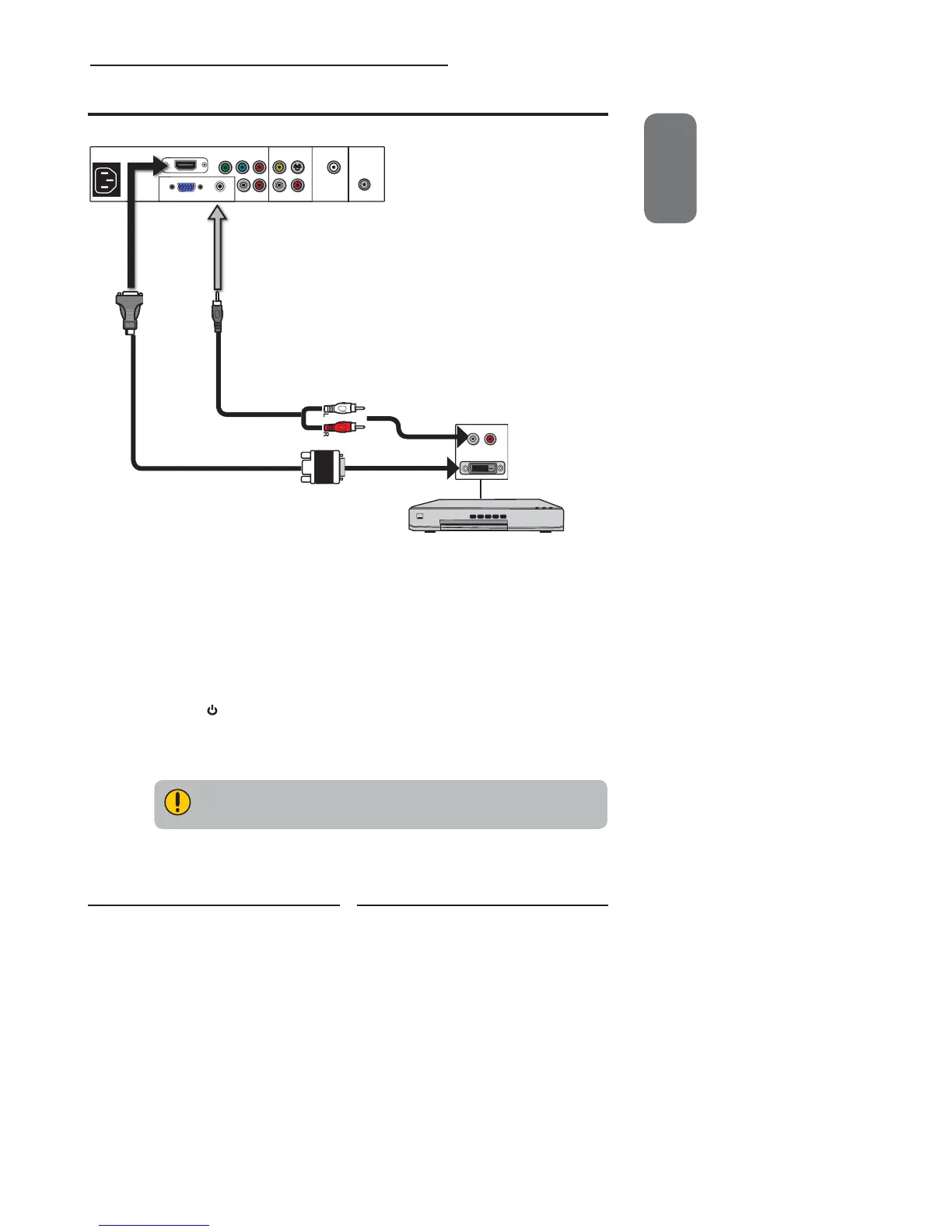

Connecting an AV Equipment with DVI Connector
If the LCD TV is connected to AV equipment’s DVI connector, you will need
an HDMI-to-DVI cable or an HDMI adapter(not supplied) and an audio cable.
AV EQUIPMENT
HDMI-to-DVI Cable
AUDIO Cable
DVI IN
AUD IO
LR
