84
5
Wrist
90°

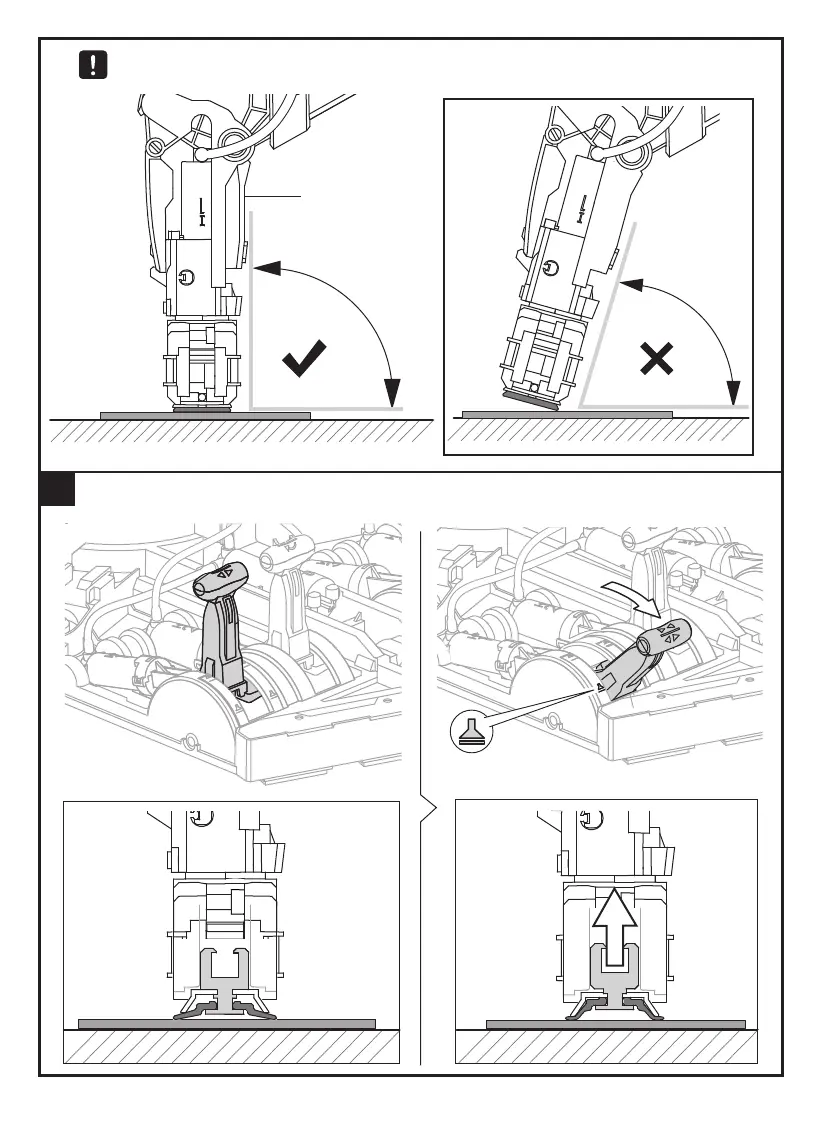

Direct the Wrist straight onto object.
Pull "Lever Controller 1" backward as below, and have the cup suck the object.
