Connecting the electro-fisher

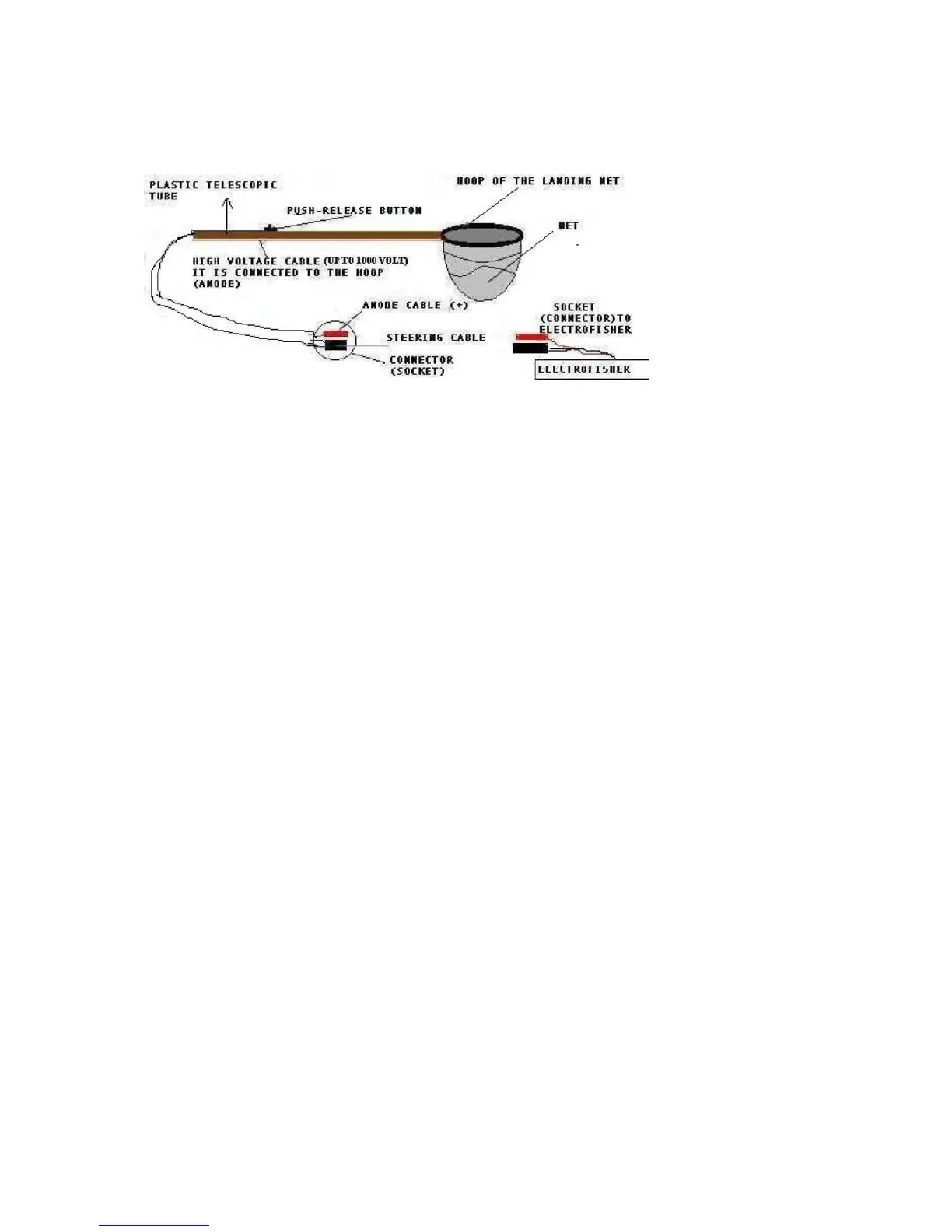

Sockets plus and minus (see photo) serve to install a
loading of electrofisher. The socket "+" is connected with cable
on the landing net. The socket "-" is connected with outer cable
with metal wire at the end (mass/minus) which is thrown into
water behind the boat or fisherman.
Cables of 12 Volt power supply are connected to the battery
"+" to "+" and "-". When user connects electrofisher in wrong
order - device will not work. User should correctly connect battery
to use electrofisher.
Socket "START" designed to connect a cable of steering by
the means of which the electrofisher is turned ON and OFF.
Green indicator shows the presence of high voltage on the outer
sockets of the electrofisher.
By the 2 knobs and display fisherman regulates and controls
parameters of the electrofisher.
Knob F serve to increase or decrease frequency of going out
impulses in accordance with clock direction.
