MAX. 5 FEET
4x

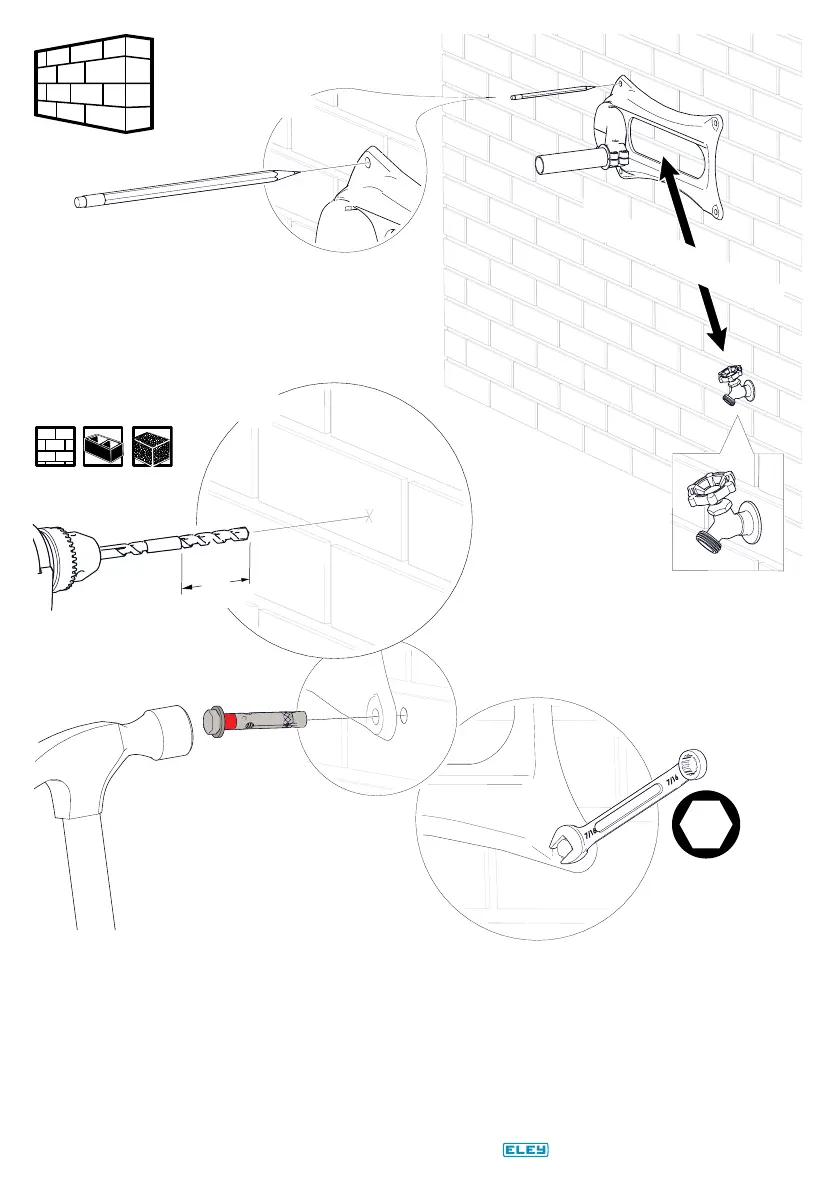

Locate base within ve feet of a faucet. Mark locations of the four
mounting holes on wall. Use a hammer drill and 5⁄16-inch masonry bit
to drill 1-1⁄2-inch deep holes. To ensure proper depth, mark drill bit with
tape 1-1⁄2 inches from the tip. Tap anchors through the base and into
wall. Tighten with a 7⁄16-inch wrench or socket—avoid overtightening.
2598
4x
1041 MASONRY WALL INSTALL
1
1
˝
—
2
5
˝
—
16
