ELEY 1041 - Stud Wall Mounting Instructions

7
16
/
11
55

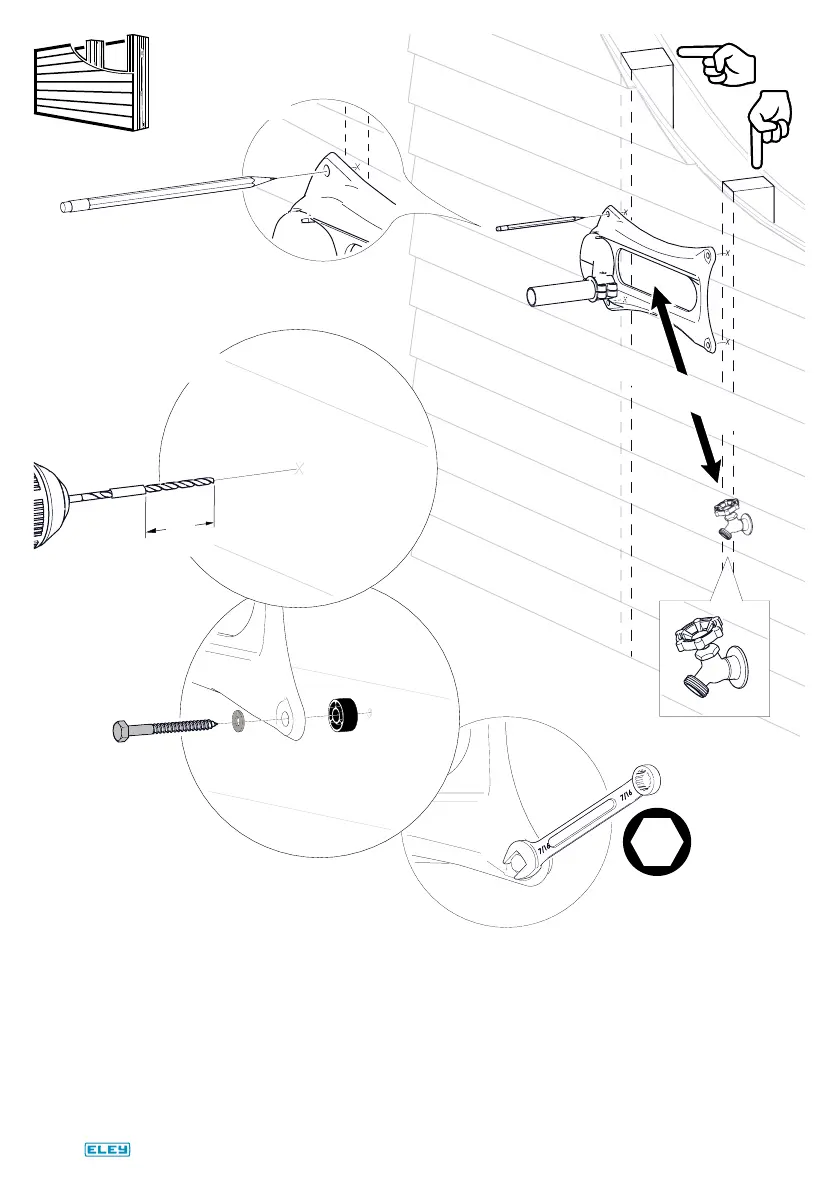

Locate base within ve feet of a faucet. Base must be fastened to two
studs. Mark locations of the four mounting holes on wall. Use a 1⁄8-
inch drill bit to drill 1-1⁄2-inch deep pilot holes. Fasten base to wall with
the four lag screws and at washers. If mounting to lap siding use the
standoffs (2510) between the base and siding as shown. Tighten screws
with a 7⁄16-inch wrench or socket—avoid overtightening.
MAX. 5 FEET
4x
!
2319
2331
2510
1
1
˝
—
2
1
˝
—
8
Ø
4x
1041 STUD WALL INSTALL
