2.2 Metal Pan Assembly
Place the metal pan on top of the scale as shown in the image below and push gently
downwards.

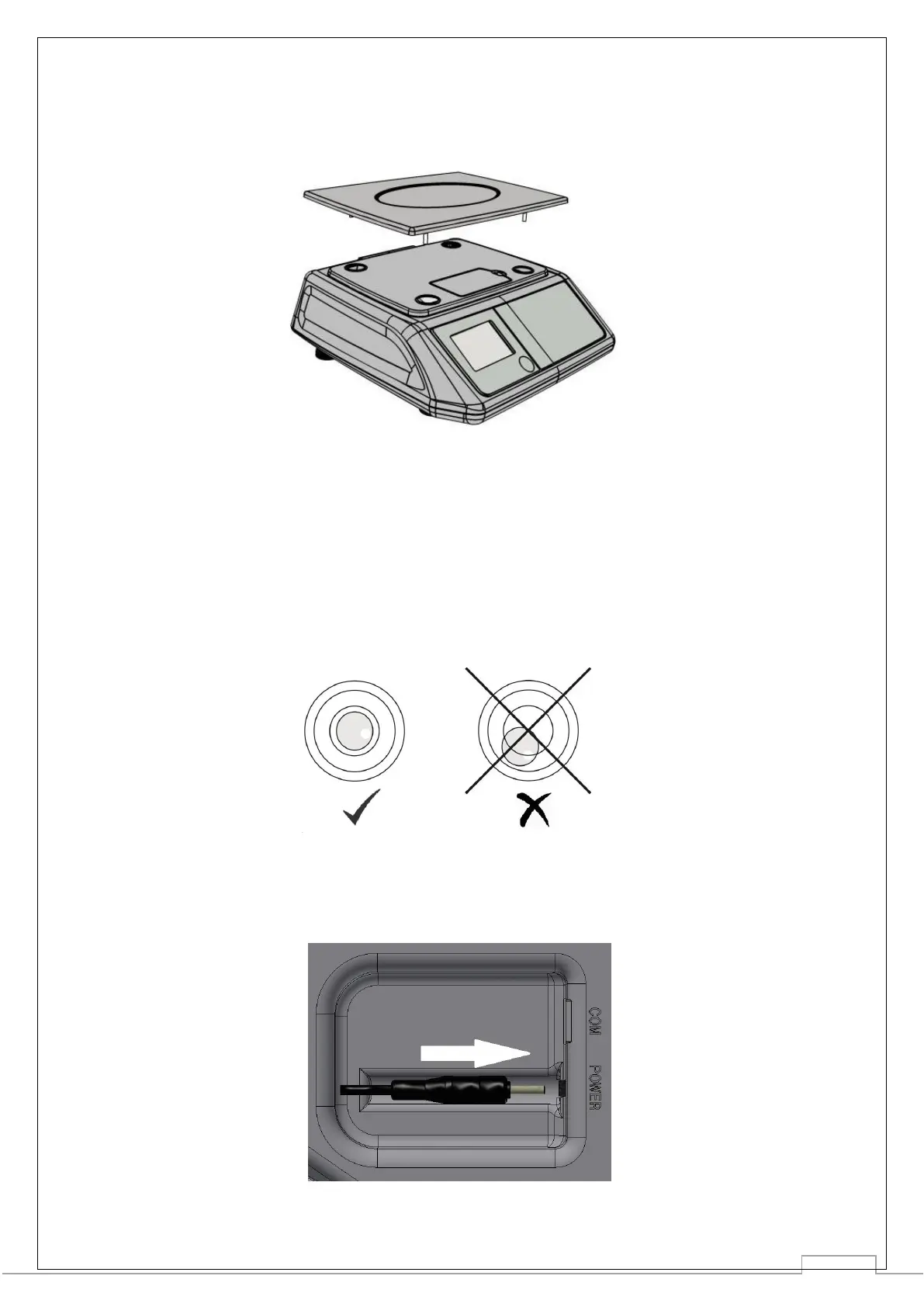

Fig. 2.1 – Fitting metal pan
2.3 Placing a nd Levelling the Sc ale
Ensure the scale is placed on a levelled and stable surface free from vibrations and away from
direct sunlight.
Once you have located the scale, level it by adjusting the four rotational regulation feet at the
bottom of the device so the bubble in the level indicator positioned under the front display is fully
centered.
Fig. 2.2 – Levelling indicator
2.4 Power Connection
S200 is powered through the manufacturer approved AC power adapter. First connect the
adapter cord to the scale’s power input jack and then plug the adapter to the power outlet.
Fig. 2.4 – Power adapter cord connection
