EL-Skyport Transmitter Eco
19349
Operating instructions :
2.4 GHz digital wireless Flash Trigger Transmitter
Features
EL-Skyport Transmitter Eco is designed with the latest 2.4 GHz Digital Wireless Technology.

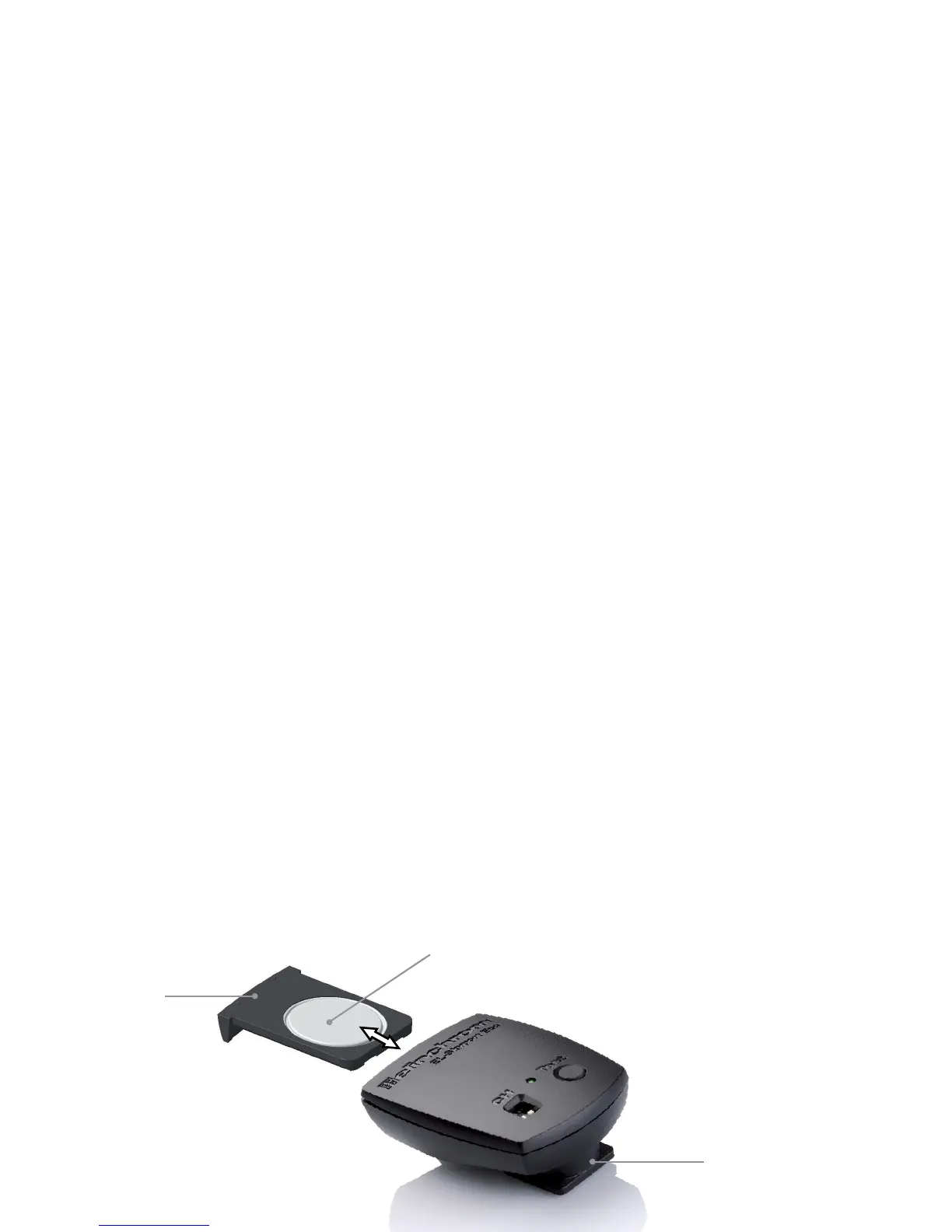

Hot-Shoe
Battery drawer
Battery (19372)
Minus pole on top
Fig. 1
Battery Installation
1. Pull the battery drawer out carefully
2. Place the Lithium battery, see Fig. 1 for polarity
3. Close the battery drawer
! CAUTION:
• Ensure correct polarity / minus pole on top
• Use Lithium Battery only CR2430 3.0V 19372
• Remove battery if the EL-Skyport Transmitter is not to be used for some time
• Never short-circuit battery poles
• Avoid direct sunlight or temperatures above 45°C. The battery may explode!
Hot-shoe Connector
The new Hot-shoe connector with middle contact synchronisation is designed to t digital and analogue
cameras with maximum sync output of 3 V (the middle contact is the positive pole).
Operating Instructions
• New extra features; congure EL-Skyport with the
new EL-Skyport PC/MAC software 3.0.
• The SPEED function is available for Ranger Quadra AS,
BXRi 250 / 500 and D-Lite it and all other units, when
used with the EL-Skyport Universal Speed.
You will appreciate the convenience of this new easy to
use and powerful wireless device.
Note: Shutter speed and distance range is inuenced by
interference from other 2.4 GHz electronic equipment.
and reections of ceilings, walls, oors, furniture, metall,
trees and humidiy in woods etc.
For best performance the Transmitter and Receiver should
have direct sight, without any walls or objects in between.
• SLR Camera Sync speeds: SPEED mode up to
1/250 s, STANDARD mode 1/160 - 1/200 s.
• 4 frequency channels.
• 40 Bit security encryption.
• Up to 50 m range indoors for standard mode and
up to 30 m in speed mode.
• Up to 80 m range outdoors for standard mode
and up to 40 m in speed mode.
• Battery life up to 6 Months - over 30’000 ashes.
• Test trigger button and feature button.
• Integrated Hot-shoe (middle contact).
• Two ash modes, standard and speed.
• Standard mode full compatible with previous EL-Skyport
versions.
• Status LED for EL-Skyport mode and battery status.
