3

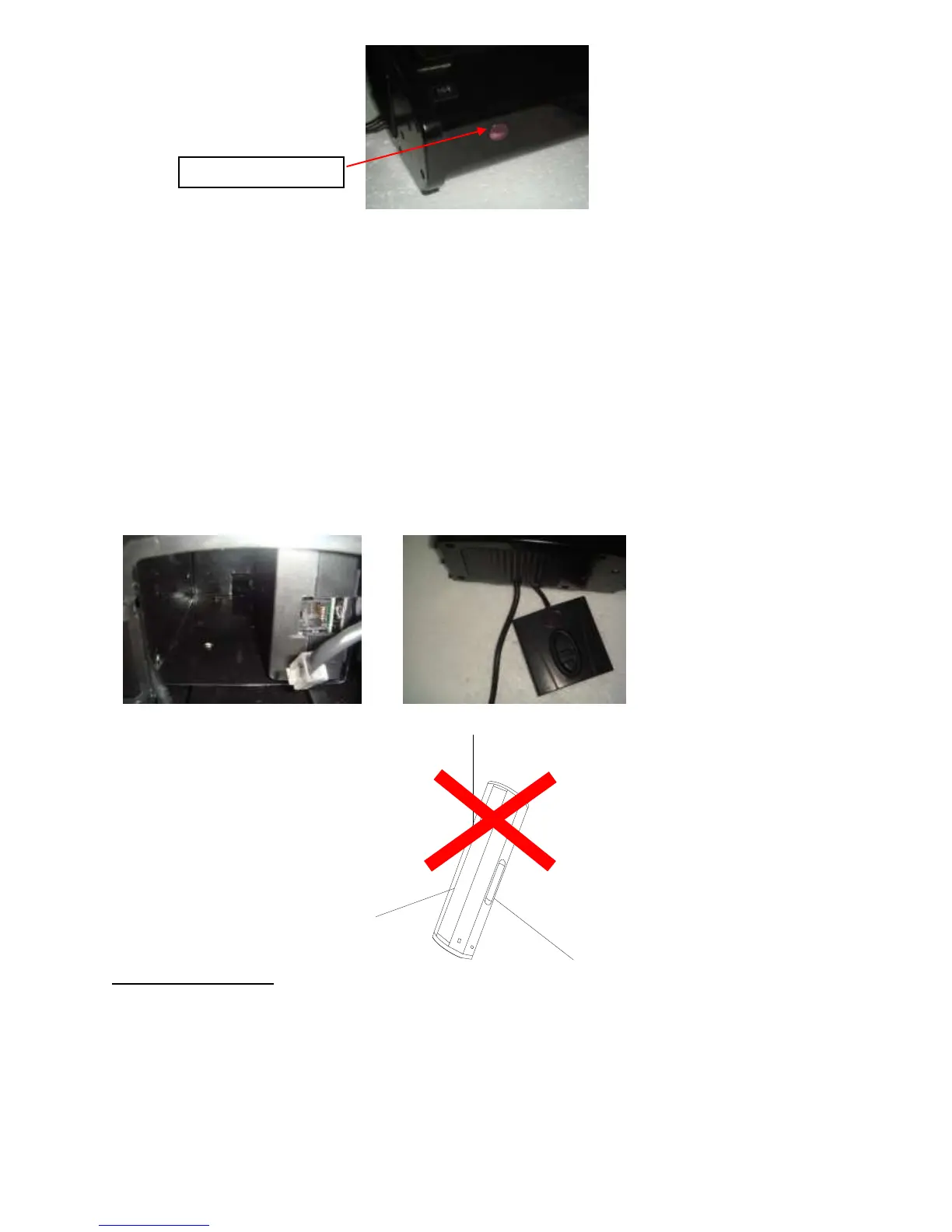

Controlling the Kestrel Series with the 5-12V trigger, Extended IR eye
receiver or 3-way wall box switch:
1. 5-12V Trigger: Connect the 5-12 volt trigger cable to your projectors trigger output via a separate
cable that may or may not be provided by the projector manufacture. The trigger feature will not
work without an output cable from the projector, but it can be tested using a 9-volt battery by simply
connecting the Red (+) and Green (-) cable to the 9-volt battery
2. IR Eye Receiver: The IR eye receiver cable provides an extension of the IR
sensor should the IR receiver window on the Kestrels screen is concealed.
3. 3-way wall switch box: The 3-way wall switch box allows manual control to operate the
screen’s UP/STOP/DOWN commands.
The RJ-45 input jack is located on the left side compartment which accepts the 5-12V trigger,
extended IR “eye” receiver or the 3-way wall switch box.
Storing the screen: Always store the screen flat horizontally. Never store the screen in
a vertical position.
Screen Maintenance
1. Always close the screen when not in use
2. Do not touch the screen surface
3. Keep away from direct sun and high/low temperatures
4. For indoor use only
5. Clean with soft water
6. Do not drop/close screen consecutively for more than 3 minutes. This is to avoid
overload protection shut-off. If automatic shut-off occurs, please wait for 20-30 minutes to
try again.
IR receiver window
