Setup Procedure
The frame and supports are made of 1 3/8” aluminum tubing with an anodized finish. Please follow the instructions in
this package. With proper care, your QuickFold screen will provide many years of reliable service.
fig 2
Top
fig 1
Two Section Frame
(For presentation screens that are less than 120” in diagonal measurement)

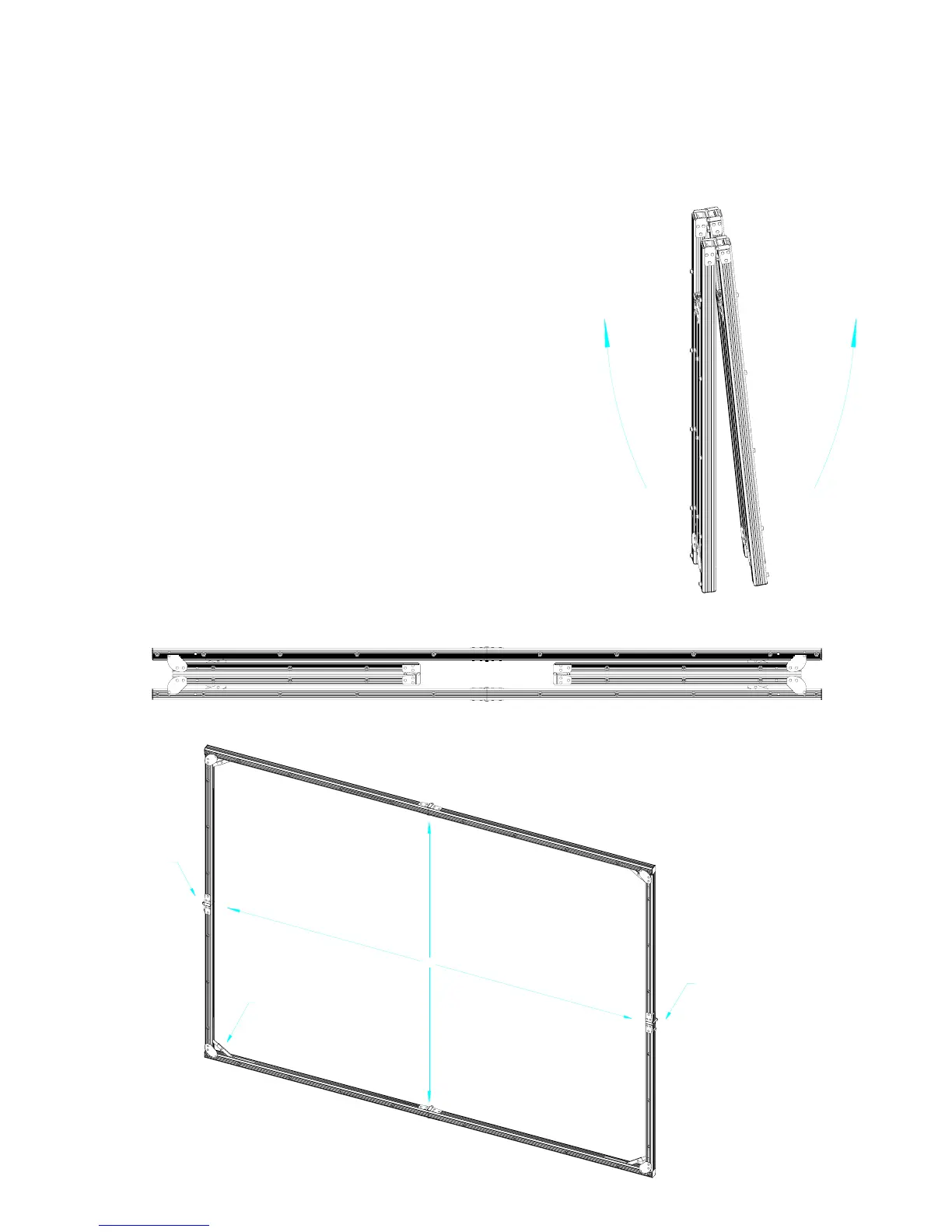

1. Take the frame out of the case and remove its wrappings. Unfold the
main joints as shown in (fig 1).
2. Once the main joints are unfolded, make sure that the snap latches
“click” into the locked position. The frame should now be fully
elongated as in (fig2). *Note: The snap latches will automatically
lock when the joint is straightened. Press the snap latch button in
order to release the lock.
3. While holding the bottom of the frame in place, lift the top of the
frame to unfold the sides which will cause the snap latches lock
when fully extended. Secure the corner braces into the locked
position. The screen frame should now be fully opened as in (fig 3).
fig 3
Lock down the corners
Snap latch
Snap latch
Top
To Next Page
