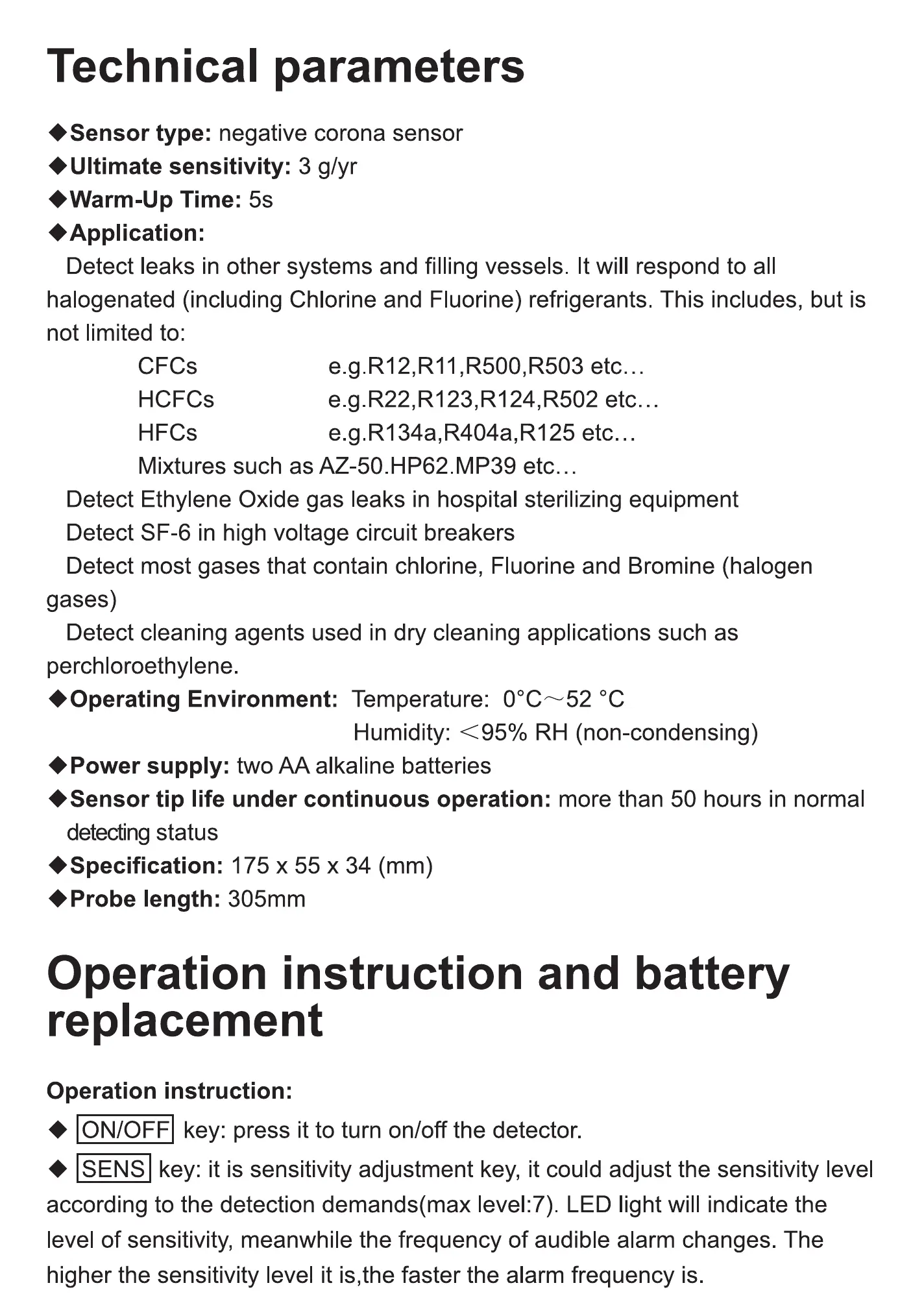

Technical parameters
•Sensor type: negative corona sensor
•Ultimate sensitivity: 3 glyr
•Warm-Up Time: 5s
•Application:
Detect leaks in other systems and filling vessels. It wil respond to all
halogenated (including Chlorine and Fluorine) refrigerants. This includes, but is
not limited to:
CFCs
HCFCs
HFCS
etc. .
e g etc.
Mixtures such as AZ-50.HP62 MP39 etc. .
Detect Ethy ene Oxide gas leaks in hospital sterilizing equipment
Detect SF-6 in high voltage circuit breakers
Detect most gases that contain chlorine, Fluorine and Bromine (ha ogen
gases)
Detect cleaning agents used in dry cleaning applications such as
perchloroethylene
•operating Environment: Temperature: OOC—52 oc
Humidity: RH (non-condensing)
•Power supply: two AA alkaline batteries
•Sensor tip life under continuous operation: more than 50 hours in normal
status
•Specification: 175 x 55 x 34 (mm)
•Probe length: 305mm
Operation instruction and battery
replacement
Operation instruction:
• key: press it to turn onloff the detector.
key: it is sensitivity adjustment key, it could adjust the sensitivity leve
according to the detection demands(max level:7). LED light wil indicate the
level of sensitivity, meanwhile the frequency of audible alarm changes. The
higher the sensitivity level it is,the faster the alarm frequency is
3
