Elived EV009 - Loosen the Screws; Tighten Screws; Product Dimensions

(Tilting)

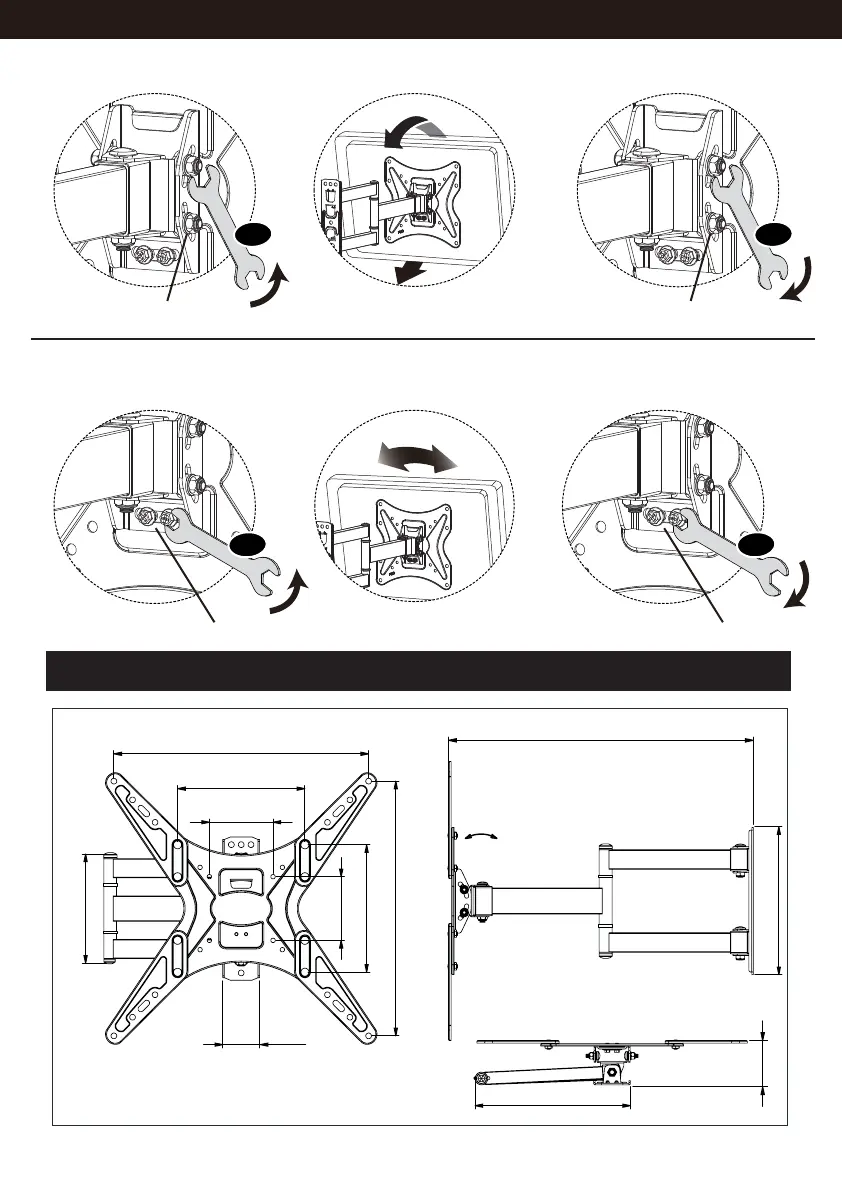

Product dimensions:
400mm(15.7”)
400mm(15.7”)
200mm(7.9”)
200mm(7.9”)
100mm(3.9”)
100mm
(3.9”)
171.5
56mm(2.2”)
224mm(8.8”)
484mm(19”)
+5°/-10°
245mm(9.6”)
69mm
(2.7”)
Loosen the screws Tighten screwsLevel the TV
± 3°
(Leveling)
Loosen the nuts Tighten the nuts
Tilt the TV
+5 /-10°
Tilting angle adjustment (+5° / -10°)
Adjust TV to your desired angle then fasten tilting nuts with open end wrench.
Leveling adjustment (-3°/+3°)
If needed, TV can be leveled ±3 degrees via adjusting the 2 screws with the
open end wrench.
- 10 -
Adjustments
C C
C C
