- 2 -
Hammer
3/8"(10mm)
Masonry Drill Bit
7/32"(5.5mm)
Wood Drill Bit
AwlStud Finder
Socket Wrench
1/2"(13mm)
ElectrodrillScrewdriverPencil
3
What is your wall
made of?
Solid concrete
wall?
● This product is designed for use in wood stud or solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by ELIVED.
● Incorrect installation may result in product damage or body injury. ELIVED shall
bear no responsibility for any damage or injury resulte
d from incorrect installation,
incorrect assembly or misuse.
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, contact Customer Service via
cs@elivedglobal.com
5
Safety Caution
2M2M
Band Tape
Drywall with
wood studs?
CAUTION:
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:
400mm/16"
MAX:400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
4
Installation Tools
(Not Included)
2 Does your TV
(including accessories)
weigh less than
88 LBS (40 KG)?

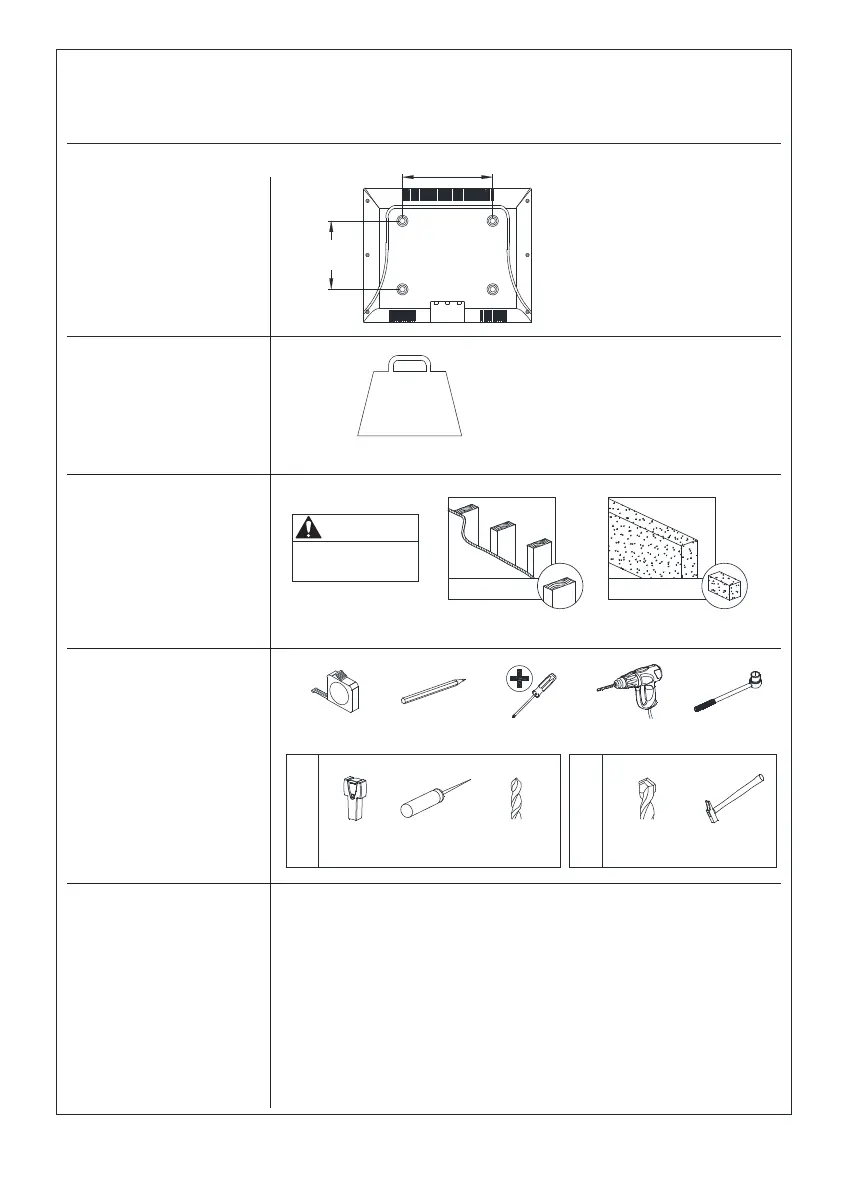

Before getting started, let’s make sure this mount is perfect for you!
88LBS
40KG
Max:
DO NOT install
into drywall alone
Perfect! Perfect!
Wood Stud Install
Concrete Install
1 Is your TV VESA
equal to/greater than
100x100mm/4x4"
andequal to/less than
400x400mm/16x16"?
To Next Page
