This document provides installation instructions for the ELIVED EV025 TV wall mount. It is a fixed TV wall mount designed to securely hold televisions to a wall.

Function Description

The ELIVED EV025 is a wall mount designed to securely attach a television to a wall. The installation process involves several steps, including attaching brackets to the TV, mounting a wall plate to the wall, hanging the TV onto the wall plate, and making final adjustments. The mount supports tilting adjustment, allowing the user to adjust the TV to a desired angle between 0° and -8°. It is suitable for both solid concrete walls and wood stud walls, but explicitly states that it should NOT be installed into drywall alone. The manual emphasizes safety precautions throughout the installation process, including ensuring the wall can support the combined weight of the TV and mount, and properly tightening all lag bolts.

Important Technical Specifications

TV Size Compatibility: 26" to 55"
VESA Compatibility:
- Minimum: 75x75mm (3x3")
- Maximum: 400x400mm (16x16")
Weight Capacity: Max 45 KG (99 LBS)
Wall Type Compatibility: Wood stud walls and solid concrete walls. NOT for drywall alone.
Tilting Adjustment: 0° to -8°
Product Dimensions:
- Wall Plate Width: 440mm
- Wall Plate Height: 100mm
- Bracket Height (Max): 425mm
- Distance from Wall: 40mm
Mounting Hardware Included:
- TV Screws: M4x12mm, M4x30mm, M6x15mm, M6x30mm, M8x25mm, M8x45mm
- Spacers: M8x10mm, M8x5mm
- Washers: M6
- Wall Plate: 1 piece
- Lag Bolts: M6x50mm (6 pieces for concrete, 4 pieces for wood stud)
- Concrete Wall Anchors: 6 pieces (for concrete installation only)
Tools Required (Not Included): Band Tape (2m), Pencil, Screwdriver, Electrodrill, Socket Wrench (10mm), 3/8"(10mm) Masonry Drill Bit (for concrete), Hammer, Stud Finder (for wood stud), Awl, 5/32"(4mm) Wood Drill Bit (for wood stud).

Usage Features

The ELIVED EV025 offers several features designed for ease of use and safety:

Tilting Adjustment: Users can easily adjust the TV's vertical angle from 0° to -8° to reduce glare and achieve optimal viewing. This adjustment is performed by loosening and then tightening tilting bolts by hand.
Quick Release Straps: The TV brackets feature pull-down straps that allow for easy hanging and removal of the TV from the wall plate, simplifying installation and maintenance.
Cable Management: Three Velcro cable ties are included to help organize and secure cables, contributing to a neat and tidy setup.
Bubble Level: A bubble level is provided to ensure the wall plate is installed perfectly horizontally, which is crucial for a straight TV display.
Clear Installation Steps: The manual breaks down the installation into clear, numbered steps with accompanying illustrations, making the process straightforward for users.
Wall Plate Installation Integrity Test: Before hanging the TV, the manual instructs users to perform a "wall plate installation integrity test" to ensure the mount is securely fastened and can support the TV's weight.

Maintenance Features

Regular Security Checks: The manual recommends checking that the bracket is secure and safe to use at regular intervals, specifically at least every three months. This helps ensure long-term stability and prevents potential issues.
Durable Construction: While not explicitly detailed, the use of robust mounting hardware like lag bolts and concrete anchors suggests a design intended for long-term durability and secure attachment.
Indoor Use Only: The product is designed for indoor use, which is a key maintenance consideration as outdoor exposure could lead to product failure and personal injury.
Contact for Questions: The manual provides contact information for any questions or doubts regarding installation, assembly, or use, facilitating support and troubleshooting.

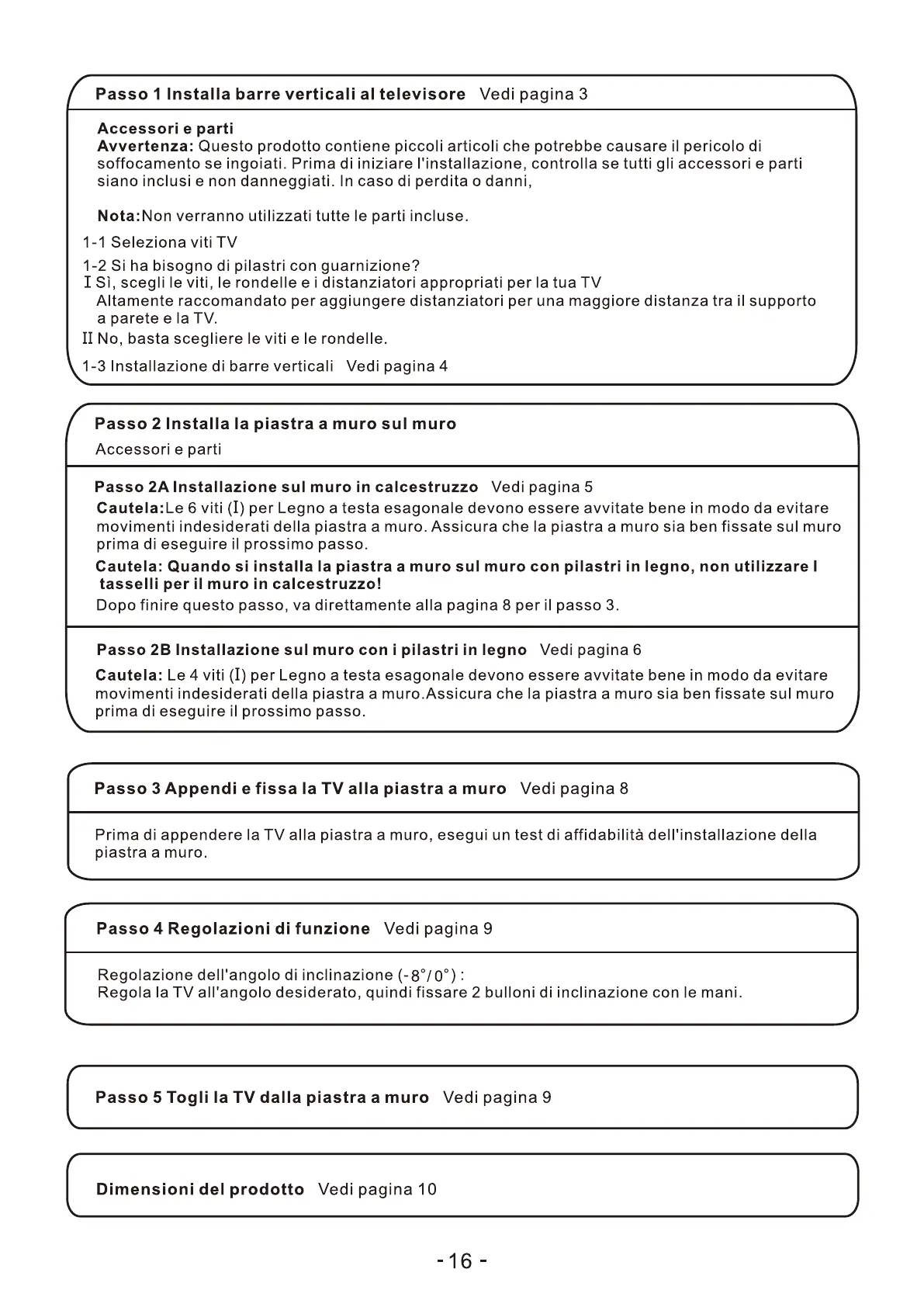

Elived EV025 - Page 16
