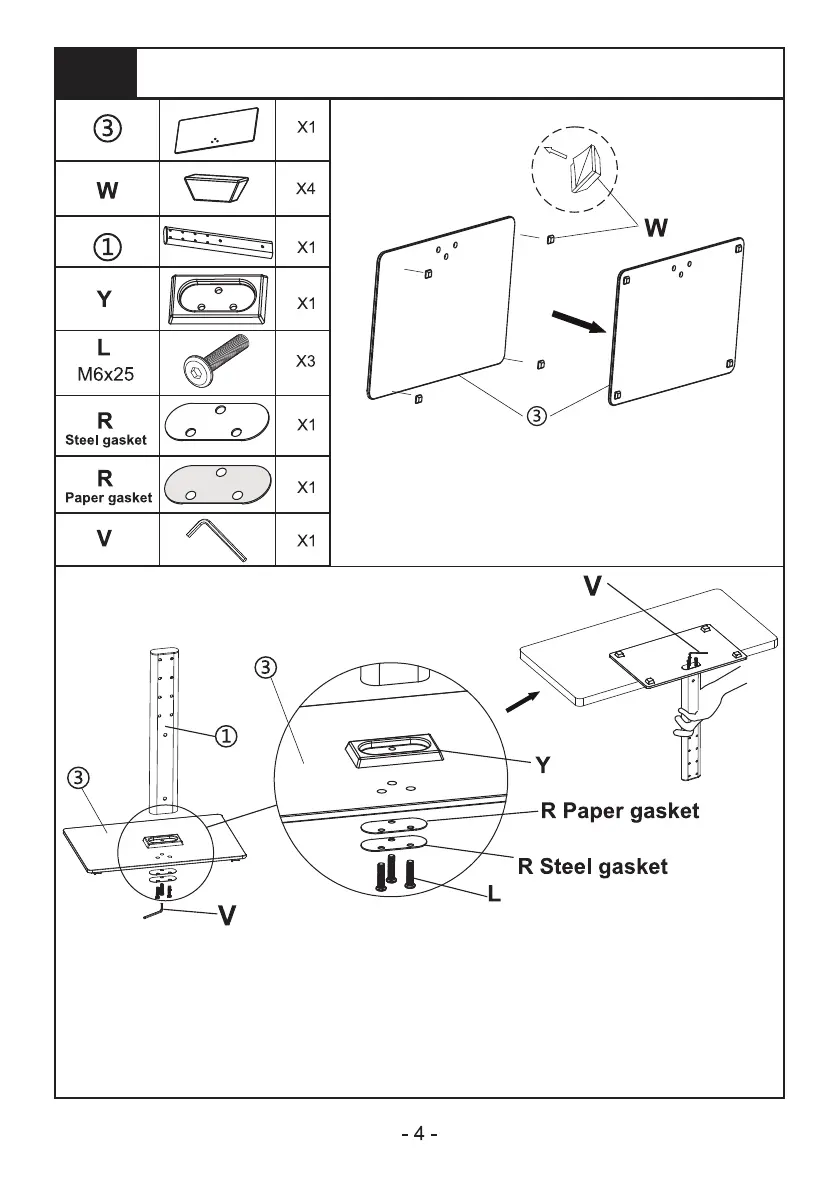

Elived YD4001 - STEP 1 Connecting the Support Pillar ① to Tempered Glass Base ③

STEP 1
1-2
1-1
Connecting the Support Pillar ① to Tempered Glass Base ③
Put tempered glass base ③ on the table. Put steel gasket (R), paper gasket (R) and M6X25
bolt (L) under tempered glass base
③. Make sure the paper gasket (R) face to the tempered
glass base
③.
Turn plastic cover (Y) and support pillar
① upside down under tempered glass base ③
and then tighten the bolts (L) with the allen key (V).
Attach foot pads (W) on the bottom of the tempered
glass base ③ at the corners.
