Installation manual Laser scanne
D-ID: V1_3 – 06.19 Changes can be made without further notification! 17

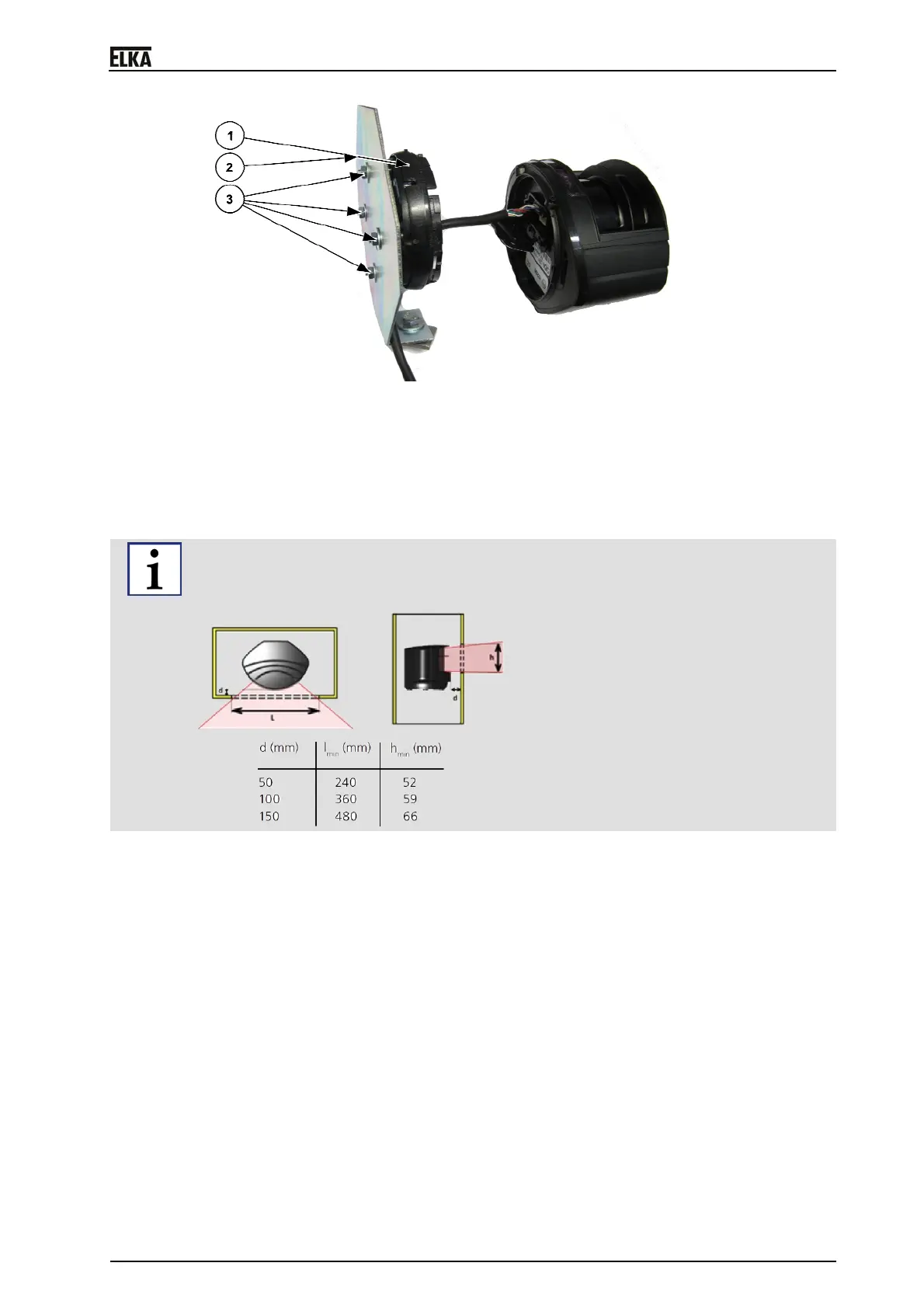

Drawing 15
1 Mounting base
2 Mounting plate
3 Fixing screws M4
Fasten the mounting base to the mounting plate by using the M4 mounting screws as shown in the
drawing.
When mounting the laser scanner, ensure the correct positioning inside of the additional housing. The
viewing window and the detection field of the laser scanner must not be reduced by using the
additional housing or any other (on-site) covers.
