Installation manual Laser scanne
D-ID: V1_3 – 06.19 Changes can be made without further notification! 18
6 Cable protective tube
The connection cable of the laser scanner must be protected (depending on the installation location) on
the rear side against mechanical influences. If necessary, install the cable protection tube as shown in
the following illustrations.

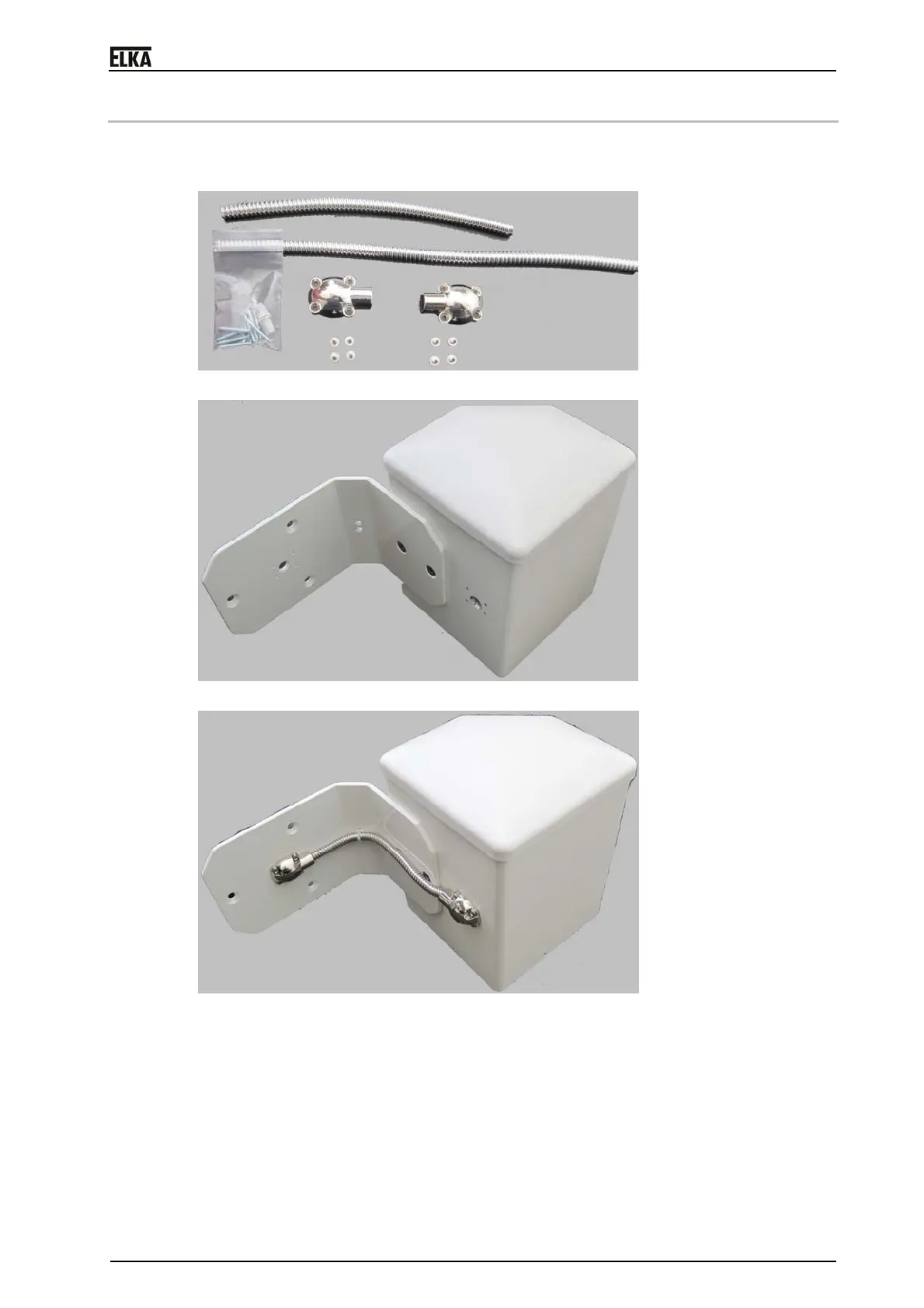

Drawing 16
Drawing 17
Drawing 18
