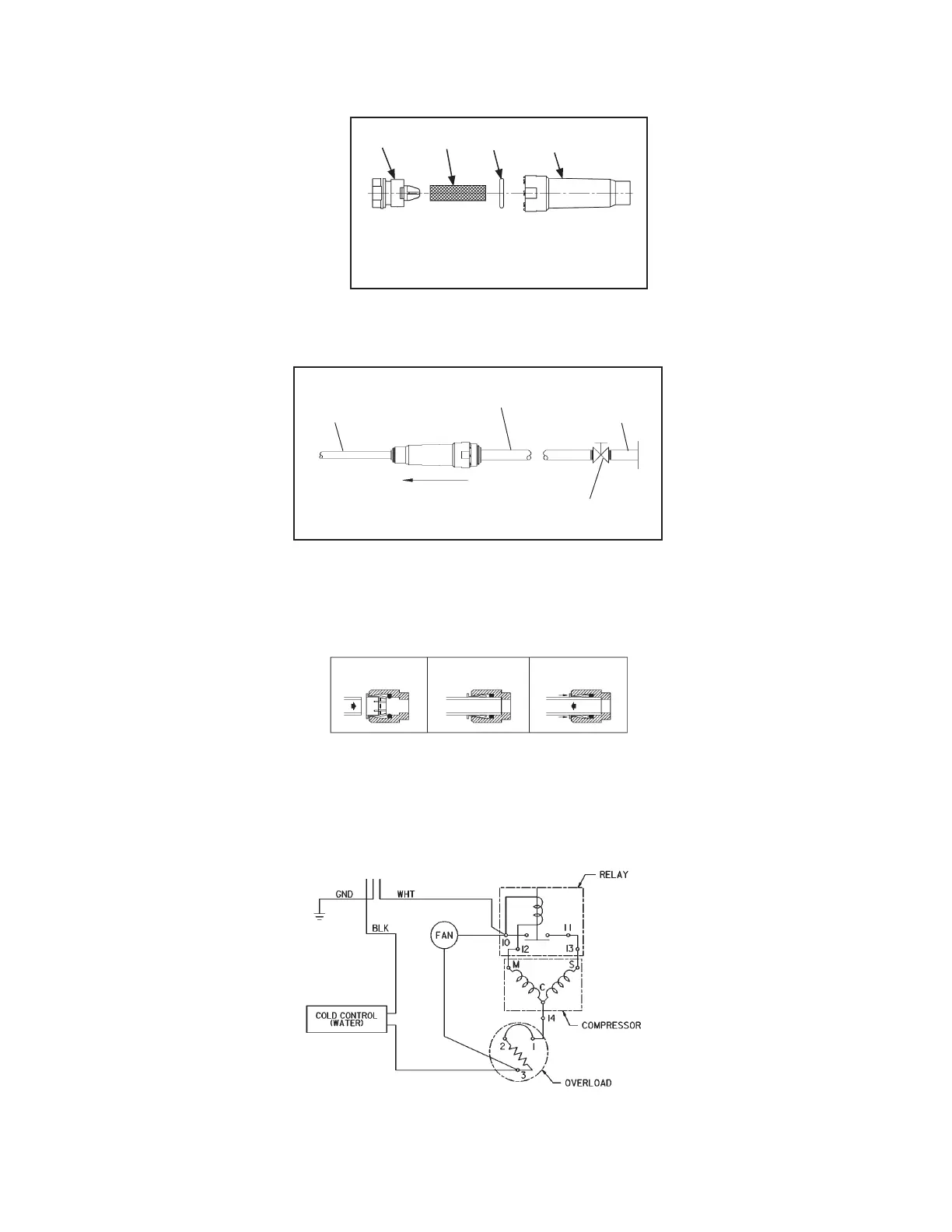

Elkay ECH8 1P User Manual

Page10
Elkay Manufacturing Company (630) 574-8484
2000000694 (Rev. A - 07/22)
ECH8_1P ECH8_2P ECH8_3P
Wiring Diagram
TUBE IS SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
Operation of Quick Connect Fittings
Fig. 3
A
C
B
D
A=Plugwith7/8"(22.2mm)Hex
B = O-ring
C = Screen
D=StrainerBodywith1"(25.4mm)Hex
Fig. 1
NOTE: WATER FLOW
DIRECTION
BUILDING WATER INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO CHILLER
3/8" O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY
Fig. 2
Fig. 4
