Elkay ECH8 1P User Manual

ECH8_1P ECH8_2P ECH8_3P
(630) 574-8484 Elkay Manufacturing Company
2000000694 (Rev. A - 07/22)
Page 11
ITEM
NO.
PART NO.
1
2
3
5
6
7
9
10
12
13
14
15
16
17
1100000006
28478C
98776C
20282C
98778C
66703C
98773C
28477C
98777C
50930C
27303C
22300C
55996C
56237C
115V/220V-50/60Hz
DESCRIPTION
*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY, REPLACE WITH SAME COMPRESSOR USED IN
ORIGINAL ASSEMBLY.
NOTE: All correspondence pertaining to any of the above water chiller or orders for repair parts MUST include
model number and serial number of chiller, name and part number of replacement part.
Kit - Evap Replace Assy
Cabinet
Kit - Condenser/Drier
Bracket - Fan Mounting
Kit - Heat Exchanger/Drier
Drier
Kit-ColdControl/Screws
Panel - Front
Kit-CompressorMtgHdwe
Bumper
Baseplate
Panel - Rear
In-line Strainer
Fan Shroud
ITEM
NO.
PART NO.
220V - 50/60HZ
DESCRIPTION
4
*8
11
0000000244
0000000245
1000002147
1000002146
98751C
98752C
Kit - Fan Mtr/Blade/Nut/
Shroud(50HZ)
Kit - Fan Mtr/Blade/Nut/
w/oShrd(60HZ)
Comp.ServicePak(50HZ)
Comp.ServicePak(60HZ)
Kit-Elect/Relay/Cover/OL(50HZ)
Kit-Elect/Relay/Cover/OL(60HZ)
ITEM
NO.
PART NO.
115V
DESCRIPTION
4
*8
11
98775C
36322C
0000000238
Kit - Fan Mtr/Blade/Nut/Shroud
Compressor Service Pak
Kit - Elect/Relay/Cover/OL
15
16
4
14
7
6
9
8,11
13
3
2
1
10
5
17
12

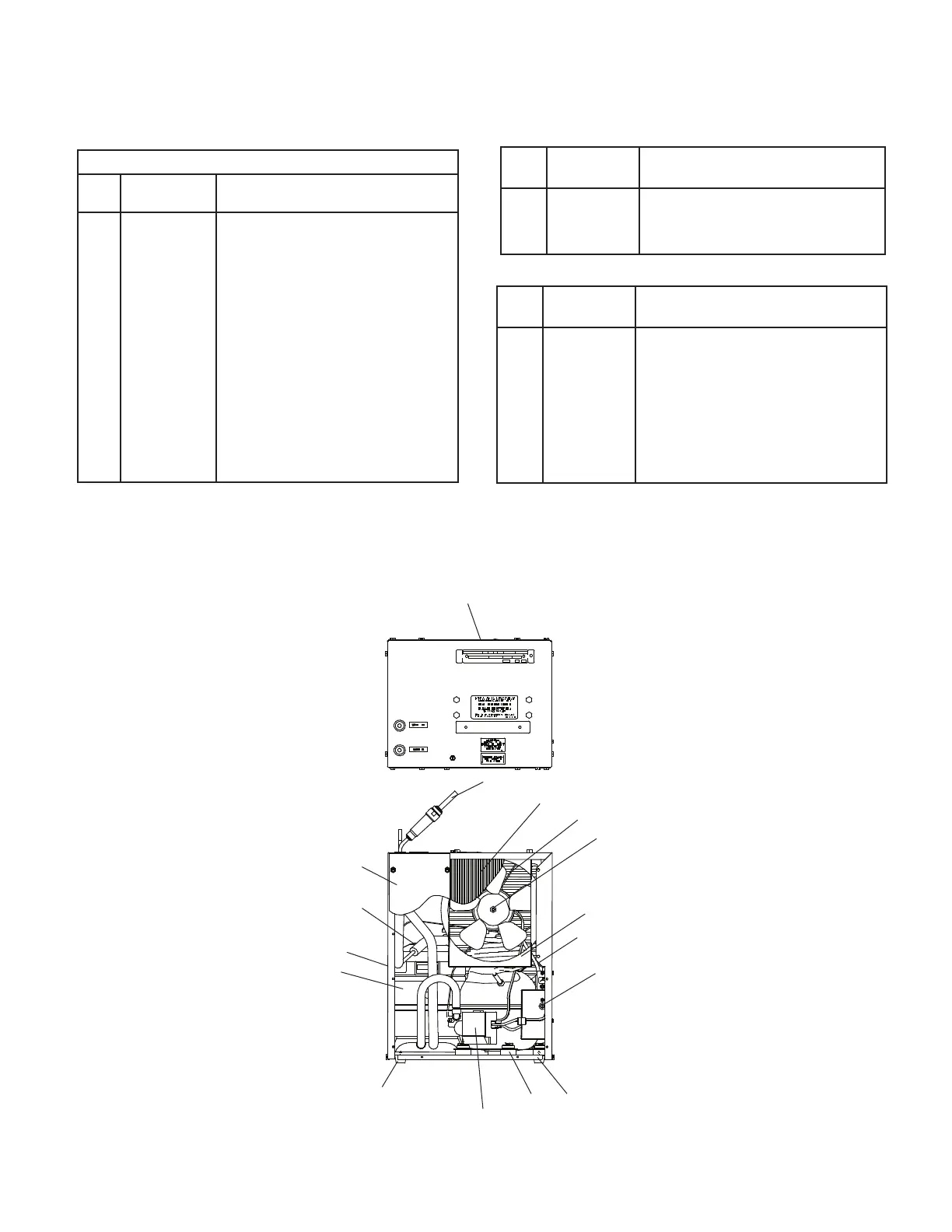

Fig. 5
REPLACEMENT PARTS LIST
