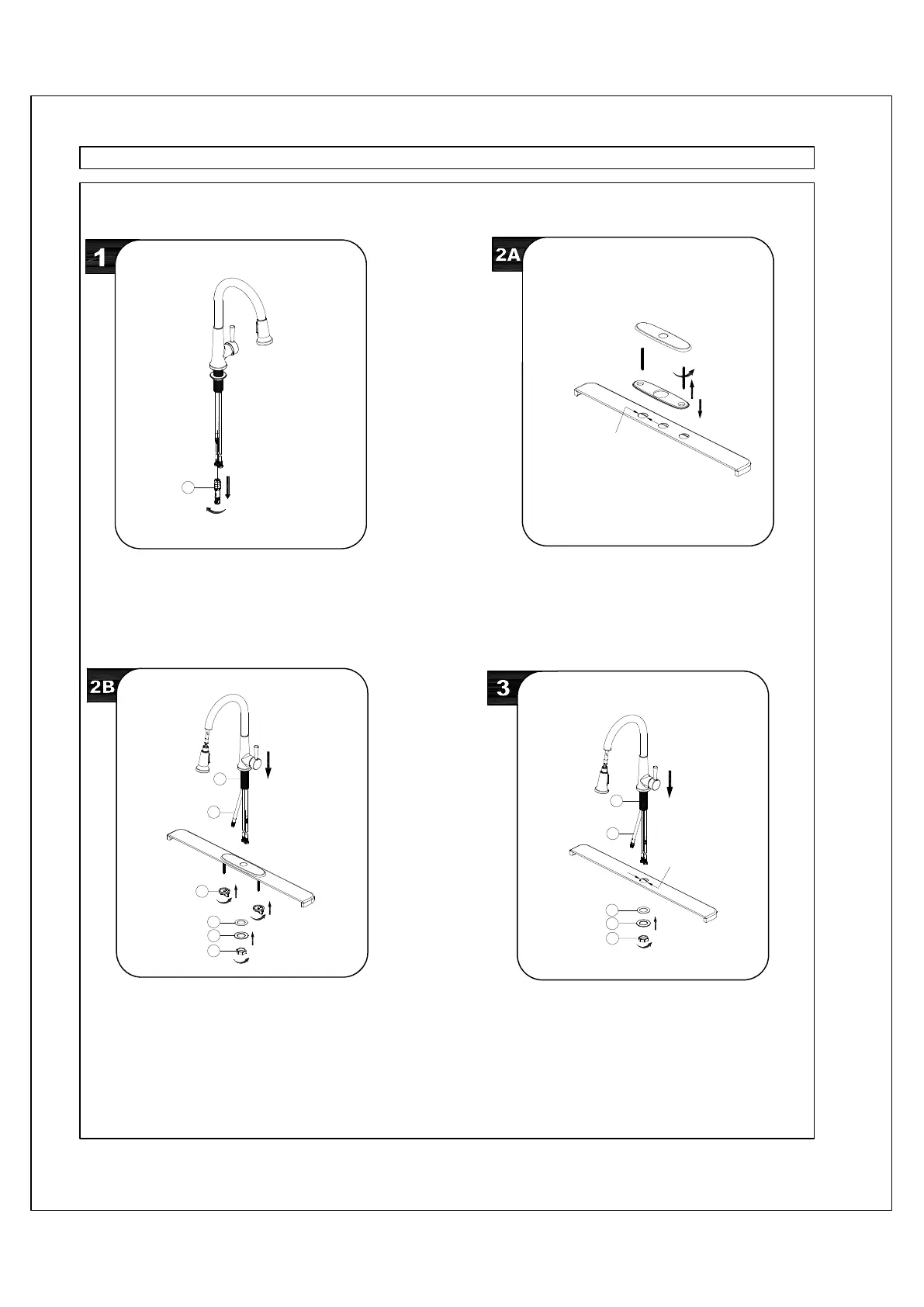

Retract pull-out hose (1) up through faucet body, until the
pull-out hose fitting is flush with the bottom of shank (2).
Do not pull hose fitting past the shank. Insert faucet body
through the hole in escutcheon.
Note: Do not feed the pull-out hose (1) back down
through the spout until step 4.
From underneath sink, hand tighten mounting nuts (3).
Install plastic washer (4) and metal washer (5) onto the
threaded mounting shank. Thread nut (6) onto mounting
shank. Do not overtighten.
Retract pull-out hose (1) up through faucet body, until
the pull-out hose fitting is flush with the bottom of shank
(2). Do not pull hose fitting past the shank. Insert faucet
body through the hole.
Note: Do not feed the pull-out hose (1) back down
through the spout until step 4.
Install plastic washer (3) and metal washer (4) onto the
threaded mounting shank. Thread nut (5) onto mounting
shank. Do not overtighten.
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
Shut off water supplies.
Before installation, remove quick connect assembly (1)
from the free end of pullout hose.
If installing the faucet with the large escutcheon, begin
with step 2A. If installing the faucet with small
escutcheon, begin with step 3.
STEPS:
Before installation, screw bolts to the large escutcheon.
Insert escutcheon assembly through the gasket and the
holes of the sink.
1
1
2
3
4
5
6
2
1
3
4
5
3-Ø1 3/8" (Ø35mm)
Ø1 3/8" (Ø35mm)
To Next Page
