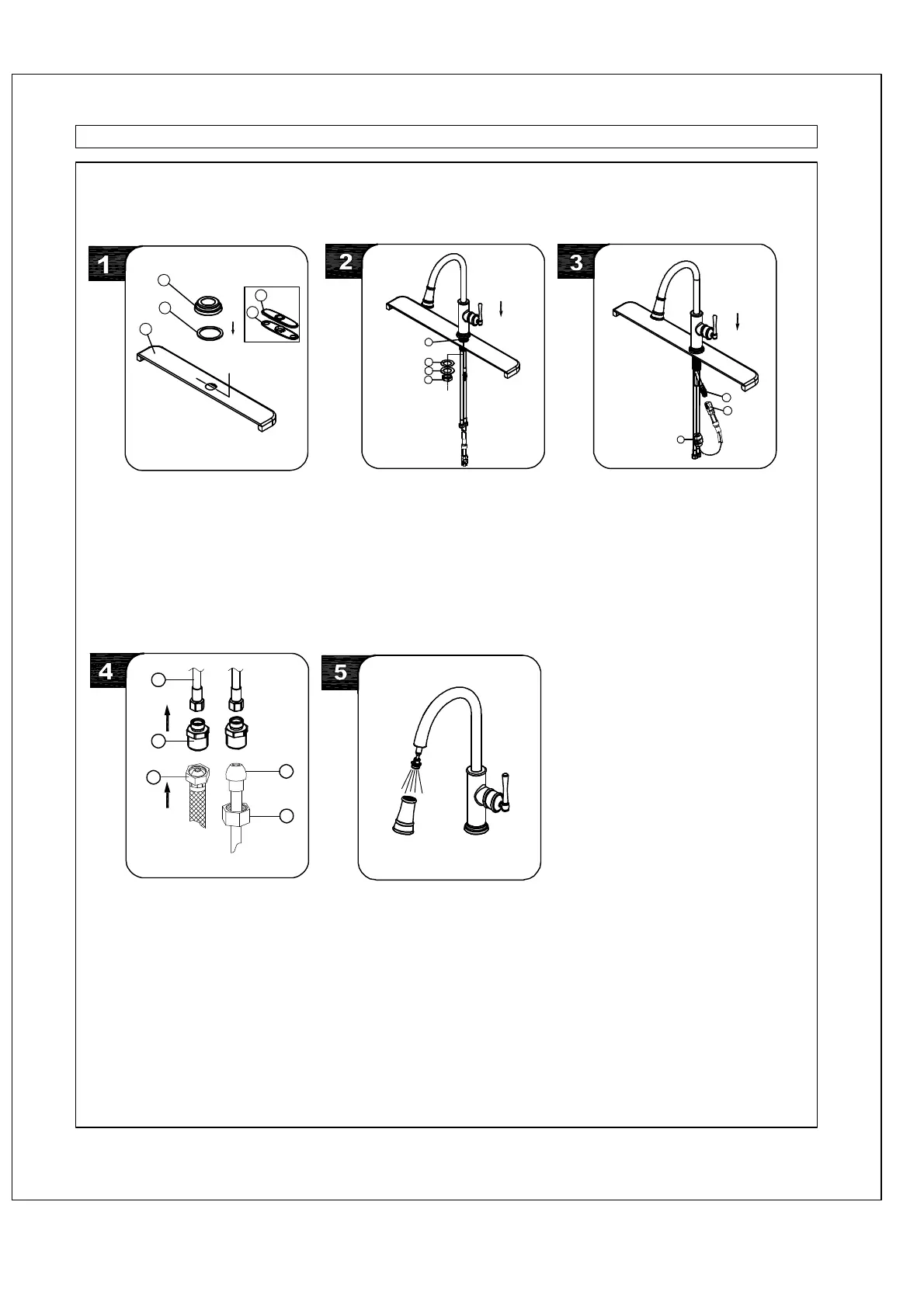

From underneath the sink,align block ①
and tabs ② on quick connects.Push quick
connect housing firmly upward and snap
onto receiving block. Pull down
moderately to ensure connection has
been made. If it is necessary to remove
quick connect, squeeze tabs on hose
between index finger and thumb, then pull
down to disconnect. After connecting the
hose, install the weight ③ at the lowest
point of the hose.
Place faucet through the hole in top of
sink. From underside, assemble rubber
washer ①,metal washer ② and nut ③
onto long shank ④ and tighten nut ③.
Firmly tighten the nut ③ to metal washer
②. Do not overtighten.
Shut off water supplies.Clean sink surface.
Place washer ② and flange ① on the sink ③.
If you do not use flange,please use
escutcheon ④ and gasket ⑤ to replace
flange and washer.
Important: after installation is completed,
turn on hot and cold water supplies. Pull
the hose assembly out of the spout and
remove the spray head by unscrewing it
from the hose counterclockwise. Be sure
to hold the end of the hose down into the
sink and turn the faucet on to the warm
position where it mixes hot and cold
water. Flush water lines for one minute.
Check for leaks. Re-tighten any
connections if necessary, but do not
overtighten. Reinstall spray head by hand
tightening it back onto the spray hose.
Make connections to water lines with 3/8"
female compression supply hoses.
If additonal length is needed,attach incuded
1/2" MIP thread adaptors ② to the supply
hoses ①.Use 1/2" I.P.S. faucet connections
③ or use coupling nuts ⑤
with 3/8" O.D.ball-nose riser ④ to make
connections to the water lines. Do not
overtighten.
3
4
5
1
2
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
4
5
3
2
1
Ø 1 3/8''
Ø35mm
1
3
2
4
3
2
1
STEPS:
