The Cable Tester comes with :
¾ One remote identifier #1 (Optional 1 for #2, #3 & #4 , optional 2 for #5, #6, #7 & #8).
¾ One patch cable (RJ-45 to RJ-45, 30cm long).
¾ RJ45-RJ45 female coupler/connector.
¾ Instruction manual.

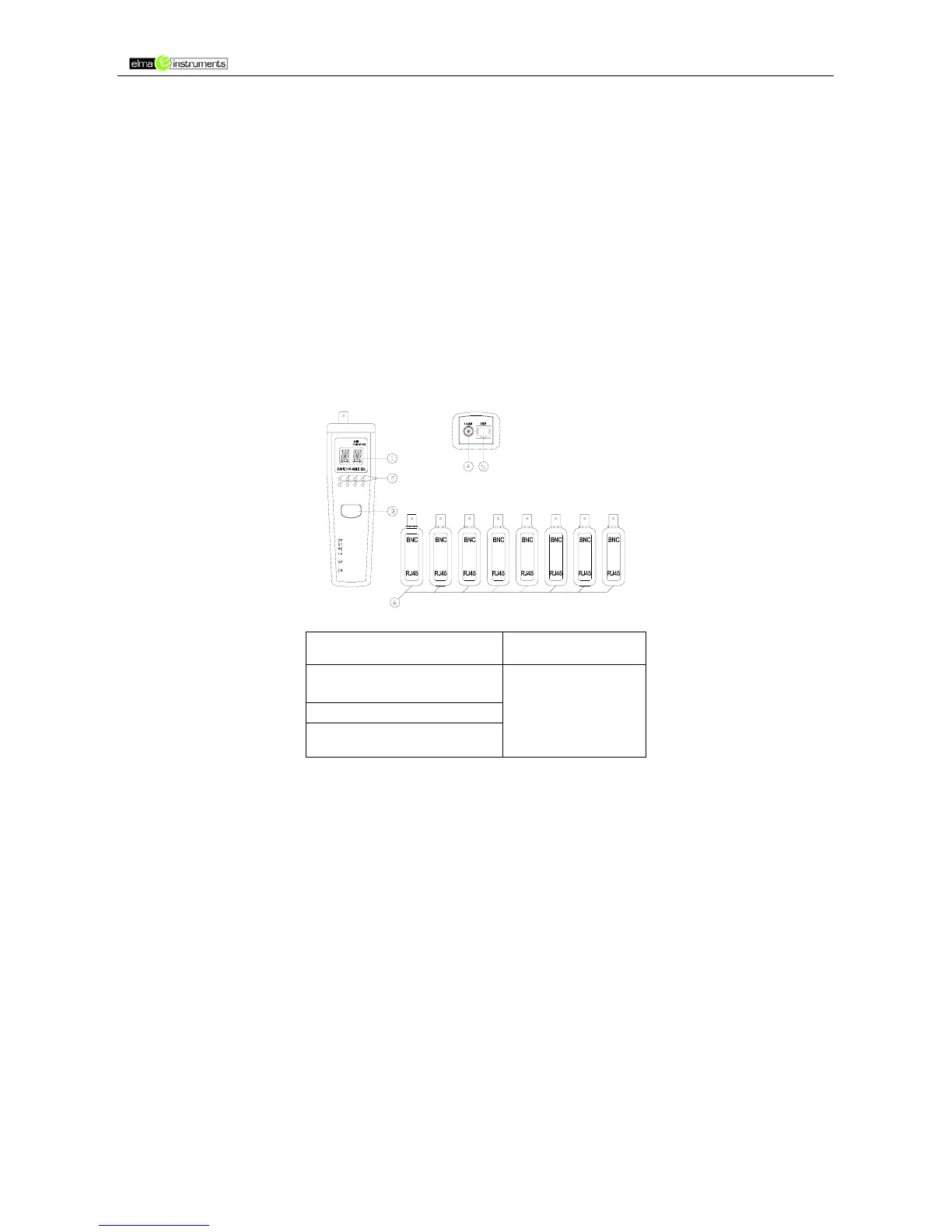

2. Product Profile
1
= REVERSED
= SHORT
BATTERY
= CROSSED
PAIRS
PAIRS
= SPLIT
= LOW
= OPEN
STATUS
PAIRS TEST
FAULTS
TEST
3/61/2 4/5 7/8
2 3 4 5 6 78
c ALPHANUMERIC LED DISPLAY
(FAUTLS DISPLAY).
g RJ45.
d RJ45 LAN CABLE PAIR LED
DISPLAY (ONLY 1/2 for BNC
TEST).
e TEST BUTTON.
f BNC JACK.
h REMOTE IDENTIFIERS
#1 (#2, #3, #4 are
OPTIONAL1)
(#5, #6, #7, #8 are
OPTIONAL 2)
3. Features
¾ Tests a wide range of FTP & UTP cables such as 10BaseT, 100BaseTx, 10Base2
(Coax), 356A, TIA-568A, TIA-568B, Token Ring, etc.
¾ Tests for wiring faults such as open, shorted, reversed, crossed and split wires.
¾ Identifies up to 8 different cables at one end with remote identifiers.
¾ Two large alphanumeric LED and 8 analogue pair LED clearly display fault status.
¾ Simple and practical to use.
¾ Over voltage (max.56V) is provided to prevent damage from miss connecting to live
circuit of networking.
