Elma 45 - Specifications

Elma 45 Page 36
4. Specifications
¾ Connectors: Cable tester RJ45 and BNC, female
Remote identifier-RJ45 and BNC, female
¾ Tested pairs: 1/2, 3/6, 4/5 and 7/8.
¾ LED display: Four FAIL (red) LED.
Four PASS (green) LED.
Two alphanumeric 16 segment LED.
¾ Faults status: Open, Shorted, Reversed, Crossed, Split and Low battery.
¾ Test cable length: Maximum: 150M (492ft)
¾ Battery: Use one 9V alkaline battery.
¾ Battery life: Can operate testing up to 1200 times.
¾ Size: Cable Tester 170×50×39mm
Remote identifier 60×23×22mm
¾ Weight: Cable Tester 180g
Remote identifier 35g

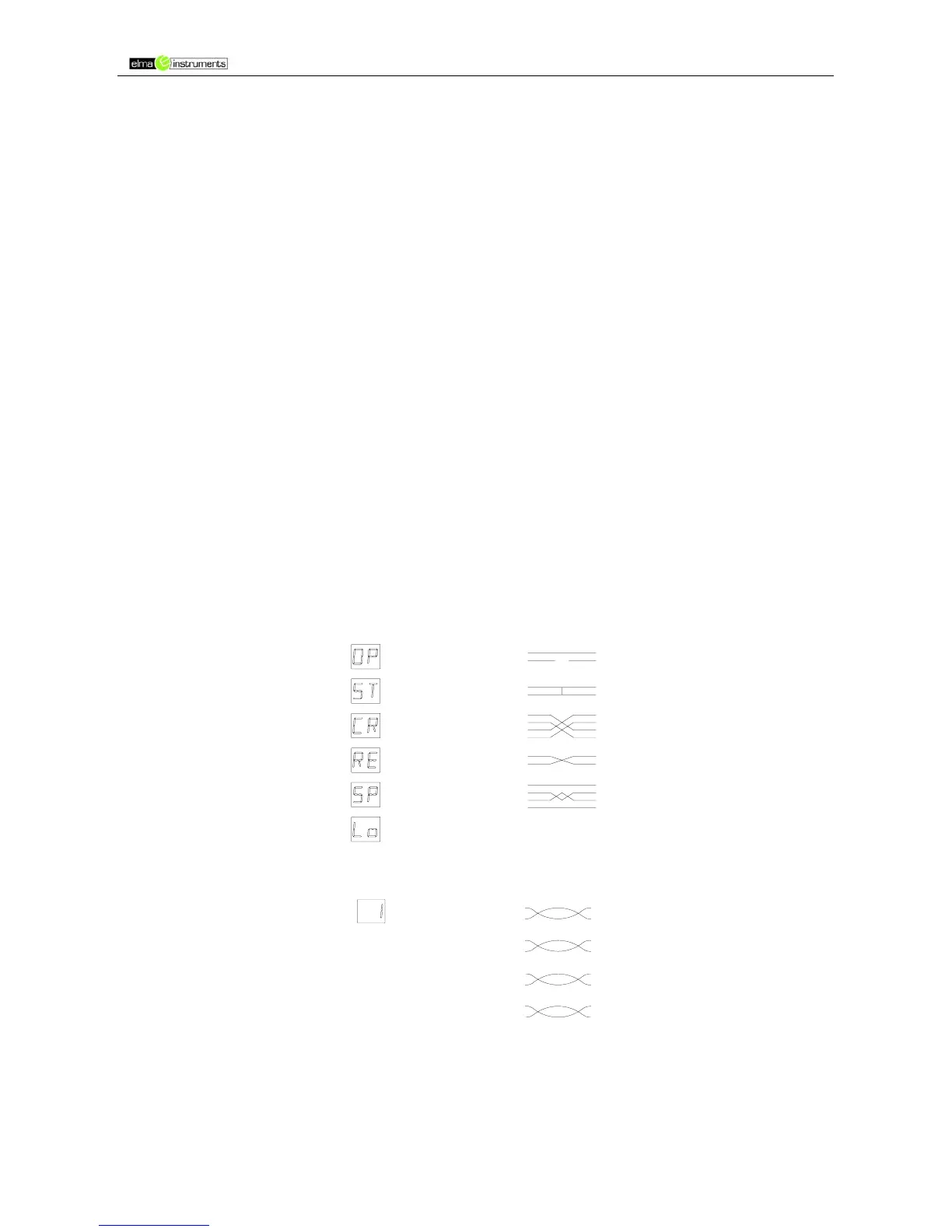

5. Status
1
2
1
2
1
2
3
6
1
2
1
2
3
66
2
3
2
1
1
6
3
1
2
2
1
1
2
PAIR 1 & 2
PAIR 1,2 & 3,6
LOW BATTERY
OPEN
SHORTED
CROSSED
REVERSED
SPLITED
PAIR 1,2 & 3,6
PAIR 1 & 2
PAIR 1 & 2
6
3
6
3
Correct Pair Wiring
2
1
2
1
5
4
5
4
8
7
8
7
Show cable identifier #1
