Ring outside engravings with ring outside module

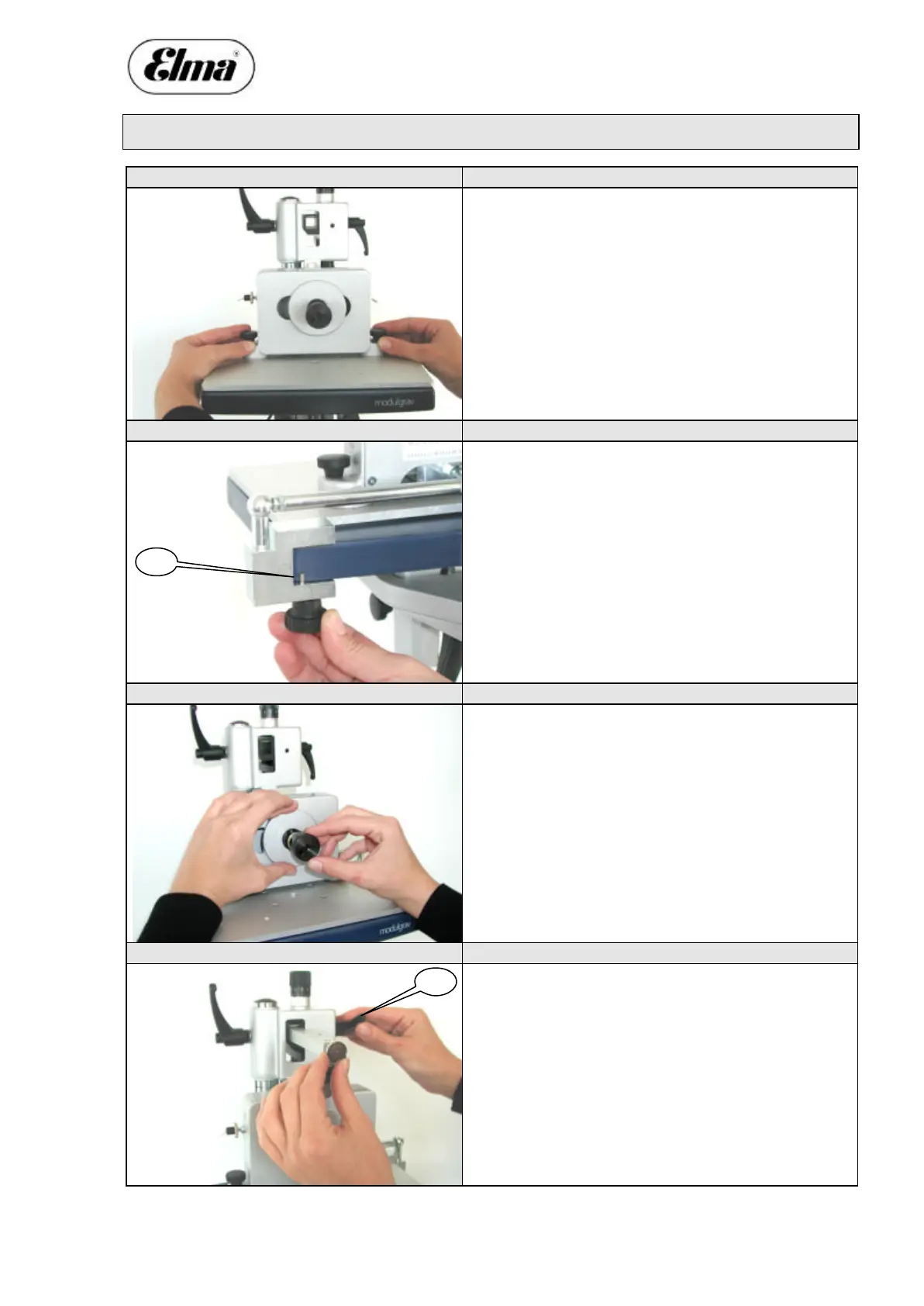

1. step
Mount the module on the work surface of the
Modulgrav.
Tighten the two black fly nuts.
2. step
Tighten the spanner on the side until stop (1) in the
blue sections.
3. step
Put in the ring (knurled screw). Hold the disk while
fixing the ring with the other hand.
4. step
Push in the diamond holder from the front and fix it
(1).
