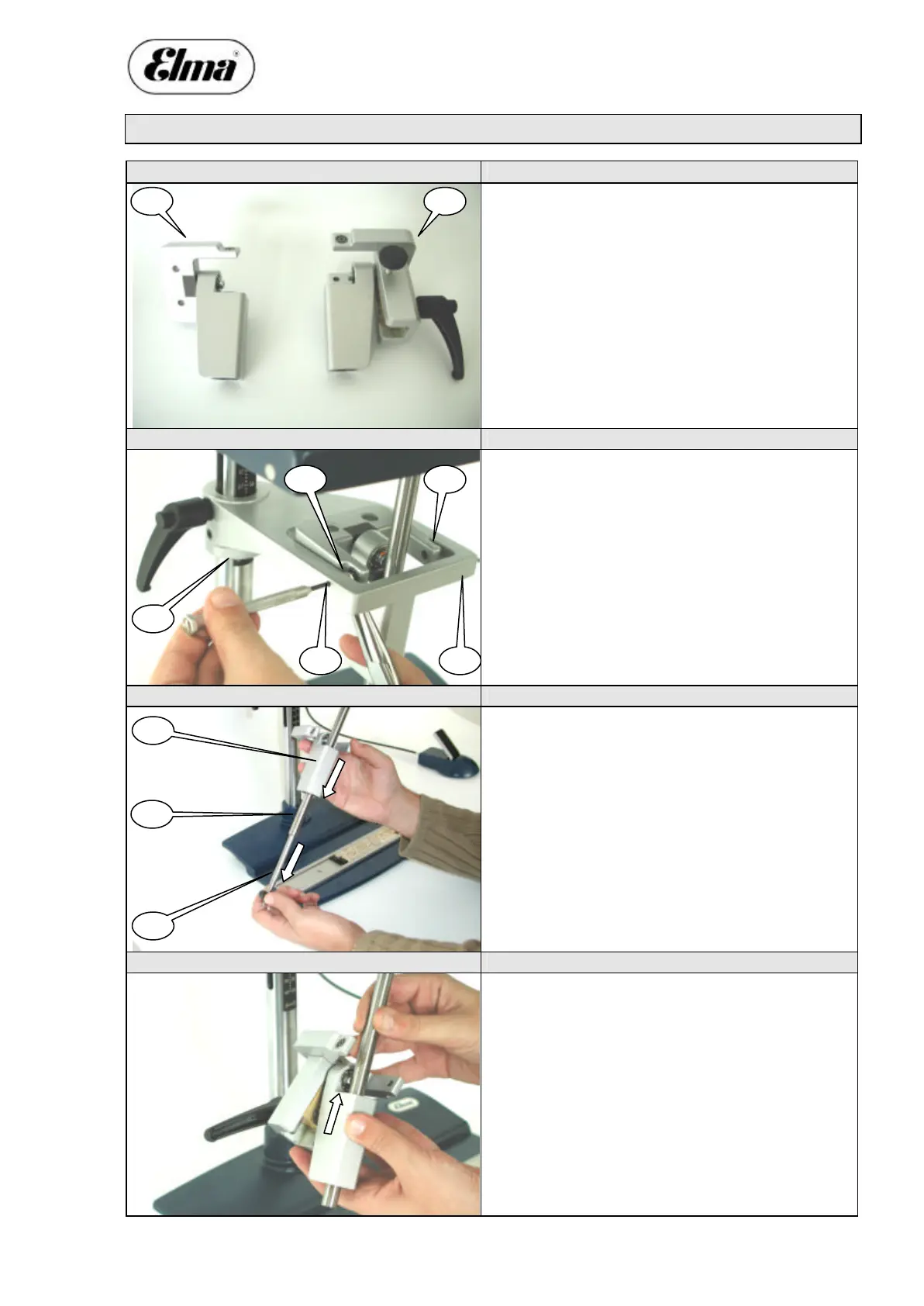

Stretching Device – Mounting and Operating Instructions
Hinged fork without letter stretching
(1).
Hinged fork with letter stretching
(2), stretching device
1. Step
How to remove the hinged fork (without
stretching device):
Move the fork down as far as it will go (1)
Loosen both locknuts (7mm) at the fork
fastening (2).
Use a suitable screw driver to remove the fixing
screws from the hinged fork (3).
2. Step
Move the fork up as far as it will go.
Put the guiding bushing aside (1).
Remove the copying pin from the guiding
bushing (2).
Take the hinged fork off the guiding bushing (3).
3. Step
Slide the stretching device onto the guiding
bushing.
1
2
2
3
3
1
1
2
3
2
