Operation
The EVCCS module does not need any external action while it is in operation. However, the light indicators on the
EVCCS module may give useful information about the equipment's operating status.
Here is a description of the EVCCS light indicators’ possible states:
LED COLOUR STATE DESCRIPTION
Power Green
(turned off) No electric power
(lit continuously)
Electric power OK
Network
communication
Green
(blinks 1x) The EVCCS module is not connected to the
local network
(blinks 2x) The EVCCS module is connected to the local
network
(blinks continuously)
The EVCCS module is connected to the local
network and is correctly communicating with
a EVC30 charging station
Error Red
(turned off) No error
(blinks 1x) Problem with the #1 sensor or unbalanced AC
lines
(blinks 2x) Problem with the #2 sensor or unbalanced AC
lines
(blinks continuously) The measured current is higher than the limit
allowed by the configuration

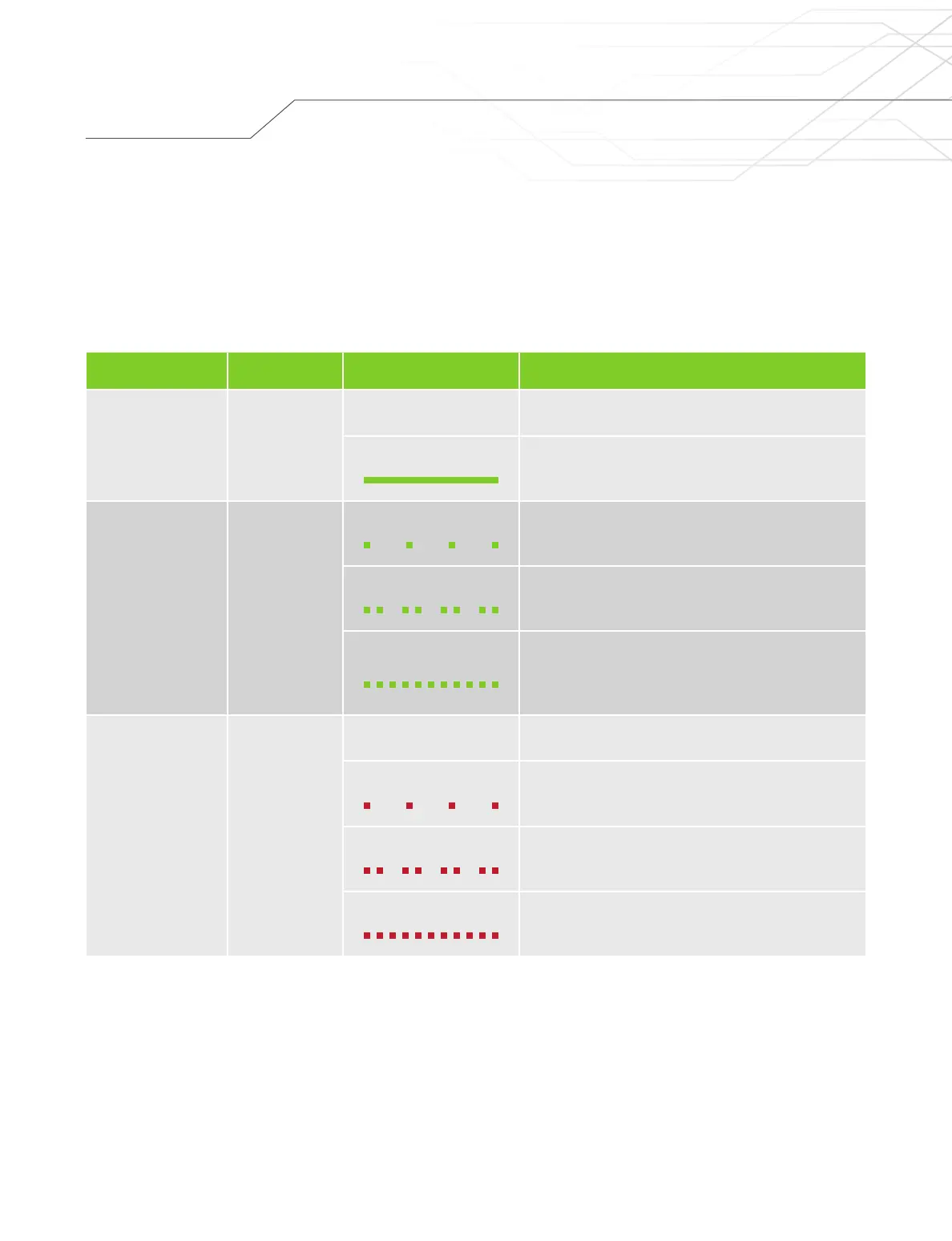

Table1: States of light indicators
